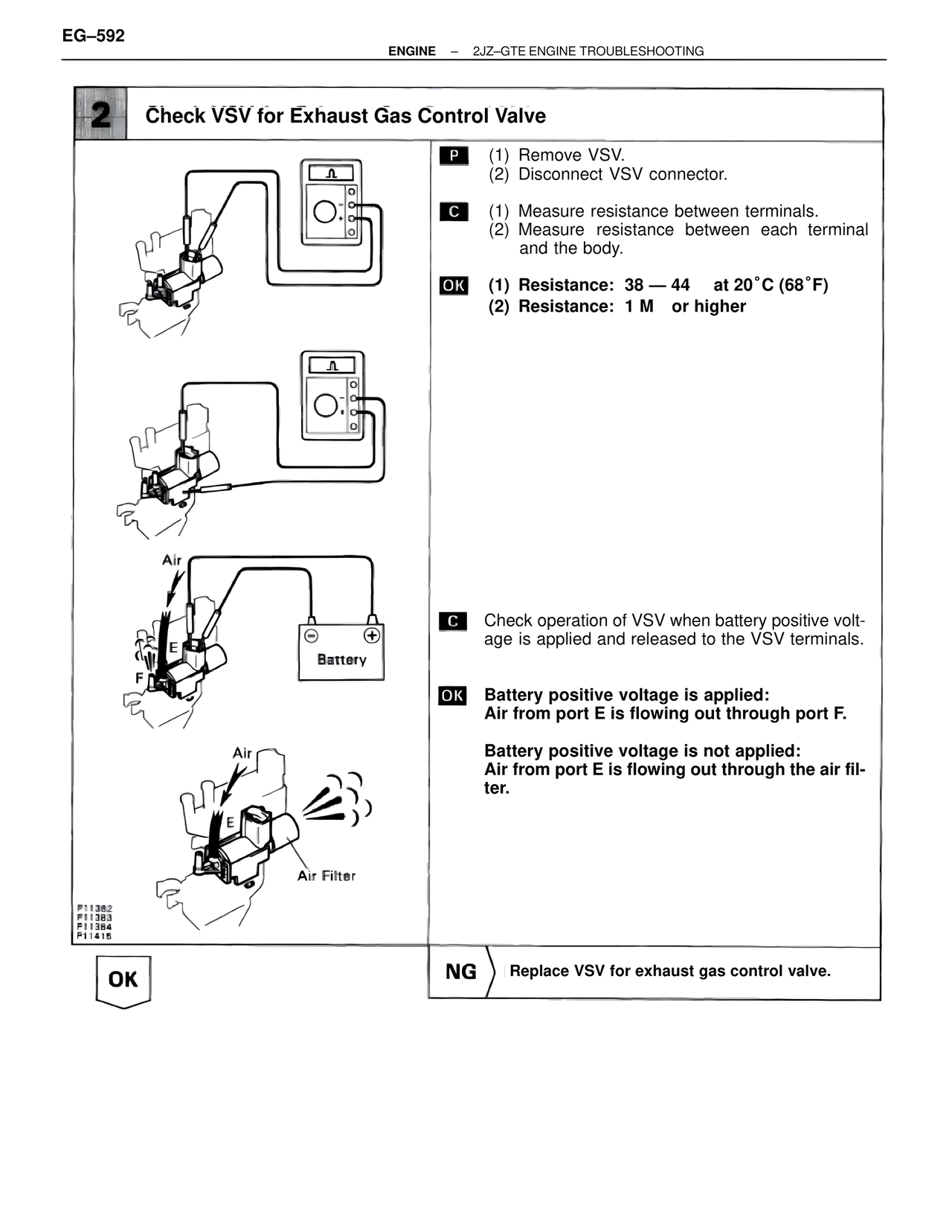

EG–592 ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING 2 Check VSV for Exhaust Gas Control Valve P (1) Remove VSV. (2) Disconnect VSV connector. C (1) Measure resistance between terminals. (2) Measure resistance between each terminal and the body. OK (1) Resistance: 38 — 44 at 20°C (68°F) (2) Resistance: 1 M or higher Air E F Battery C Check operation of VSV when battery positive volt- age is applied and released to the VSV terminals. OK Battery positive voltage is applied: Air from port E is flowing out through port F. Battery positive voltage is not applied: Air from port E is flowing out through the air fil- ter. Air E Air Filter P11382 P11383 P11384 P11415 OK NG Replace VSV for exhaust gas control valve.
