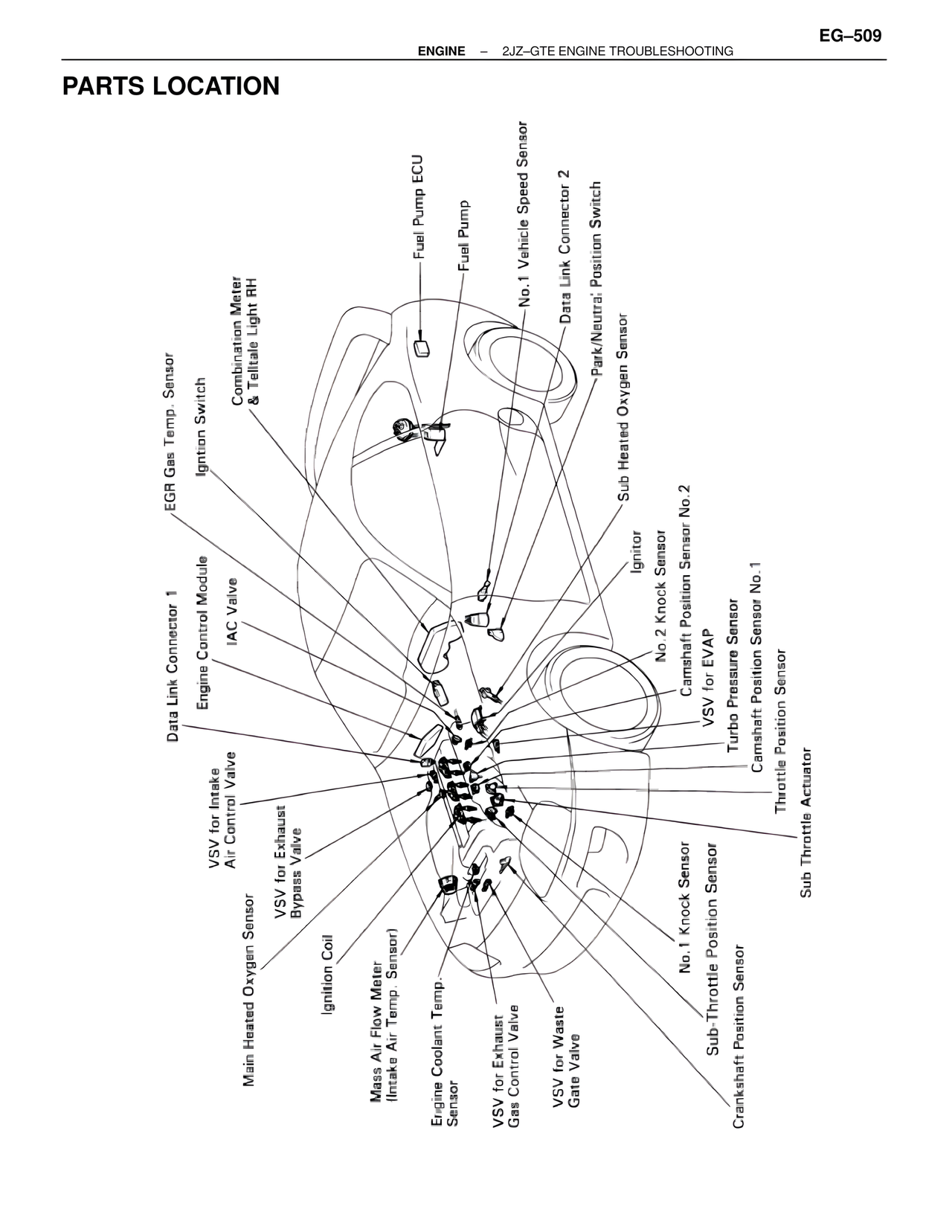

EG-509 ENGINE – 2JZ-GTE ENGINE TROUBLESHOOTING PARTS LOCATION EGR Gas Temp. Sensor Ignition Switch Combination Meter & Telltale Light RH Fuel Pump ECU Fuel Pump No.1 Vehicle Speed Sensor Data Link Connector 2 Park/Neutral Position Switch Sub Heated Oxygen Sensor Ignitor No.2 Knock Sensor Camshaft Position Sensor No.2 VSV for EVAP Turbo Pressure Sensor Camshaft Position Sensor No.1 Throttle Position Sensor Sub Throttle Actuator Crankshaft Position Sensor Sub-Throttle Position Sensor No.1 Knock Sensor VSV for Exhaust Gas Control Valve VSV for Waste Gate Valve Engine Coolant Temp. Sensor Mass Air Flow Meter (Intake Air Temp. Sensor) Ignition Coil VSV for Exhaust Bypass Valve Main Heated Oxygen Sensor VSV for Intake Air Control Valve Data Link Connector 1 Engine Control Module IAC Valve
