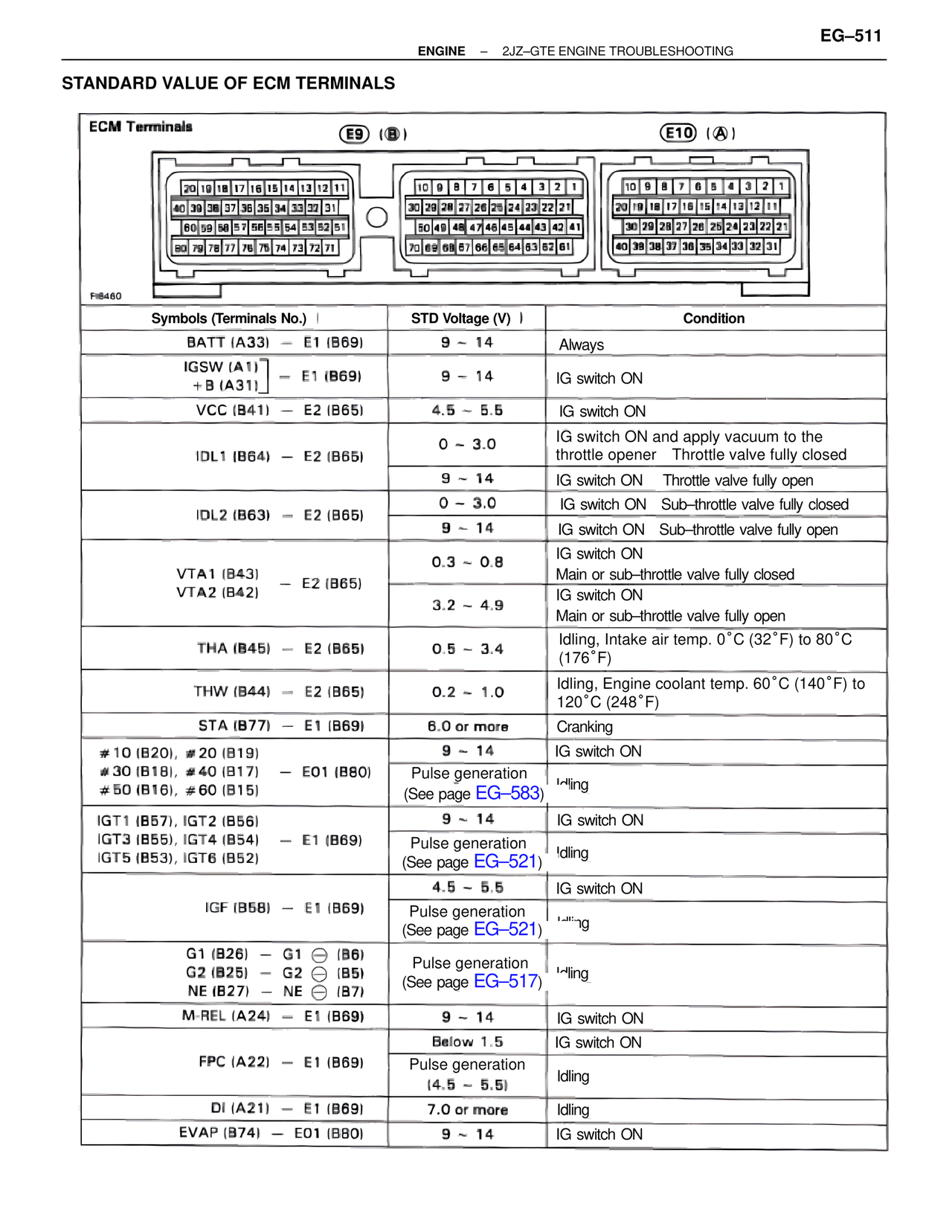

STANDARD VALUE OF ECM TERMINALS ECM Terminals E9 (B) E10 (A) 20 19 18 17 16 15 14 13 12 11 40 39 38 37 36 35 34 33 32 31 60 59 58 57 56 55 54 53 52 51 80 79 78 77 76 75 74 73 72 71 10 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 50 49 48 47 46 45 44 43 42 41 70 69 68 67 66 65 64 63 62 61 10 9 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 12 11 30 29 28 27 26 25 24 23 22 21 40 39 38 37 36 35 34 33 32 31 Fi6460 Symbols (Terminals No.) | STD Voltage (V) | Condition BATT (A33) — E1 (B69) | 9 ~ 14 | Always IGSW (A1) + B (A31) — E1 (B69) | 9 ~ 14 | IG switch ON VCC (B41) — E2 (B65) | 4.5 ~ 5.5 | IG switch ON IDL1 (B64) — E2 (B65) | 0 ~ 3.0 | IG switch ON and apply vacuum to the throttle opener Throttle valve fully closed | 9 ~ 14 | IG switch ON Throttle valve fully open IDL2 (B63) — E2 (B65) | 0 ~ 3.0 | IG switch ON Sub-throttle valve fully closed | 9 ~ 14 | IG switch ON Sub-throttle valve fully open VTA1 (B43) VTA2 (B42) — E2 (B65) | 0.3 ~ 0.8 | IG switch ON Main or sub-throttle valve fully closed | 3.2 ~ 4.9 | IG switch ON Main or sub-throttle valve fully open THA (B45) — E2 (B65) | 0.5 ~ 3.4 | Idling, Intake air temp. 0°C (32°F) to 80°C (176°F) THW (B44) — E2 (B65) | 0.2 ~ 1.0 | Idling, Engine coolant temp. 60°C (140°F) to 120°C (248°F) STA (B77) — E1 (B69) | 6.0 or more | Cranking #10 (B20), #20 (B19) #30 (B18), #40 (B17) — E01 (B80) #50 (B16), #60 (B15) | 9 ~ 14 | IG switch ON | Pulse generation (See page EG-583) | Idling IGT1 (B57), IGT2 (B56) IGT3 (B55), IGT4 (B54) — E1 (B69) IGT5 (B53), IGT6 (B52) | 9 ~ 14 | IG switch ON | Pulse generation (See page EG-521) | Idling IGF (B58) — E1 (B69) | 4.5 ~ 5.5 | IG switch ON | Pulse generation (See page EG-521) | Idling G1 (B26) — G1 (-) (B6) G2 (B25) — G2 (-) (B5) NE (B27) — NE (-) (B7) | Pulse generation (See page EG-517) | Idling M-REL (A24) — E1 (B69) | 9 ~ 14 | IG switch ON FPC (A22) — E1 (B69) | Below 1.5 | IG switch ON | Pulse generation (4.5 ~ 5.5) | Idling DI (A21) — E1 (B69) | 7.0 or more | Idling EVAP (B74) — E01 (B80) | 9 ~ 14 | IG switch ON
