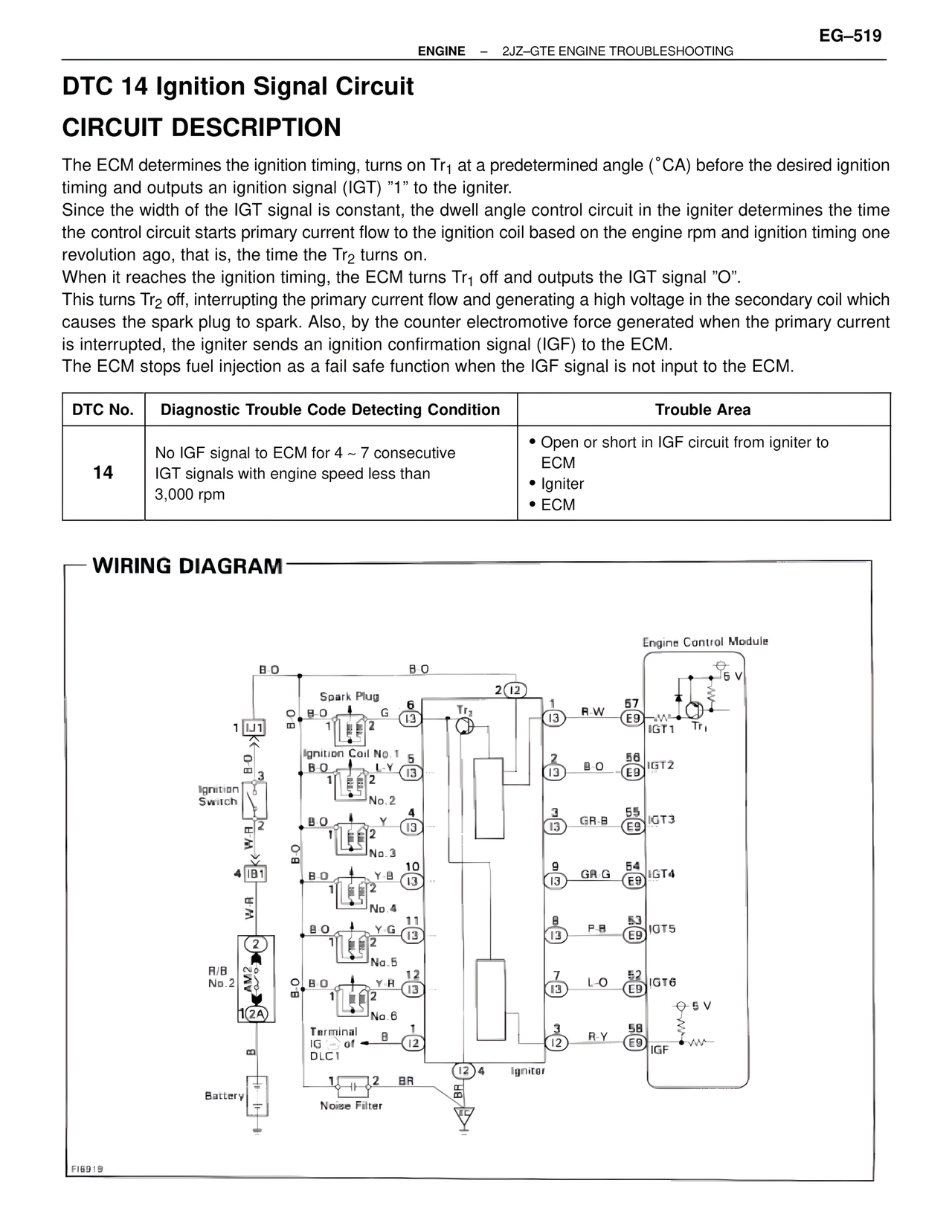

DTC 14 Ignition Signal Circuit
CIRCUIT DESCRIPTION
The ECM determines the ignition timing, turns on Tr1 at a predetermined angle (°CA) before the desired ignition timing and outputs an ignition signal (IGT) "1" to the igniter.
Since the width of the IGT signal is constant, the dwell angle control circuit in the igniter determines the time the control circuit starts primary current flow to the ignition coil based on the engine rpm and ignition timing one revolution ago, that is, the time the Tr2 turns on.
When it reaches the ignition timing, the ECM turns Tr1 off and outputs the IGT signal "O".
This turns Tr2 off, interrupting the primary current flow and generating a high voltage in the secondary coil which causes the spark plug to spark. Also, by the counter electromotive force generated when the primary current is interrupted, the igniter sends an ignition confirmation signal (IGF) to the ECM.
The ECM stops fuel injection as a fail safe function when the IGF signal is not input to the ECM.
DTC No. | Diagnostic Trouble Code Detecting Condition | Trouble Area
14 | No IGF signal to ECM for 4 ~ 7 consecutive IGT signals with engine speed less than 3,000 rpm | • Open or short in IGF circuit from igniter to ECM
• Igniter
• ECM
WIRING DIAGRAM
Engine Control Module
+5V
B-O
B-O
2 (I2)
Spark Plug
6
1
R-W
57
1 IJ1
G
Tr2
IGT1
Tr1
I3
E9
Ignition Coil No.1
B-O
L-Y
5
2
B-O
56
3
IGT2
No.2
I3
E9
Ignition
Switch
B-O
Y
4
3
GR-B
55
IGT3
No.3
I3
E9
4 IB1
B-O
Y-B
10
9
GR-G
54
IGT4
No.4
I3
E9
W-R
B-O
Y-G
11
8
P-B
53
IGT5
No.5
I3
E9
2
R/B
No.2
B-O
Y-R
12
7
L-O
52
IGT6
No.6
I3
E9
AM2
+5V
1 2A
Terminal
3
R-Y
58
IG (-) of
B
(I2)
IGF
I2
E9
DLC1
(I2) 4
Igniter
1
2
BR
Battery
Noise Filter
BR
FI6919
