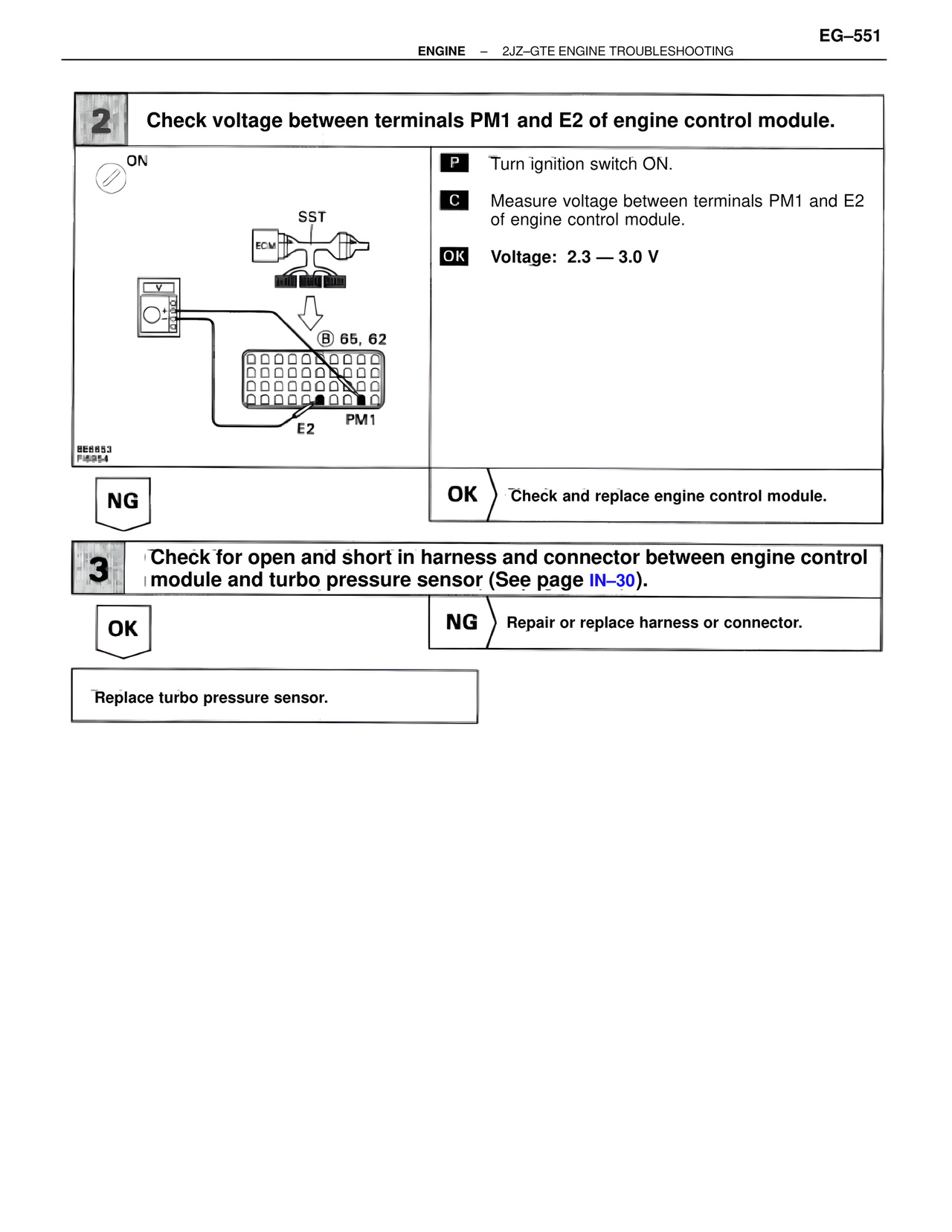

EG-551 ENGINE — 2JZ-GTE ENGINE TROUBLESHOOTING 2 Check voltage between terminals PM1 and E2 of engine control module. ON SST ECM B 65, 62 E2 PM1 BE8653 F46954 P Turn ignition switch ON. C Measure voltage between terminals PM1 and E2 of engine control module. OK Voltage: 2.3 — 3.0 V NG OK Check and replace engine control module. 3 Check for open and short in harness and connector between engine control module and turbo pressure sensor (See page IN–30). OK NG Repair or replace harness or connector. Replace turbo pressure sensor.
