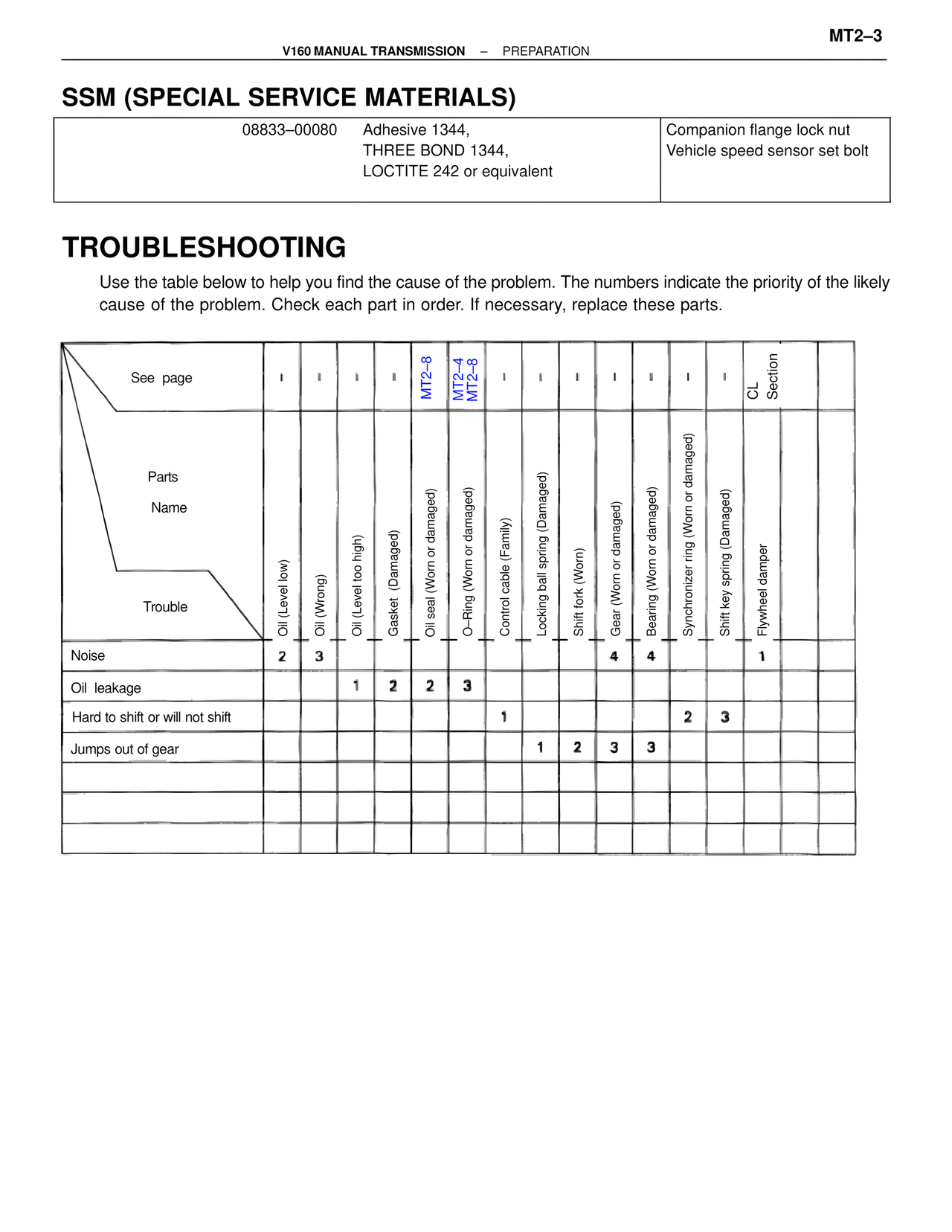

MT2–3 V160 MANUAL TRANSMISSION — PREPARATION SSM (SPECIAL SERVICE MATERIALS) 08833–00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Companion flange lock nut Vehicle speed sensor set bolt TROUBLESHOOTING Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts. See page Parts Name Trouble Oil (Level low) Oil (Wrong) Oil (Level too high) Gasket (Damaged) Oil seal (Worn or damaged) O-Ring (Worn or damaged) Control cable (Family) Locking ball spring (Damaged) Shift fork (Worn) Gear (Worn or damaged) Bearing (Worn or damaged) Synchronizer ring (Worn or damaged) Shift key spring (Damaged) Flywheel damper See page: MT2–8 MT2–4 MT2–8 CL Section Noise 2 3 4 4 1 Oil leakage 1 2 2 3 Hard to shift or will not shift 1 2 3 Jumps out of gear 1 2 3 3
