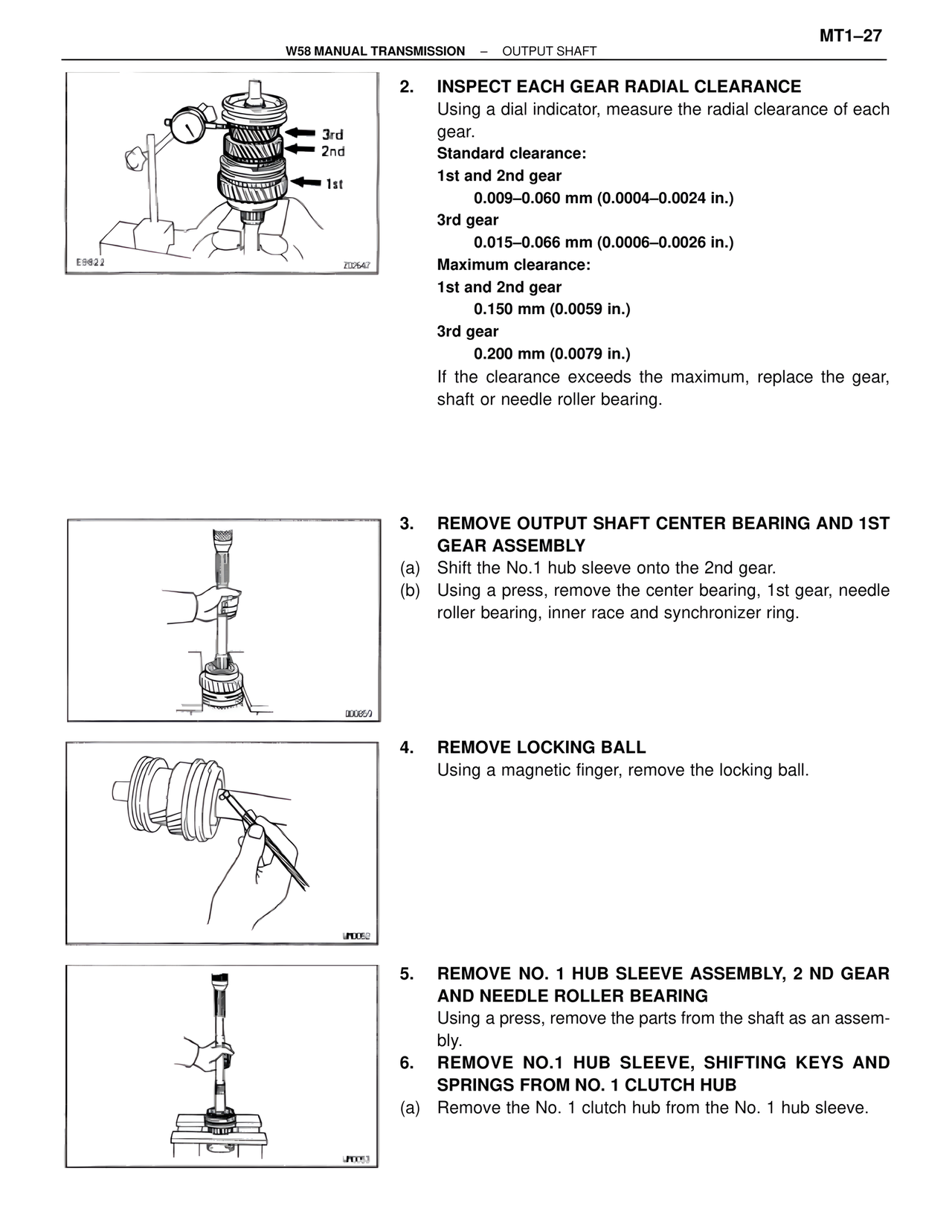

MT1–27
W58 MANUAL TRANSMISSION – OUTPUT SHAFT
2. INSPECT EACH GEAR RADIAL CLEARANCE
Using a dial indicator, measure the radial clearance of each gear.
Standard clearance:
1st and 2nd gear
0.009–0.060 mm (0.0004–0.0024 in.)
3rd gear
0.015–0.066 mm (0.0006–0.0026 in.)
Maximum clearance:
1st and 2nd gear
0.150 mm (0.0059 in.)
3rd gear
0.200 mm (0.0079 in.)
If the clearance exceeds the maximum, replace the gear, shaft or needle roller bearing.
E9822
3rd
2nd
1st
Z00647
3. REMOVE OUTPUT SHAFT CENTER BEARING AND 1ST GEAR ASSEMBLY
(a) Shift the No.1 hub sleeve onto the 2nd gear.
(b) Using a press, remove the center bearing, 1st gear, needle roller bearing, inner race and synchronizer ring.
000859
4. REMOVE LOCKING BALL
Using a magnetic finger, remove the locking ball.
JP0052
5. REMOVE NO. 1 HUB SLEEVE ASSEMBLY, 2ND GEAR AND NEEDLE ROLLER BEARING
Using a press, remove the parts from the shaft as an assembly.
6. REMOVE NO.1 HUB SLEEVE, SHIFTING KEYS AND SPRINGS FROM NO. 1 CLUTCH HUB
(a) Remove the No. 1 clutch hub from the No. 1 hub sleeve.
JP0053
