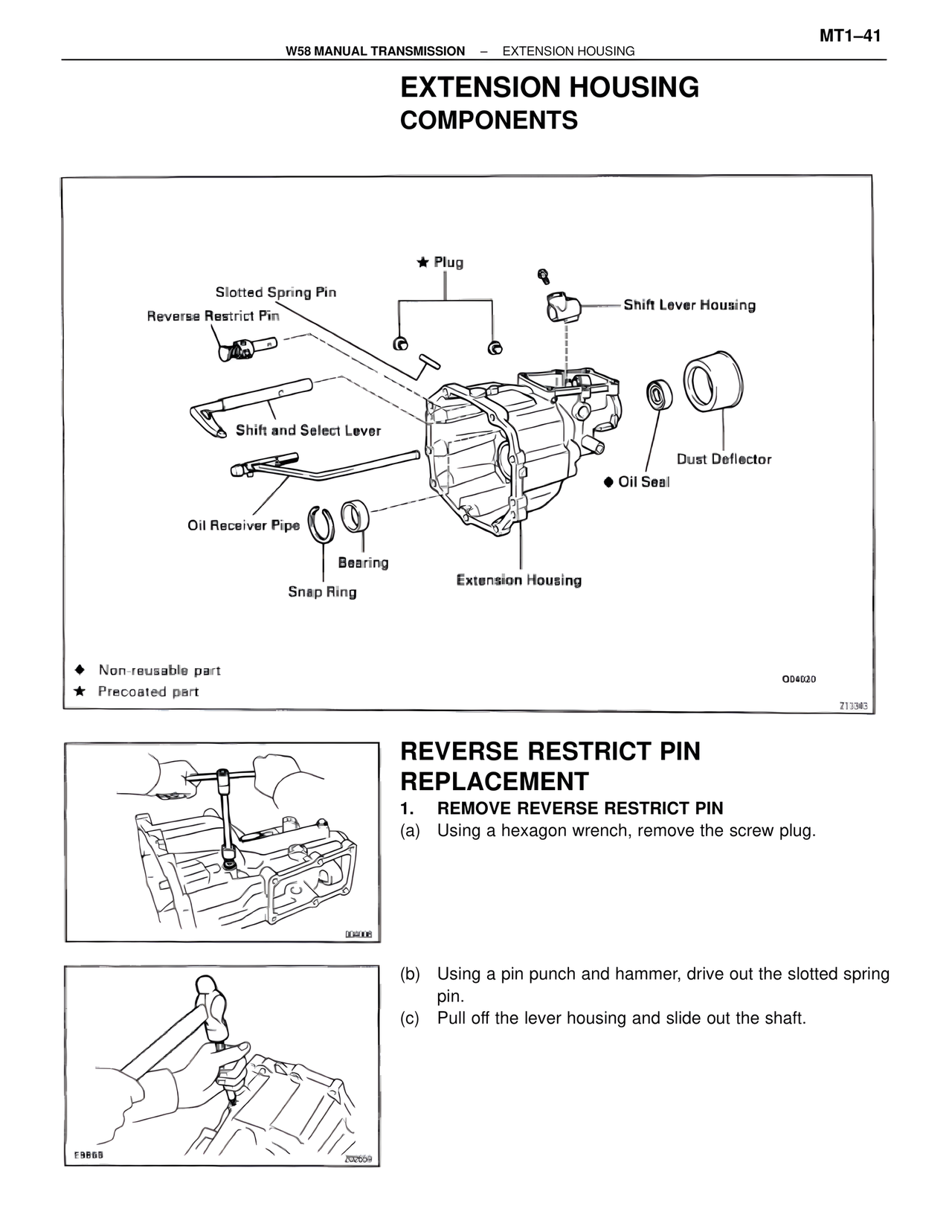

MT1-41 W58 MANUAL TRANSMISSION – EXTENSION HOUSING EXTENSION HOUSING COMPONENTS ★ Plug Slotted Spring Pin Shift Lever Housing Reverse Restrict Pin Shift and Select Lever Dust Deflector ♦ Oil Seal Oil Receiver Pipe Bearing Snap Ring Extension Housing ♦ Non-reusable part ★ Precoated part O04020 Z13343 REVERSE RESTRICT PIN REPLACEMENT 1. REMOVE REVERSE RESTRICT PIN (a) Using a hexagon wrench, remove the screw plug. O04008 (b) Using a pin punch and hammer, drive out the slotted spring pin. (c) Pull off the lever housing and slide out the shaft. E9868 200659
