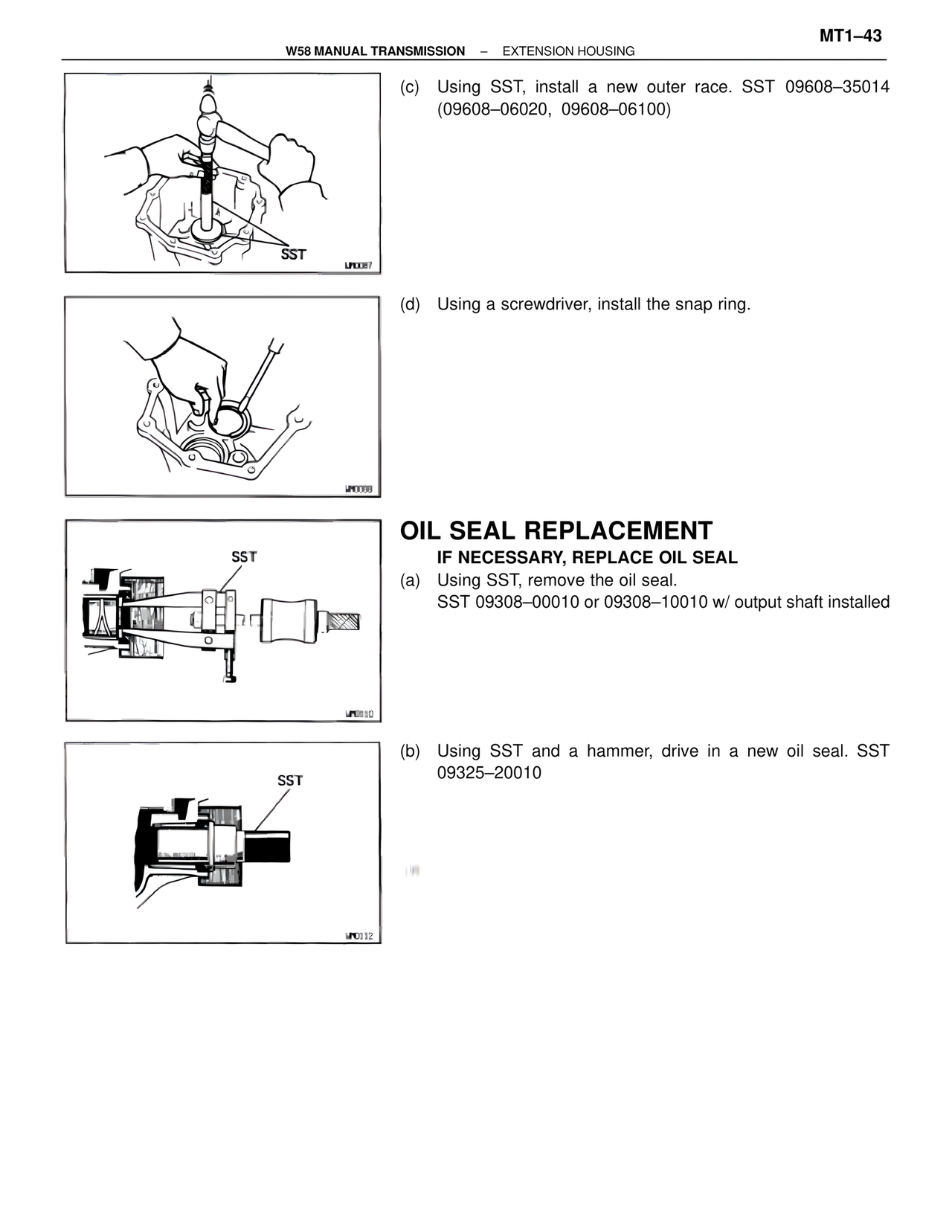

MT1-43
W58 MANUAL TRANSMISSION – EXTENSION HOUSING
(c) Using SST, install a new outer race. SST 09608-35014
(09608-06020, 09608-06100)
(d) Using a screwdriver, install the snap ring.
OIL SEAL REPLACEMENT
IF NECESSARY, REPLACE OIL SEAL
(a) Using SST, remove the oil seal.
SST 09308-00010 or 09308-10010 w/ output shaft installed
(b) Using SST and a hammer, drive in a new oil seal. SST
09325-20010
SST
SST
SST
