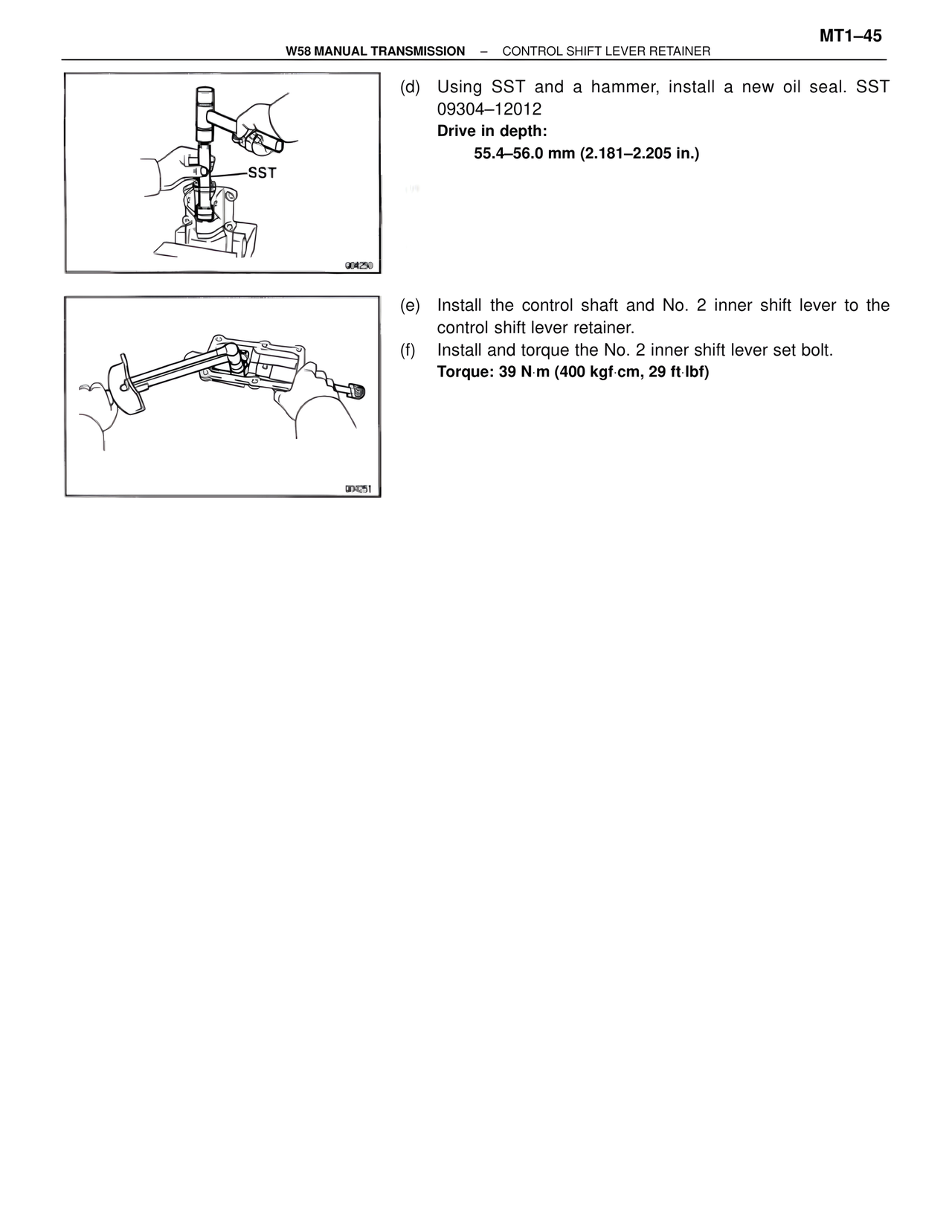

W58 MANUAL TRANSMISSION – CONTROL SHIFT LEVER RETAINER
SST
004250
(d) Using SST and a hammer, install a new oil seal. SST 09304–12012
Drive in depth:
55.4–56.0 mm (2.181–2.205 in.)
004251
(e) Install the control shaft and No. 2 inner shift lever to the control shift lever retainer.
(f) Install and torque the No. 2 inner shift lever set bolt.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
MT1–45
