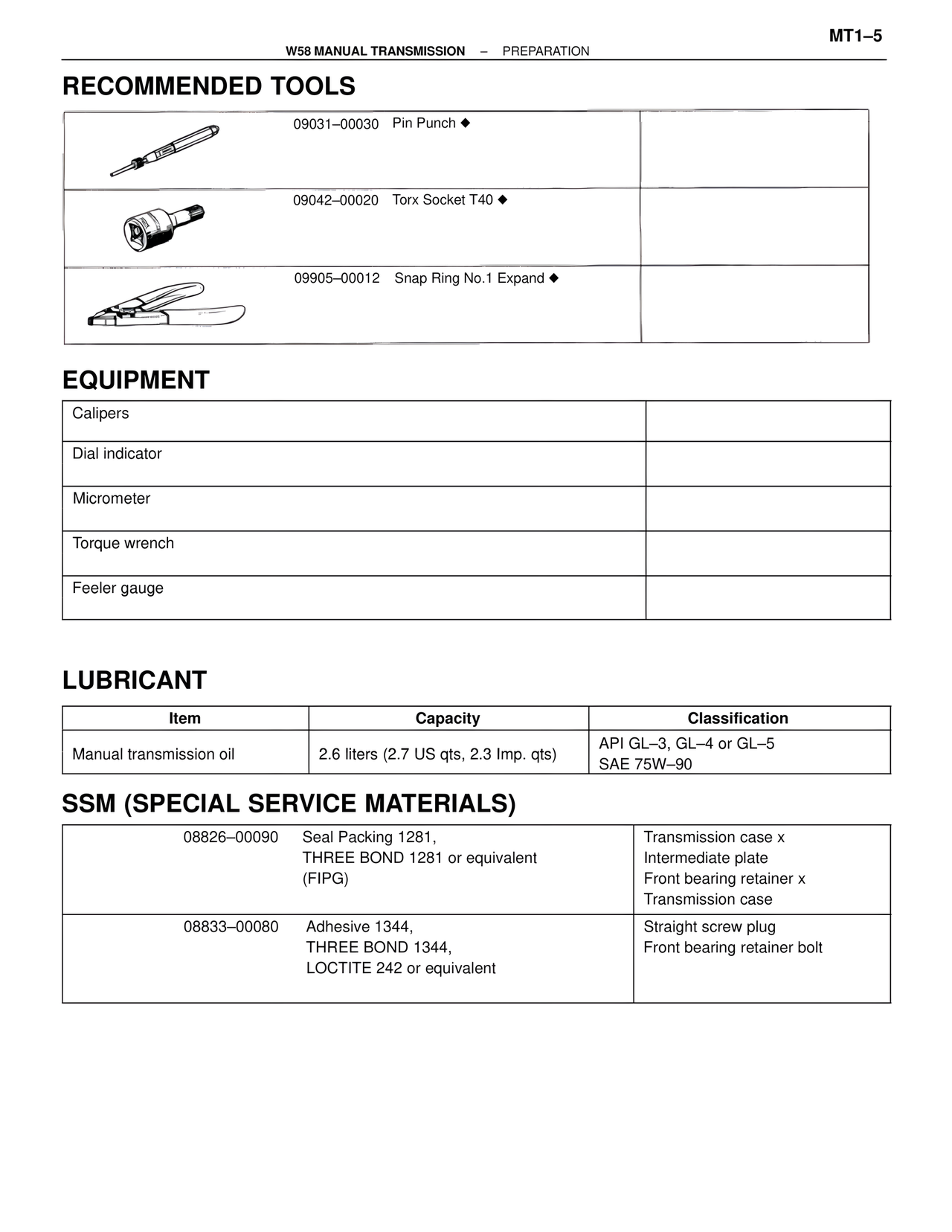

RECOMMENDED TOOLS 09031–00030 Pin Punch ◆ 09042–00020 Torx Socket T40 ◆ 09905–00012 Snap Ring No.1 Expand ◆ EQUIPMENT Calipers Dial indicator Micrometer Torque wrench Feeler gauge LUBRICANT Item Capacity Classification Manual transmission oil 2.6 liters (2.7 US qts, 2.3 Imp. qts) API GL–3, GL–4 or GL–5 SAE 75W–90 SSM (SPECIAL SERVICE MATERIALS) 08826–00090 Seal Packing 1281, THREE BOND 1281 or equivalent (FIPG) Transmission case x Intermediate plate Front bearing retainer x Transmission case 08833–00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Straight screw plug Front bearing retainer bolt
