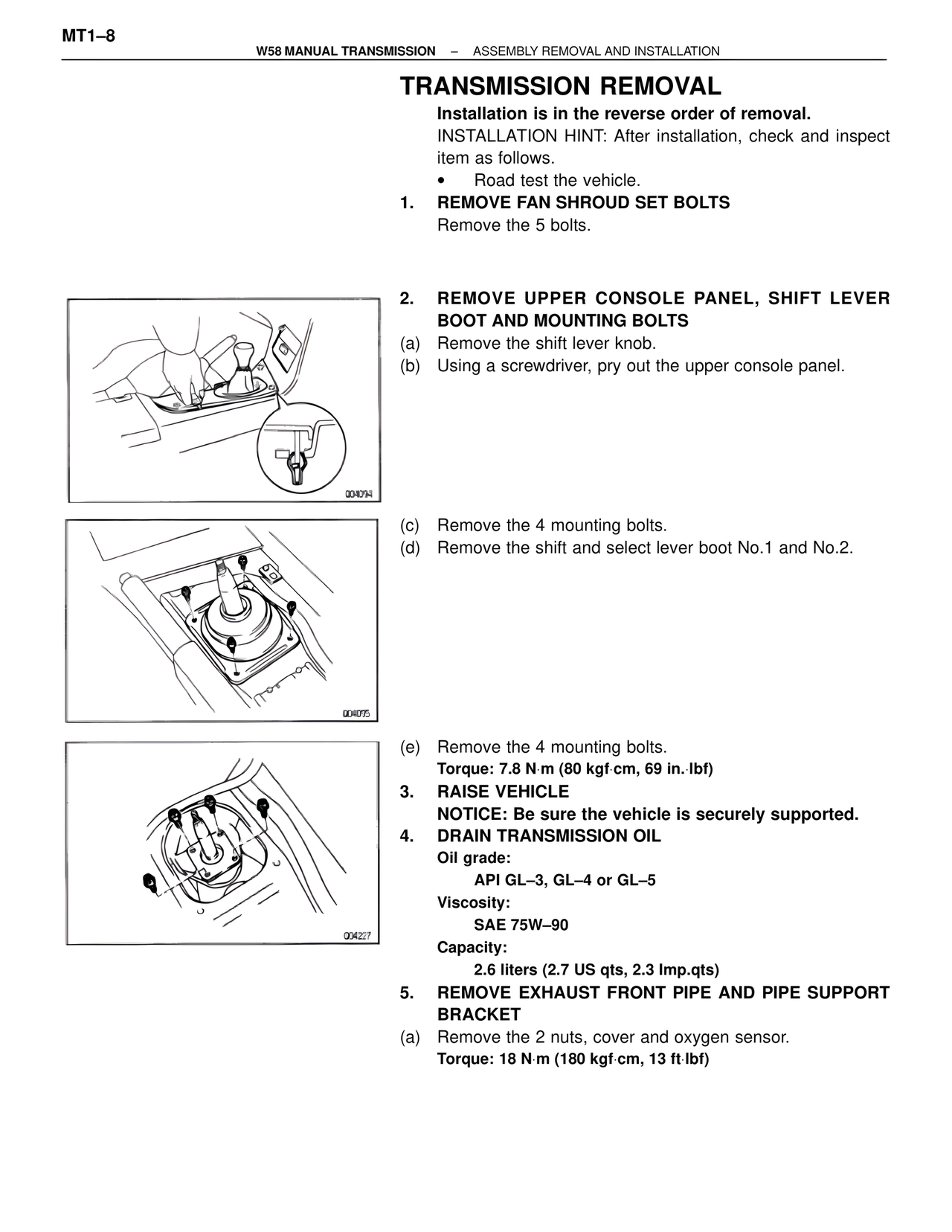

MT1–8 W58 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION TRANSMISSION REMOVAL Installation is in the reverse order of removal. INSTALLATION HINT: After installation, check and inspect item as follows. • Road test the vehicle. 1. REMOVE FAN SHROUD SET BOLTS Remove the 5 bolts. 2. REMOVE UPPER CONSOLE PANEL, SHIFT LEVER BOOT AND MOUNTING BOLTS (a) Remove the shift lever knob. (b) Using a screwdriver, pry out the upper console panel. 004094 (c) Remove the 4 mounting bolts. (d) Remove the shift and select lever boot No.1 and No.2. 004095 (e) Remove the 4 mounting bolts. Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf) 3. RAISE VEHICLE NOTICE: Be sure the vehicle is securely supported. 4. DRAIN TRANSMISSION OIL Oil grade: API GL–3, GL–4 or GL–5 Viscosity: SAE 75W–90 Capacity: 2.6 liters (2.7 US qts, 2.3 Imp.qts) 5. REMOVE EXHAUST FRONT PIPE AND PIPE SUPPORT BRACKET (a) Remove the 2 nuts, cover and oxygen sensor. Torque: 18 N·m (180 kgf·cm, 13 ft·lbf) 004227
