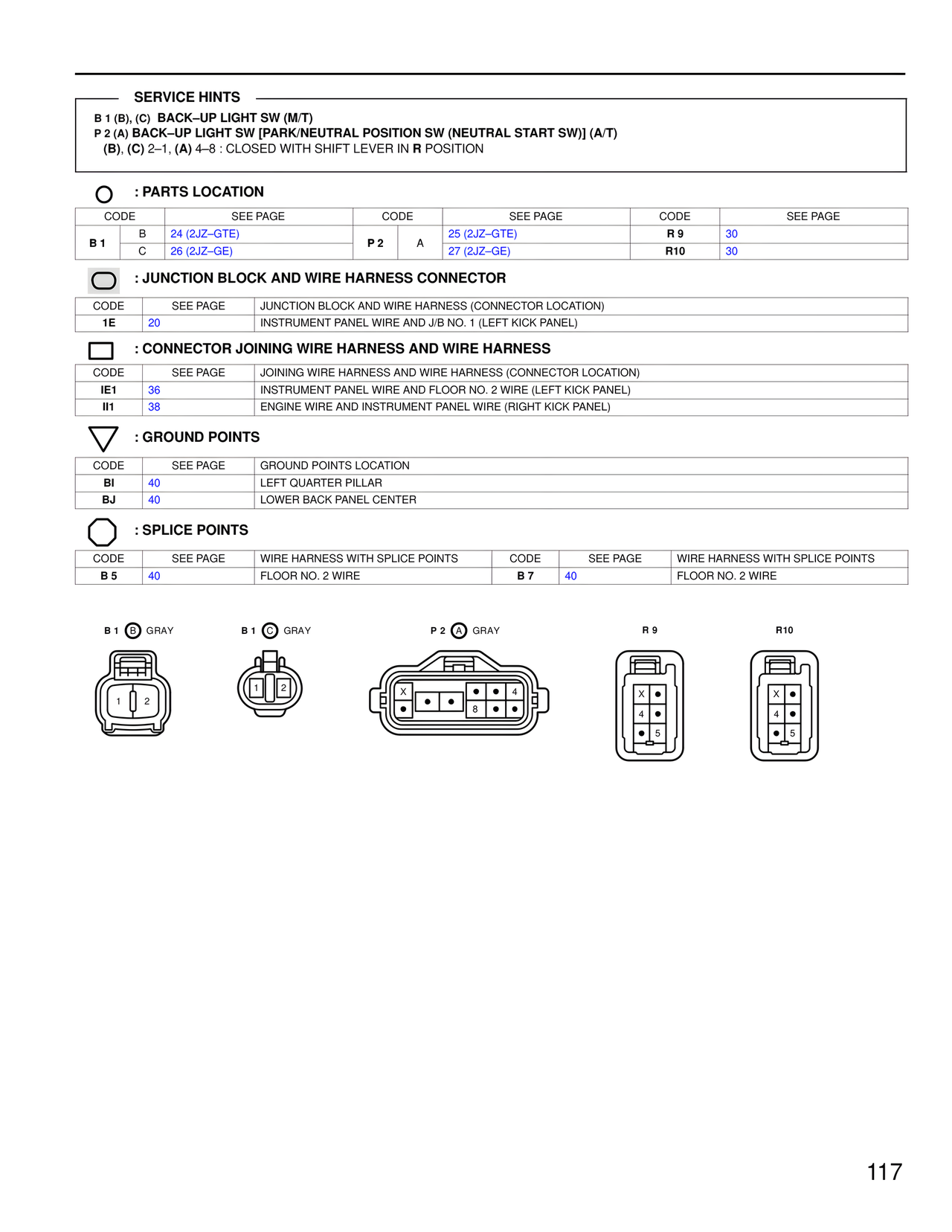

SERVICE HINTS B 1 (B), (C) BACK–UP LIGHT SW (M/T) P 2 (A) BACK–UP LIGHT SW [PARK/NEUTRAL POSITION SW (NEUTRAL START SW)] (A/T) (B), (C) 2–1, (A) 4–8 : CLOSED WITH SHIFT LEVER IN R POSITION : PARTS LOCATION CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE B 1 B 24 (2JZ–GTE) P 2 A 25 (2JZ–GTE) R 9 30 C 26 (2JZ–GE) 27 (2JZ–GE) R10 30 : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1E 20 INSTRUMENT PANEL WIRE AND J/B NO. 1 (LEFT KICK PANEL) : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) IE1 36 INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL) I11 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) : GROUND POINTS CODE SEE PAGE GROUND POINTS LOCATION BI 40 LEFT QUARTER PILLAR BJ 40 LOWER BACK PANEL CENTER : SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS B 5 40 FLOOR NO. 2 WIRE B 7 40 FLOOR NO. 2 WIRE B 1 B GRAY B 1 C GRAY P 2 A GRAY R 9 R10 117
