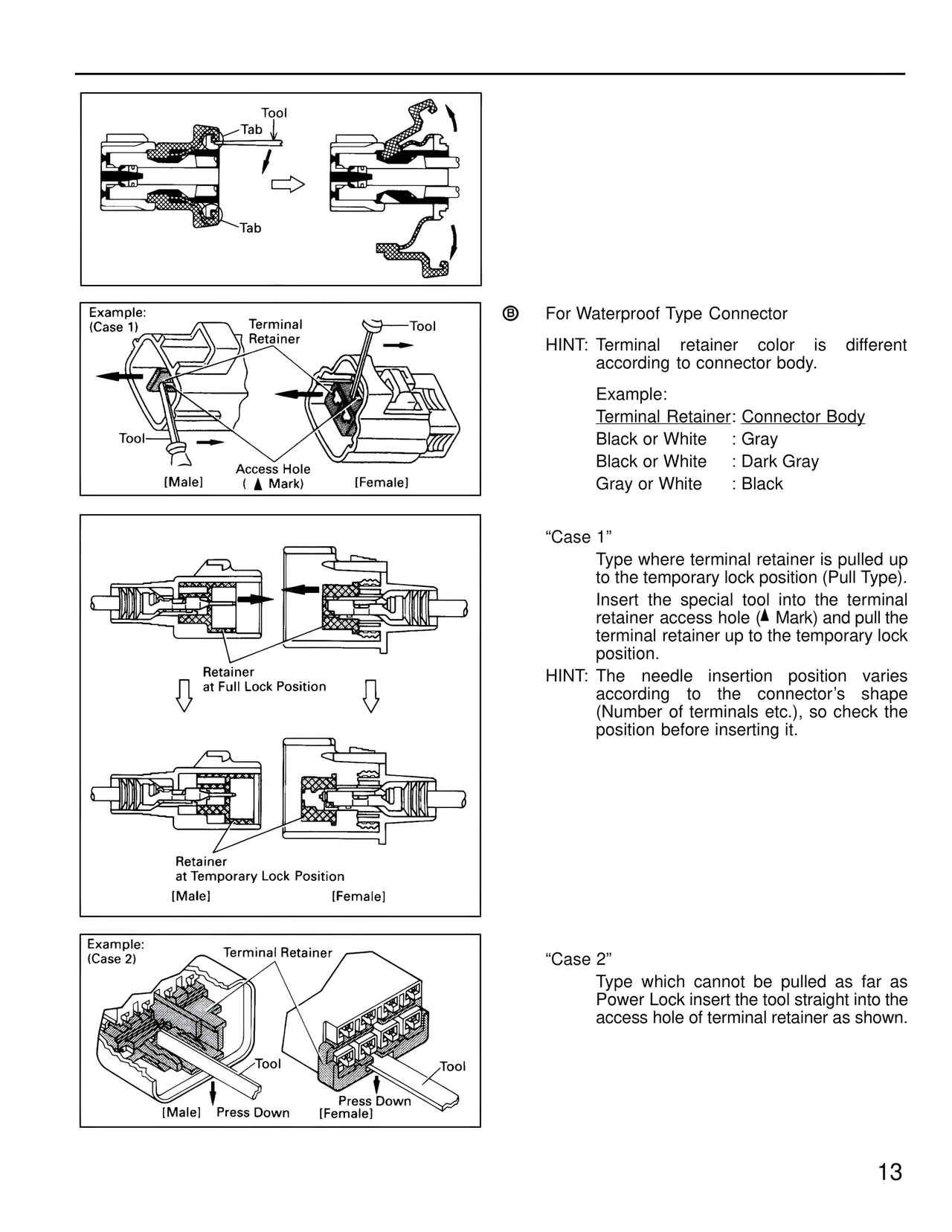

Tool Tab Tab Example: (Case 1) Terminal Retainer Tool Tool Access Hole ( ▲ Mark) [Male] [Female] Retainer at Full Lock Position Retainer at Temporary Lock Position [Male] [Female] Example: (Case 2) Terminal Retainer Tool Tool [Male] Press Down Press Down [Female] ⓑ For Waterproof Type Connector HINT: Terminal retainer color is different according to connector body. Example: Terminal Retainer: Connector Body Black or White : Gray Black or White : Dark Gray Gray or White : Black "Case 1" Type where terminal retainer is pulled up to the temporary lock position (Pull Type). Insert the special tool into the terminal retainer access hole (▲ Mark) and pull the terminal retainer up to the temporary lock position. HINT: The needle insertion position varies according to the connector's shape (Number of terminals etc.), so check the position before inserting it. "Case 2" Type which cannot be pulled as far as Power Lock insert the tool straight into the access hole of terminal retainer as shown. 13
