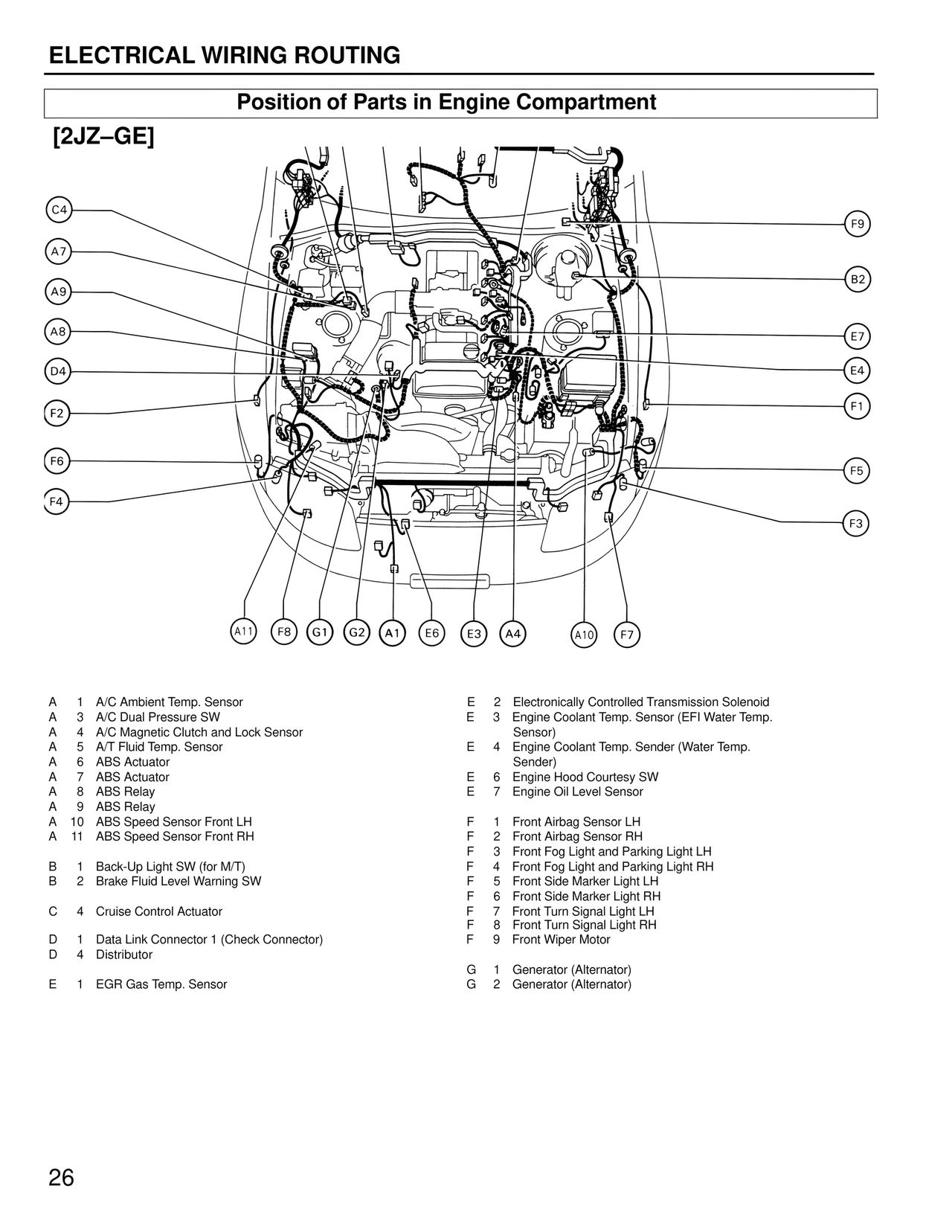

ELECTRICAL WIRING ROUTING Position of Parts in Engine Compartment [2JZ–GE] C4 A7 A9 A8 D4 F2 F6 F4 A11 F8 G1 G2 A1 E6 E3 A4 A10 F7 F9 B2 E7 E4 F1 F5 F3 A 1 A/C Ambient Temp. Sensor A 3 A/C Dual Pressure SW A 4 A/C Magnetic Clutch and Lock Sensor A 5 A/T Fluid Temp. Sensor A 6 ABS Actuator A 7 ABS Actuator A 8 ABS Relay A 9 ABS Relay A 10 ABS Speed Sensor Front LH A 11 ABS Speed Sensor Front RH B 1 Back-Up Light SW (for M/T) B 2 Brake Fluid Level Warning SW C 4 Cruise Control Actuator D 1 Data Link Connector 1 (Check Connector) D 4 Distributor E 1 EGR Gas Temp. Sensor E 2 Electronically Controlled Transmission Solenoid E 3 Engine Coolant Temp. Sensor (EFI Water Temp. Sensor) E 4 Engine Coolant Temp. Sender (Water Temp. Sender) E 6 Engine Hood Courtesy SW E 7 Engine Oil Level Sensor F 1 Front Airbag Sensor LH F 2 Front Airbag Sensor RH F 3 Front Fog Light and Parking Light LH F 4 Front Fog Light and Parking Light RH F 5 Front Side Marker Light LH F 6 Front Side Marker Light RH F 7 Front Turn Signal Light LH F 8 Front Turn Signal Light RH F 9 Front Wiper Motor G 1 Generator (Alternator) G 2 Generator (Alternator) 26
