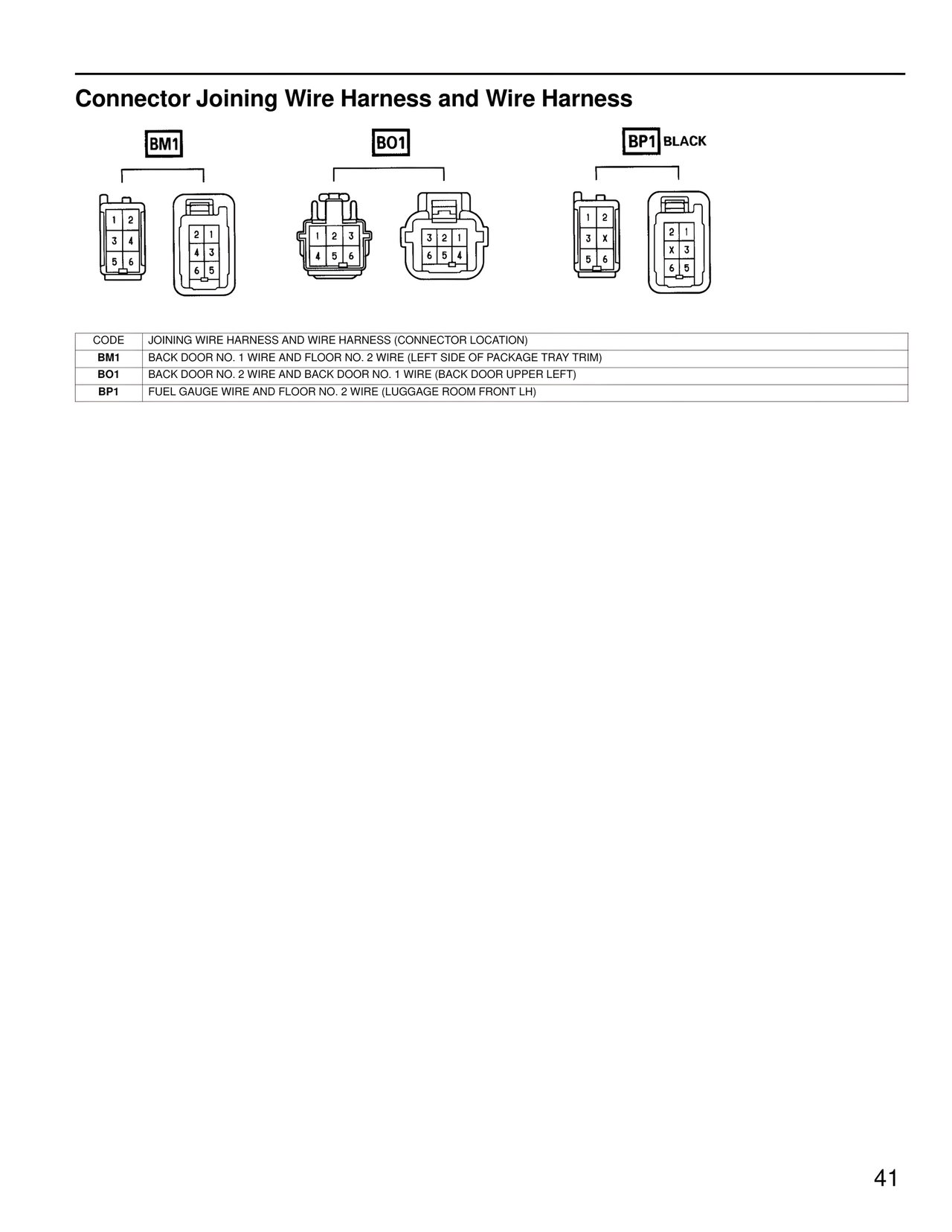

Connector Joining Wire Harness and Wire Harness BM1 BO1 BP1 BLACK 1 2 3 4 5 6 2 1 4 3 6 5 1 2 3 4 5 6 3 2 1 6 5 4 1 2 3 X 5 6 2 1 X 3 6 5 CODE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) BM1 BACK DOOR NO. 1 WIRE AND FLOOR NO. 2 WIRE (LEFT SIDE OF PACKAGE TRAY TRIM) BO1 BACK DOOR NO. 2 WIRE AND BACK DOOR NO. 1 WIRE (BACK DOOR UPPER LEFT) BP1 FUEL GAUGE WIRE AND FLOOR NO. 2 WIRE (LUGGAGE ROOM FRONT LH) 41
