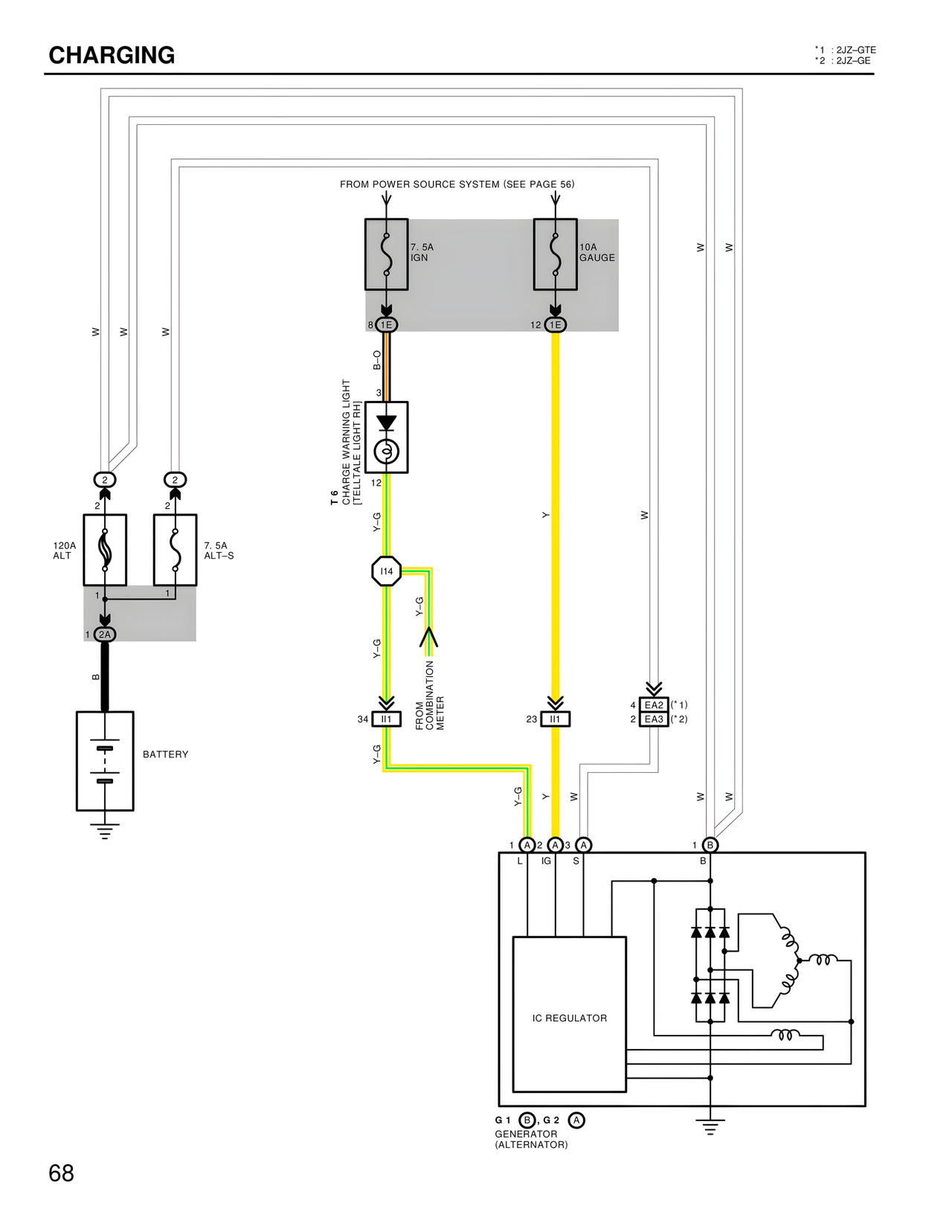

CHARGING *1 : 2JZ-GTE *2 : 2JZ-GE FROM POWER SOURCE SYSTEM (SEE PAGE 56) 7.5A IGN 10A GAUGE 8 1E 12 1E B-O CHARGE WARNING LIGHT [TELLTALE LIGHT RH] T 6 12 Y-G Y W I14 Y-G Y-G FROM COMBINATION METER 34 II1 23 II1 4 EA2 (*1) 2 EA3 (*2) Y-G Y W W W 1 A 2 A 3 A 1 B L IG S B IC REGULATOR G1 B, G2 A GENERATOR (ALTERNATOR) 2 120A ALT 2 7.5A ALT-S 1 1 1 2A B BATTERY W W W W W 68
