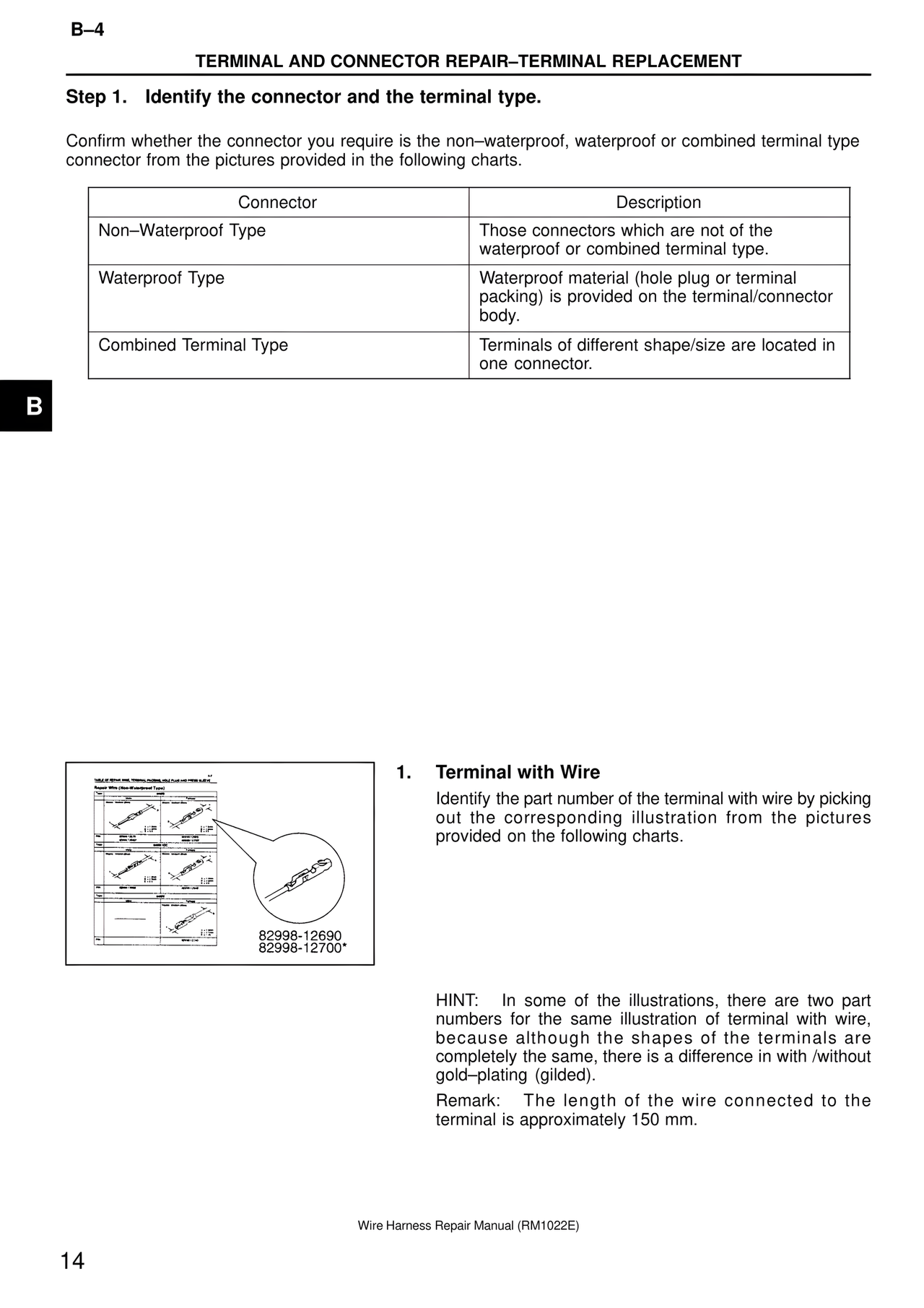

B–4
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Step 1. Identify the connector and the terminal type.
Confirm whether the connector you require is the non–waterproof, waterproof or combined terminal type connector from the pictures provided in the following charts.
Connector | Description
Non–Waterproof Type | Those connectors which are not of the waterproof or combined terminal type.
Waterproof Type | Waterproof material (hole plug or terminal packing) is provided on the terminal/connector body.
Combined Terminal Type | Terminals of different shape/size are located in one connector.
B
82998-12690
82998-12700*
1. Terminal with Wire
Identify the part number of the terminal with wire by picking out the corresponding illustration from the pictures provided on the following charts.
HINT: In some of the illustrations, there are two part numbers for the same illustration of terminal with wire, because although the shapes of the terminals are completely the same, there is a difference in with /without gold–plating (gilded).
Remark: The length of the wire connected to the terminal is approximately 150 mm.
Wire Harness Repair Manual (RM1022E)
14
