D–69

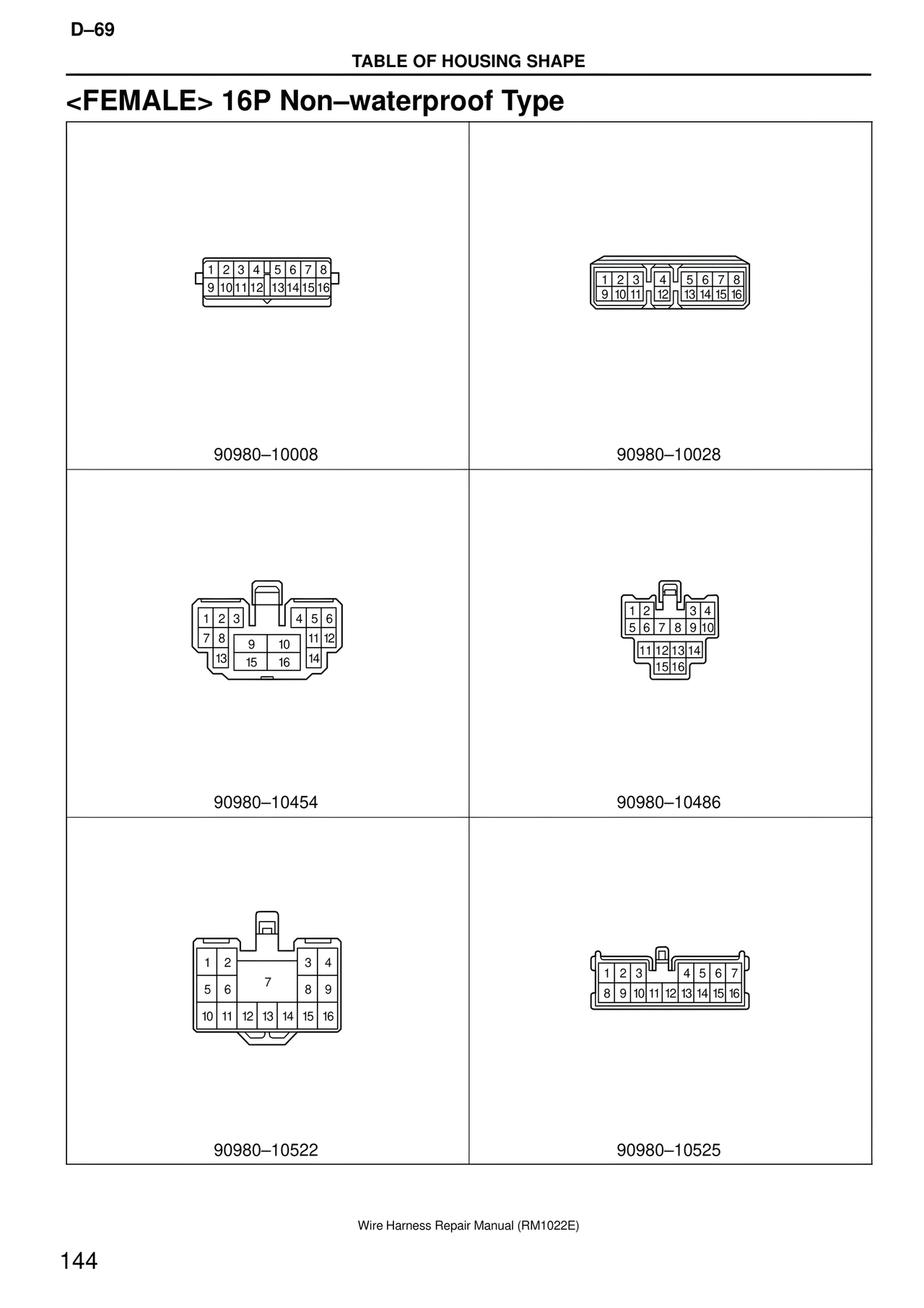

TABLE OF HOUSING SHAPE
<FEMALE> 16P Non–waterproof Type
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–10008
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–10028
1 2 3 4 5 6
7 8 11 12
13 9 10 14
15 16
90980–10454
1 2 3 4
5 6 7 8 9 10
11 12 13 14
15 16
90980–10486
1 2 3 4
5 6 7 8 9
10 11 12 13 14 15 16
90980–10522
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16
90980–10525
Wire Harness Repair Manual (RM1022E)
144
