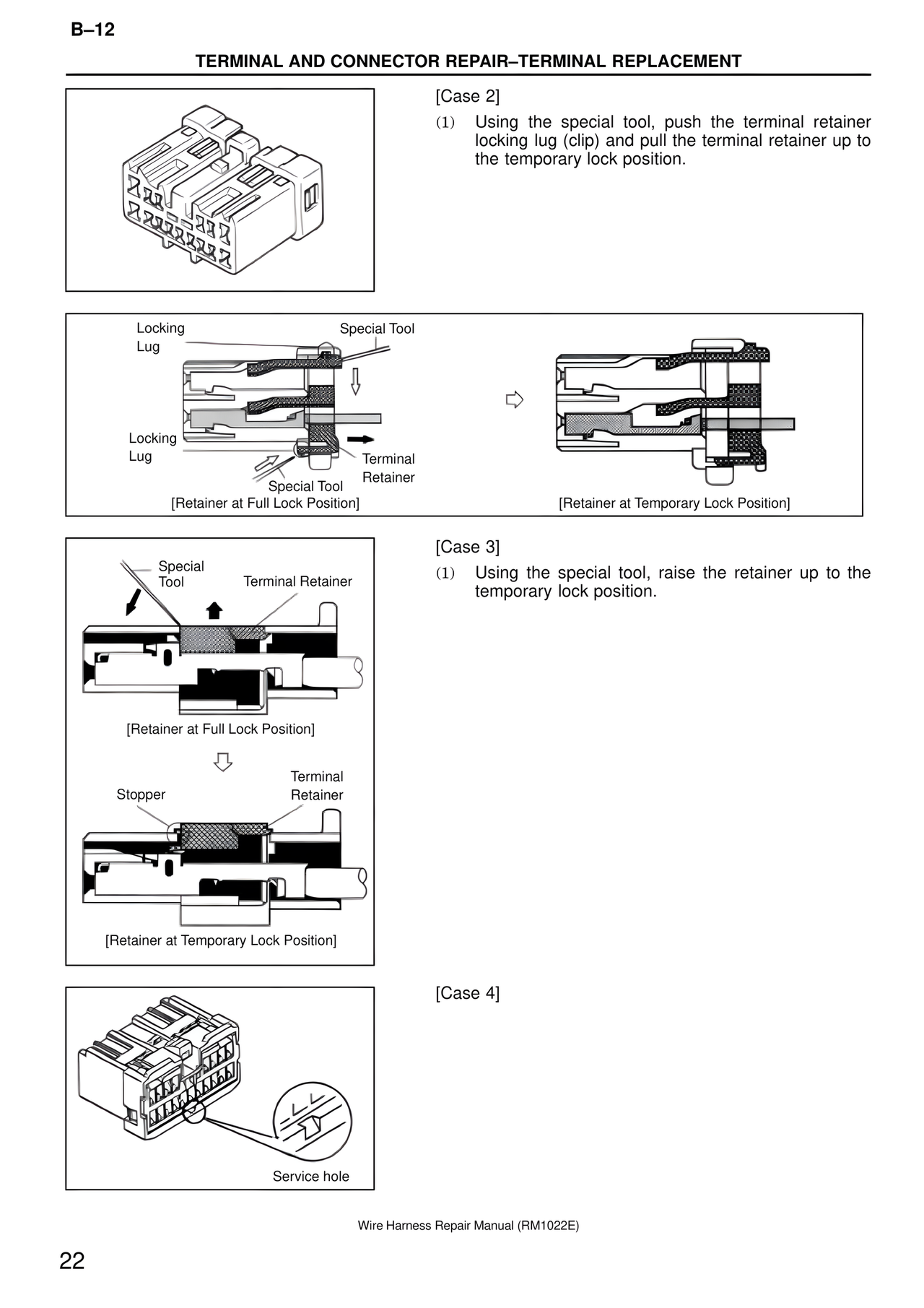

B–12 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT [Case 2] (1) Using the special tool, push the terminal retainer locking lug (clip) and pull the terminal retainer up to the temporary lock position. Locking Lug Special Tool Locking Lug Terminal Retainer Special Tool [Retainer at Full Lock Position] [Retainer at Temporary Lock Position] [Case 3] (1) Using the special tool, raise the retainer up to the temporary lock position. Special Tool Terminal Retainer [Retainer at Full Lock Position] Stopper Terminal Retainer [Retainer at Temporary Lock Position] [Case 4] Service hole Wire Harness Repair Manual (RM1022E) 22
