D–182

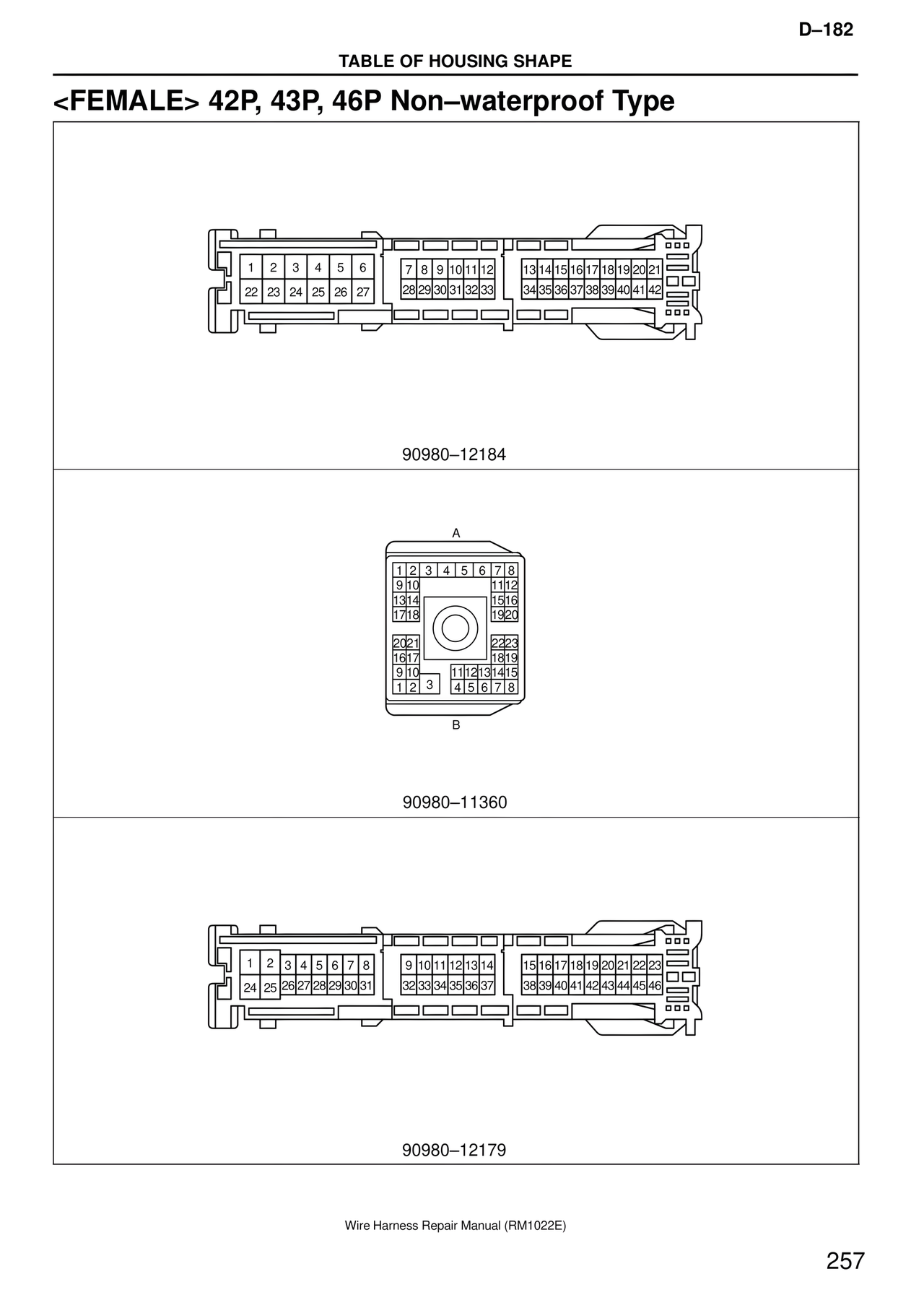

TABLE OF HOUSING SHAPE
<FEMALE> 42P, 43P, 46P Non–waterproof Type
1 2 3 4 5 6
22 23 24 25 26 27
7 8 9 10 11 12
28 29 30 31 32 33
13 14 15 16 17 18 19 20 21
34 35 36 37 38 39 40 41 42
90980–12184
A
1 2 3 4 5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20
20 21 22 23
16 17 18 19
9 10
1 2 3 11 12 13 14 15
4 5 6 7 8
B
90980–11360
1 2 3 4 5 6 7 8
24 25 26 27 28 29 30 31
9 10 11 12 13 14
32 33 34 35 36 37
15 16 17 18 19 20 21 22 23
38 39 40 41 42 43 44 45 46
90980–12179
Wire Harness Repair Manual (RM1022E)
257
