D–224

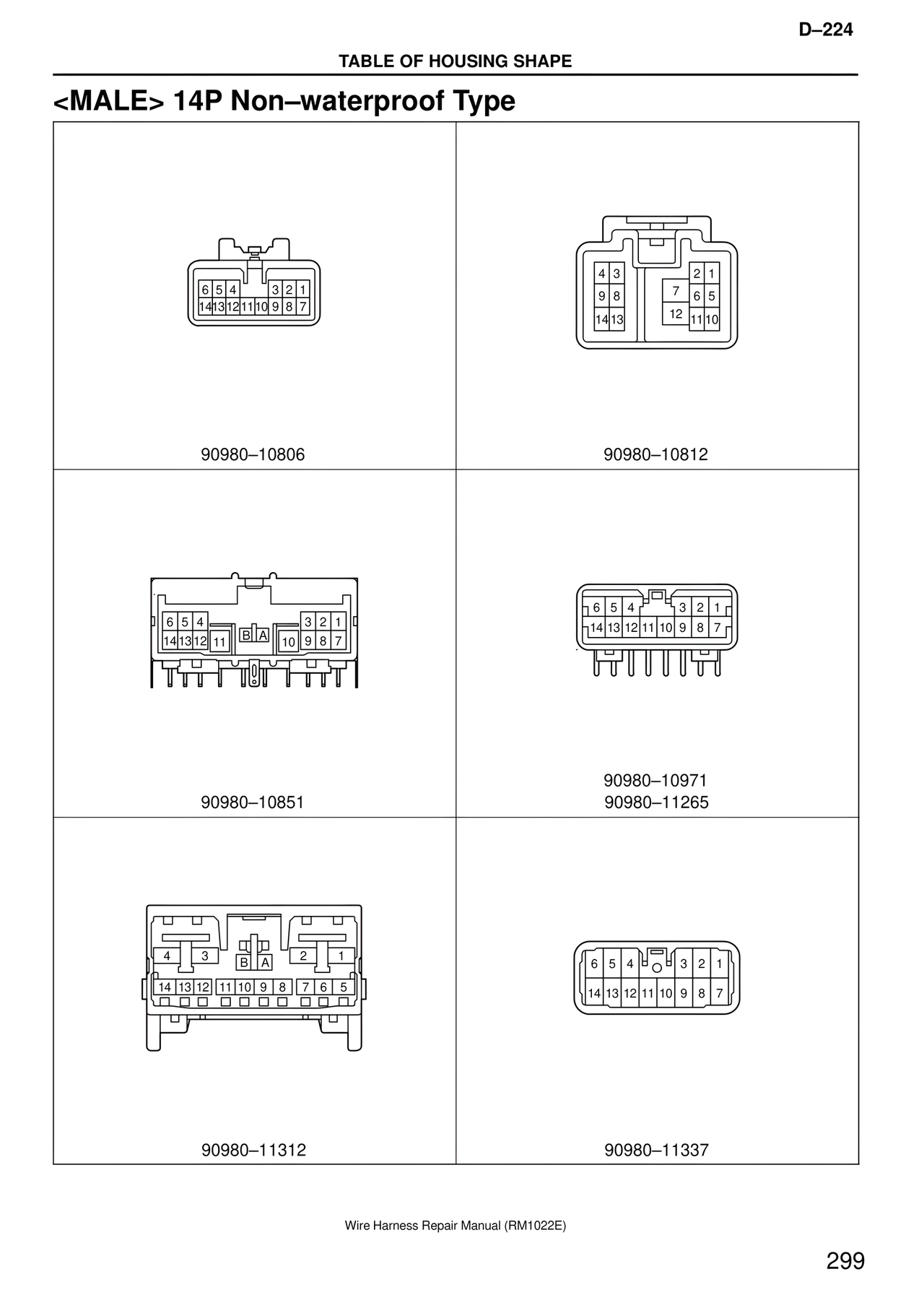

TABLE OF HOUSING SHAPE
<MALE> 14P Non–waterproof Type
6 5 4 3 2 1
14 13 12 11 10 9 8 7
90980–10806
4 3 2 1
9 8 7
6 5
14 13 12
11 10
90980–10812
6 5 4 3 2 1
14 13 12 11 B A 10 9 8 7
90980–10851
6 5 4 3 2 1
14 13 12 11 10 9 8 7
90980–10971
90980–11265
4 3 B A 2 1
14 13 12 11 10 9 8 7 6 5
90980–11312
6 5 4 O 3 2 1
14 13 12 11 10 9 8 7
90980–11337
Wire Harness Repair Manual (RM1022E)
299
