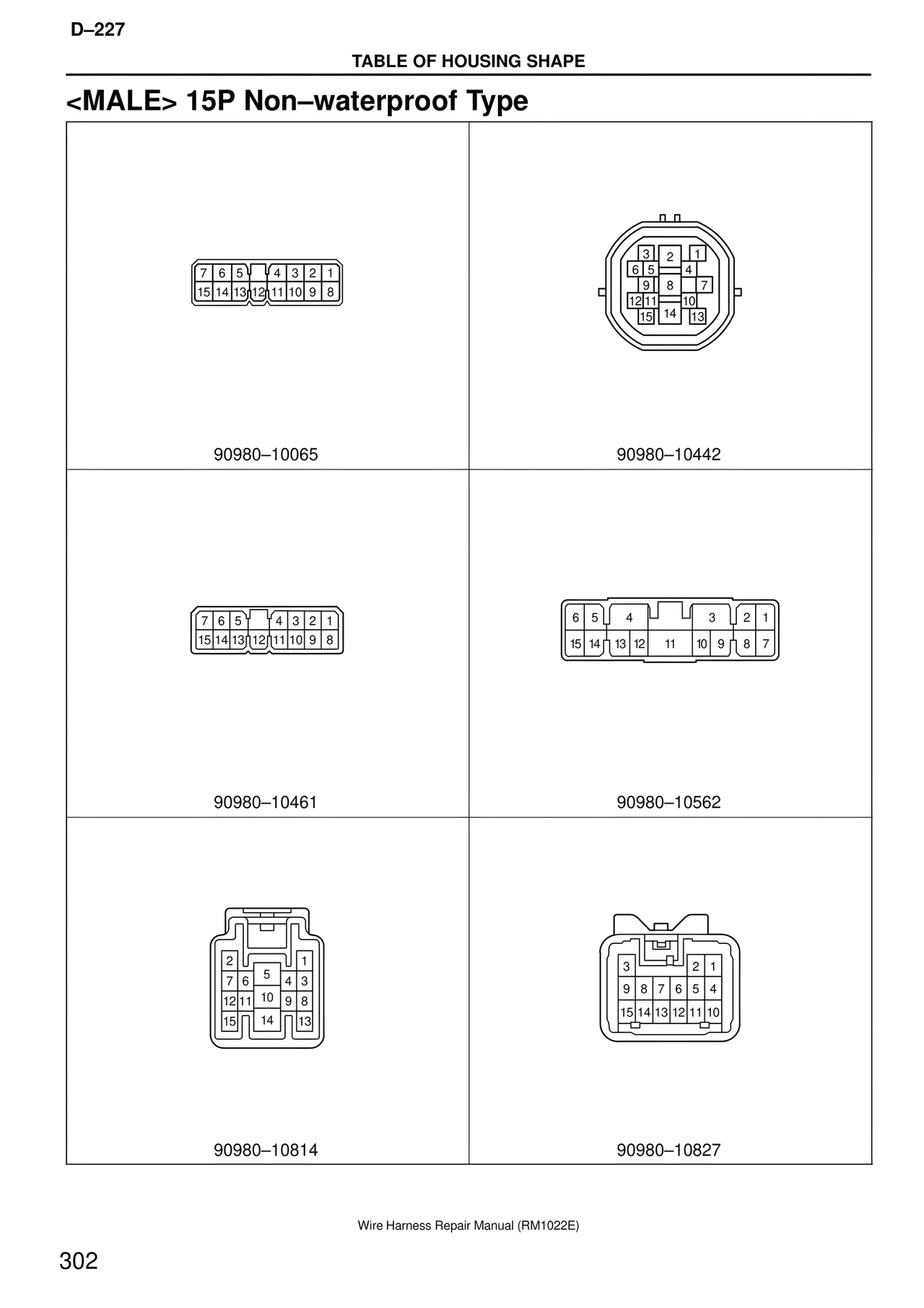

D–227
TABLE OF HOUSING SHAPE
<MALE> 15P Non–waterproof Type
7 6 5 4 3 2 1
15 14 13 12 11 10 9 8
90980–10065
3 2 1
6 5 4
9 8 7
12 11 10
15 14 13
90980–10442
7 6 5 4 3 2 1
15 14 13 12 11 10 9 8
90980–10461
6 5 4 3 2 1
15 14 13 12 11 10 9 8 7
90980–10562
2 1
7 6 5 4 3
12 11 10 9 8
15 14 13
90980–10814
3 2 1
9 8 7 6 5 4
15 14 13 12 11 10
90980–10827
Wire Harness Repair Manual (RM1022E)
302
