D–229

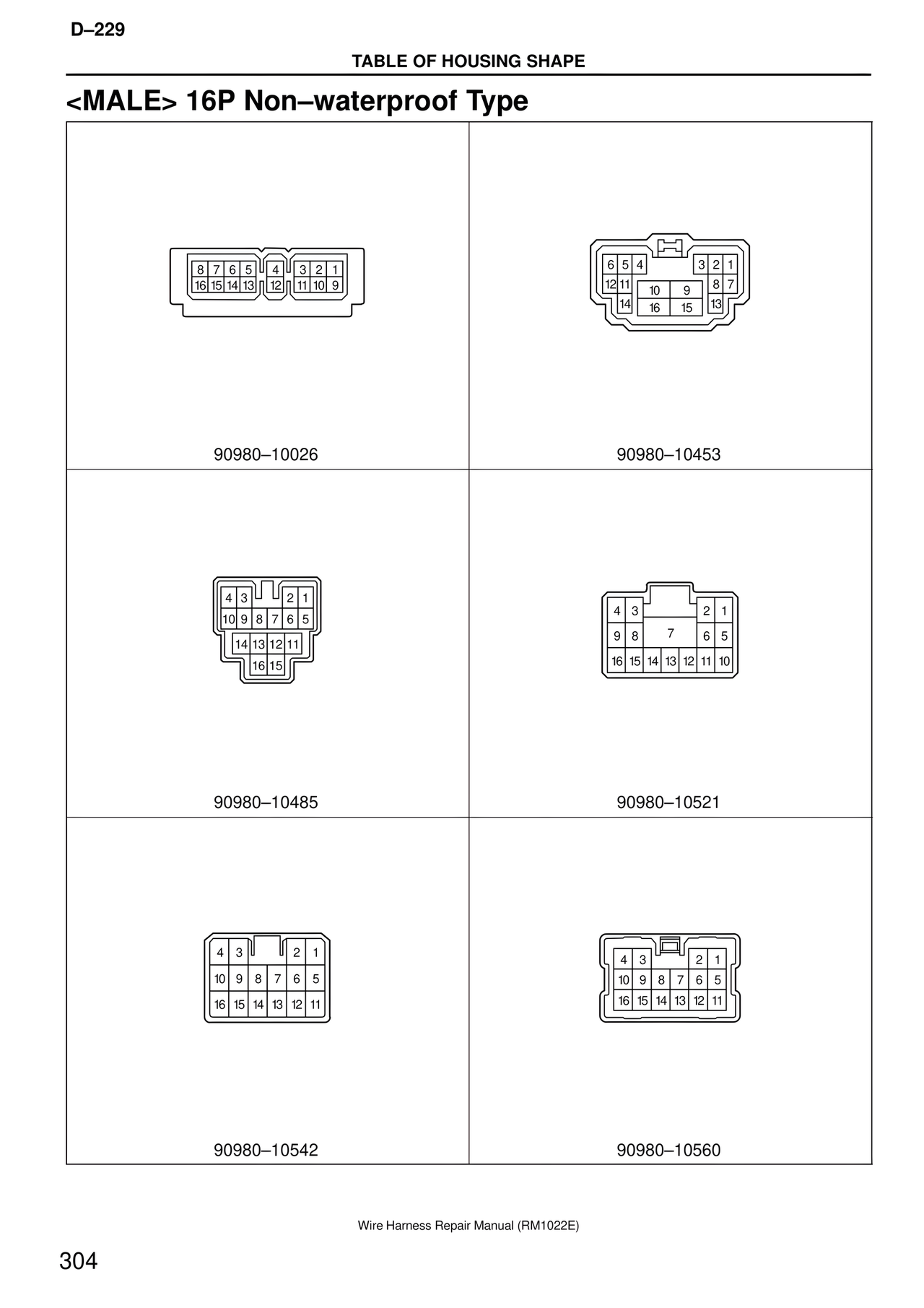

TABLE OF HOUSING SHAPE
<MALE> 16P Non–waterproof Type
8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
90980–10026
6 5 4 3 2 1
12 11 8 7
14 10 9
16 15 13
90980–10453
4 3 2 1
10 9 8 7 6 5
14 13 12 11
16 15
90980–10485
4 3 2 1
9 8 7 6 5
16 15 14 13 12 11 10
90980–10521
4 3 2 1
10 9 8 7 6 5
16 15 14 13 12 11
90980–10542
4 3 2 1
10 9 8 7 6 5
16 15 14 13 12 11
90980–10560
Wire Harness Repair Manual (RM1022E)
304
