D–238

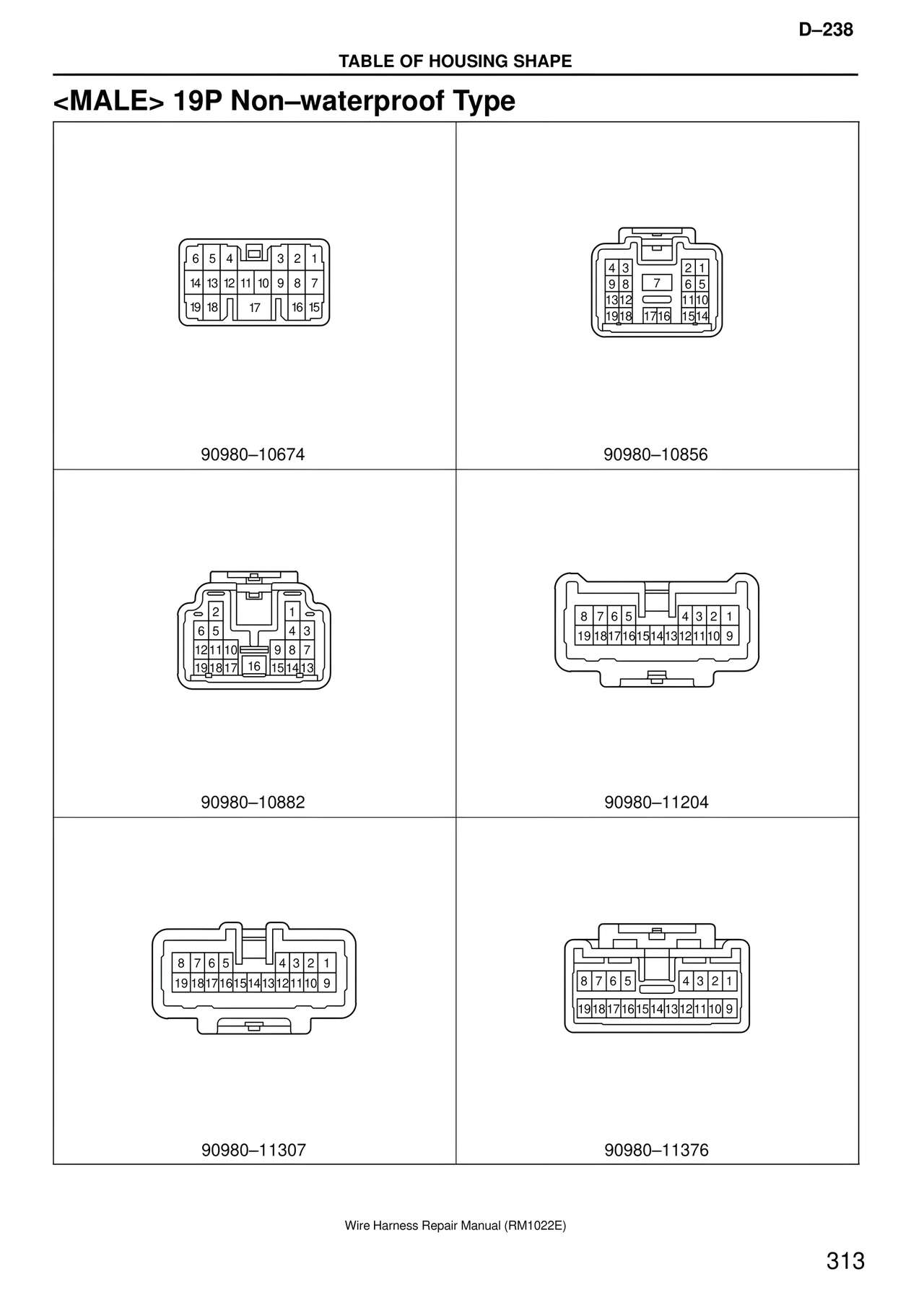

TABLE OF HOUSING SHAPE
<MALE> 19P Non–waterproof Type
6 5 4 3 2 1
14 13 12 11 10 9 8 7
19 18 17 16 15
90980–10674
4 3 2 1
9 8 7 6 5
13 12 11 10
19 18 17 16 15 14
90980–10856
2 1
6 5 4 3
12 11 10 9 8 7
19 18 17 16 15 14 13
90980–10882
8 7 6 5 4 3 2 1
19 18 17 16 15 14 13 12 11 10 9
90980–11204
8 7 6 5 4 3 2 1
19 18 17 16 15 14 13 12 11 10 9
90980–11307
8 7 6 5 4 3 2 1
19 18 17 16 15 14 13 12 11 10 9
90980–11376
Wire Harness Repair Manual (RM1022E)
313
