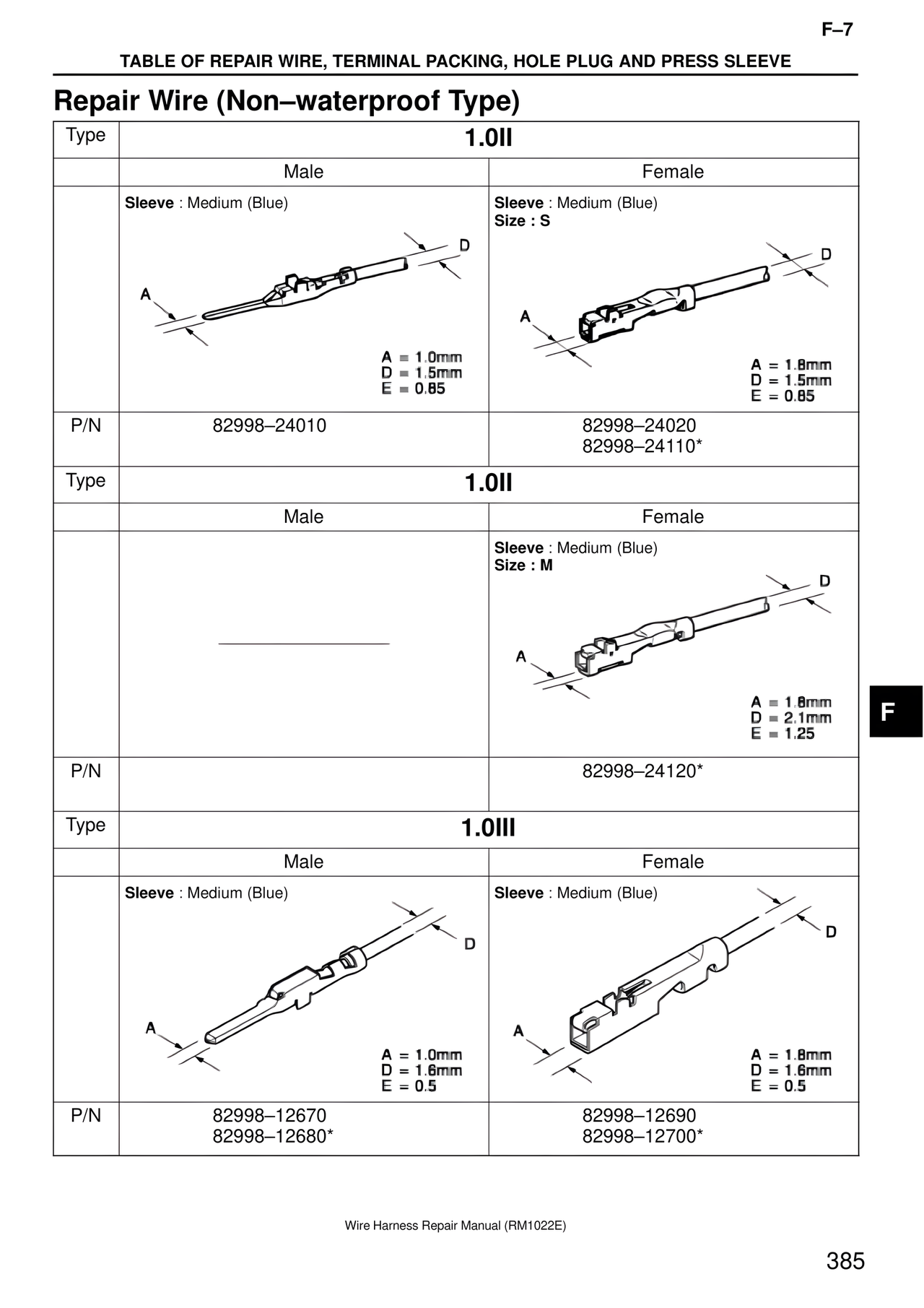

F–7 TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE Repair Wire (Non–waterproof Type) Type 1.0II Male Female Sleeve : Medium (Blue) Sleeve : Medium (Blue) Size : S A = 1.0mm A = 1.8mm D = 1.5mm D = 1.5mm E = 0.85 E = 0.85 P/N 82998–24010 82998–24020 82998–24110* Type 1.0II Male Female Sleeve : Medium (Blue) Size : M A = 1.8mm D = 2.1mm E = 1.25 P/N 82998–24120* Type 1.0III Male Female Sleeve : Medium (Blue) Sleeve : Medium (Blue) A = 1.0mm A = 1.8mm D = 1.6mm D = 1.6mm E = 0.5 E = 0.5 P/N 82998–12670 82998–12690 82998–12680* 82998–12700* F Wire Harness Repair Manual (RM1022E) 385
