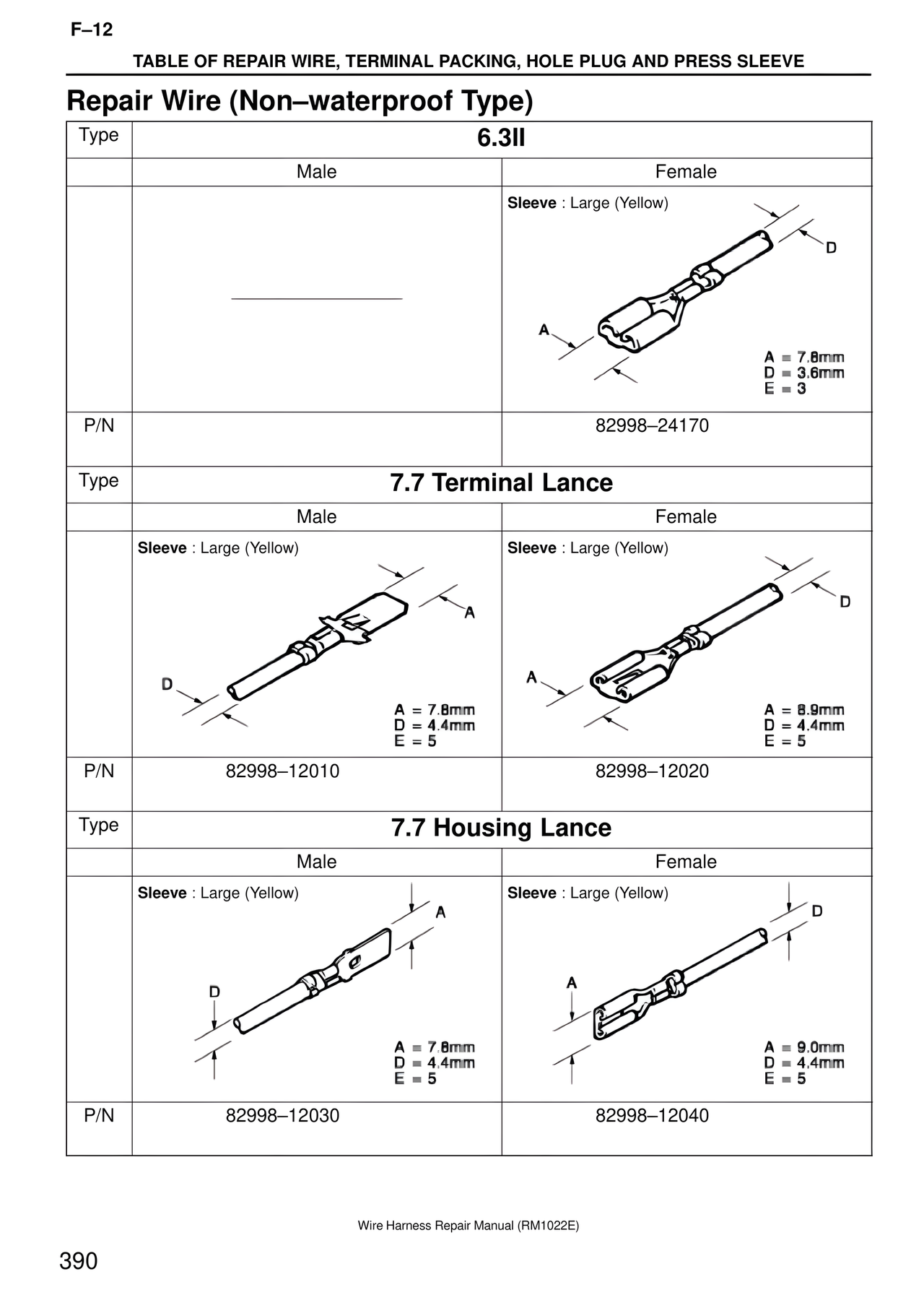

F–12 TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE Repair Wire (Non–waterproof Type) Type 6.3II Male Female Sleeve : Large (Yellow) A = 7.8mm D = 3.6mm E = 3 P/N 82998–24170 Type 7.7 Terminal Lance Male Female Sleeve : Large (Yellow) Sleeve : Large (Yellow) A = 7.8mm D = 4.4mm E = 5 A = 8.9mm D = 4.4mm E = 5 P/N 82998–12010 82998–12020 Type 7.7 Housing Lance Male Female Sleeve : Large (Yellow) Sleeve : Large (Yellow) A = 7.8mm D = 4.4mm E = 5 A = 9.0mm D = 4.4mm E = 5 P/N 82998–12030 82998–12040 Wire Harness Repair Manual (RM1022E) 390
