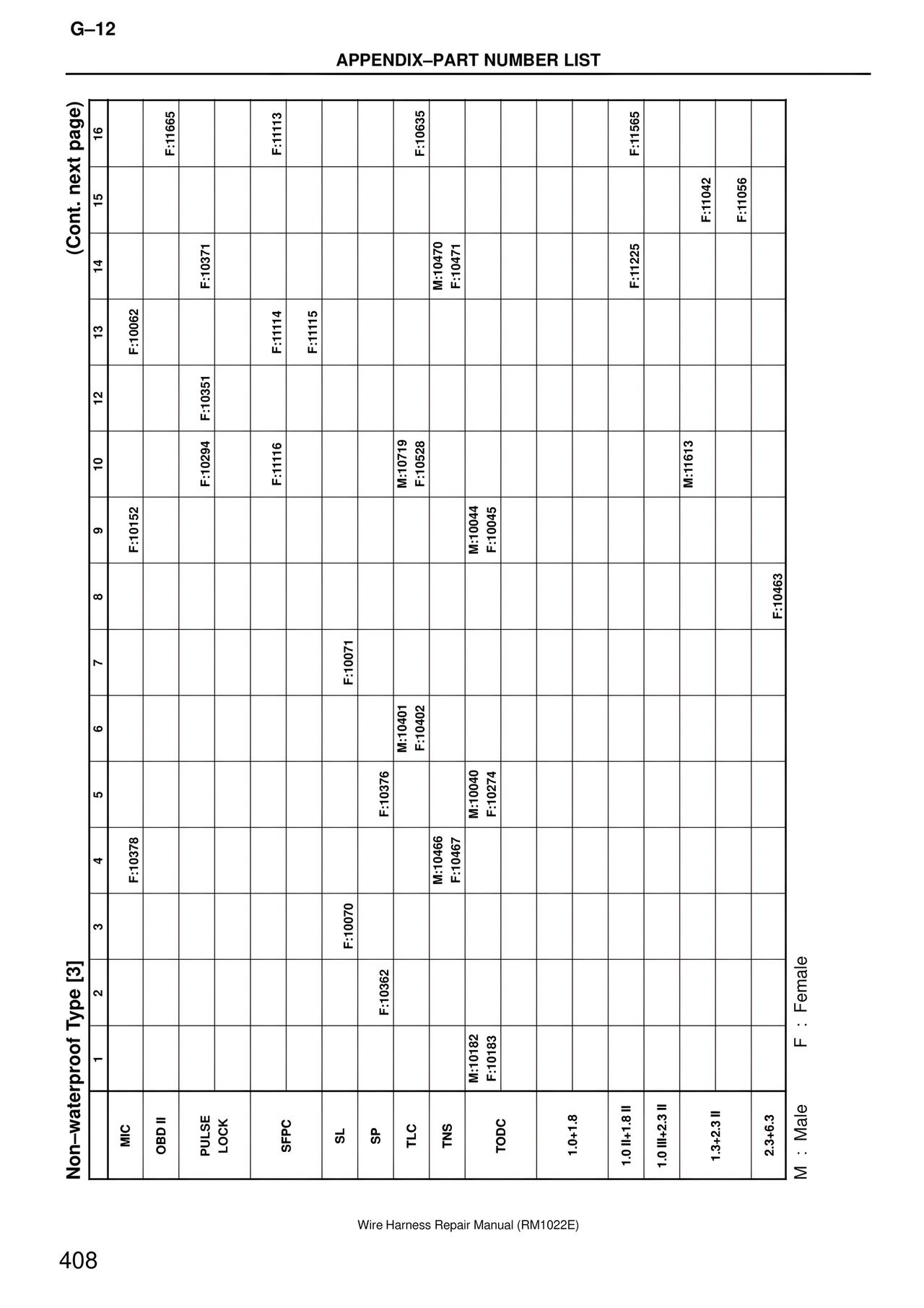

G–12
APPENDIX–PART NUMBER LIST
(Cont. next page)
Non–waterproof Type [3]
Column headers (left to right):
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16
MIC
F:10152 (col 9)
F:10062 (col 13)
F:11665 (col 16)
OBD II
(no entries)
PULSE LOCK
F:10294 (col 10)
F:10351 (col 12)
F:10371 (col 14)
SFPC
F:11116 (col 10)
F:11114 (col 13)
F:11115 (col 13)
F:11113 (col 16)
SL
F:10362 (col 2)
F:10070 (col 3)
F:10376 (col 5)
F:10071 (col 7)
SP
M:10401 (col 6)
F:10402 (col 6)
M:10719 (col 10)
F:10528 (col 10)
F:10635 (col 16)
TLC
M:10466 (col 4)
F:10467 (col 4)
M:10470 (col 14)
F:10471 (col 14)
TNS
M:10182 (col 1)
F:10183 (col 1)
M:10040 (col 5)
F:10274 (col 5)
M:10044 (col 9)
F:10045 (col 9)
TODC
(no entries)
1.0+1.8
(no entries)
1.0 II+1.8 II
F:11225 (col 14)
F:11565 (col 16)
1.0 III+2.3 II
M:11613 (col 10)
F:11042 (col 15)
1.3+2.3 II
F:11056 (col 15)
2.3+6.3
F:10463 (col 8)
M : Male
F : Female
408
Wire Harness Repair Manual (RM1022E)
