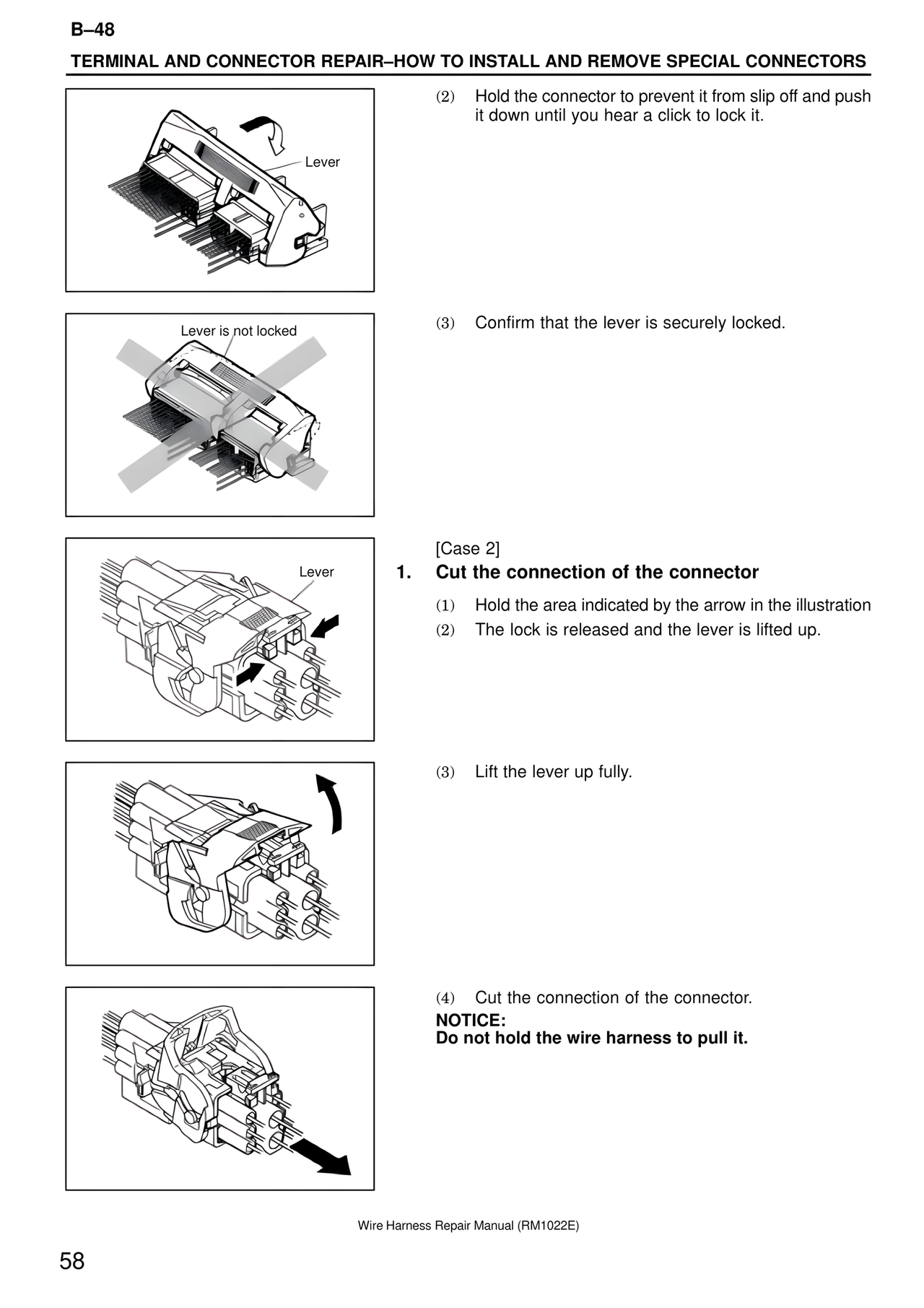

B–48 TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS Lever (2) Hold the connector to prevent it from slip off and push it down until you hear a click to lock it. Lever is not locked (3) Confirm that the lever is securely locked. Lever [Case 2] 1. Cut the connection of the connector (1) Hold the area indicated by the arrow in the illustration (2) The lock is released and the lever is lifted up. (3) Lift the lever up fully. (4) Cut the connection of the connector. NOTICE: Do not hold the wire harness to pull it. Wire Harness Repair Manual (RM1022E) 58
