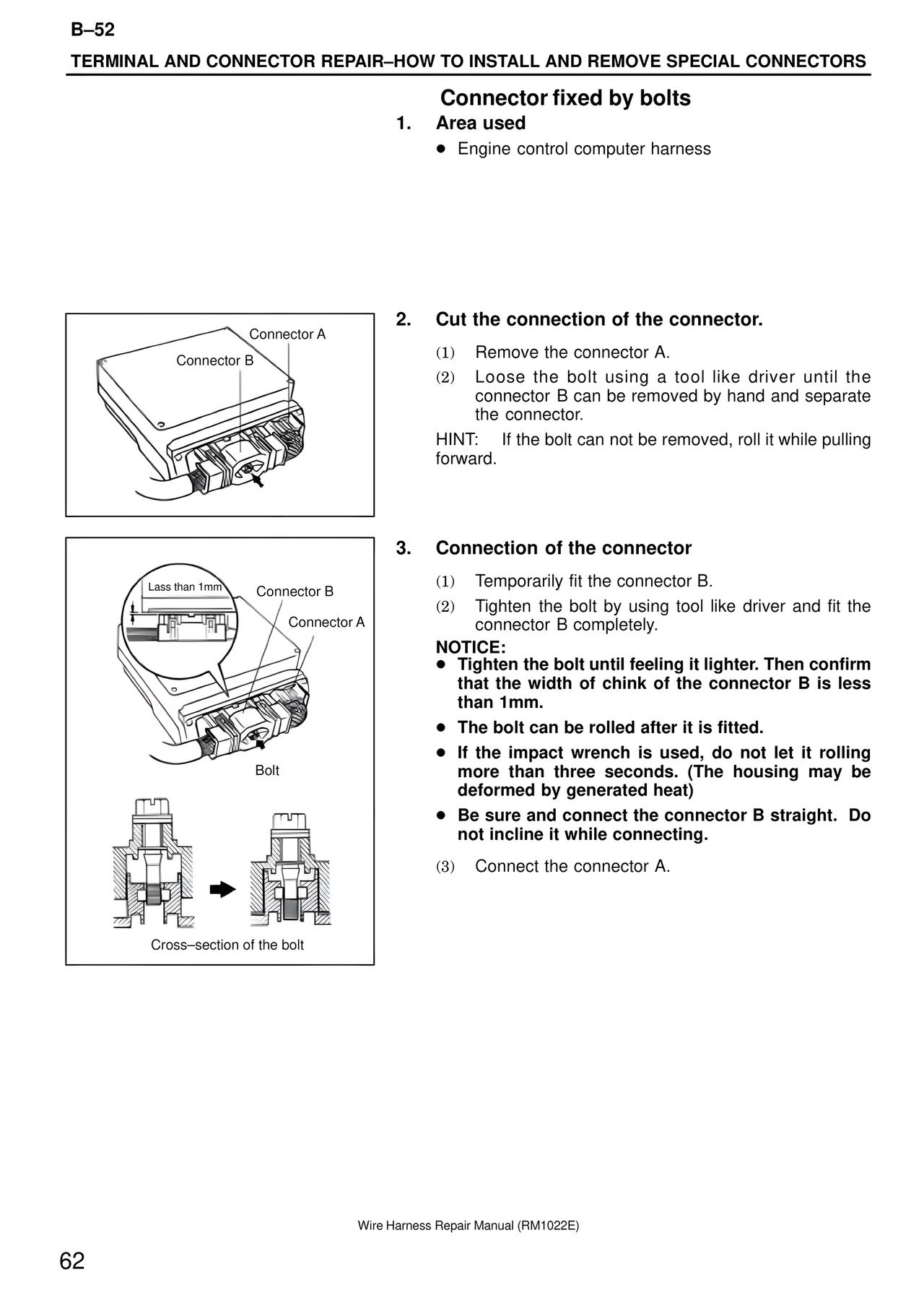

B–52 TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS Connector fixed by bolts 1. Area used ● Engine control computer harness Connector A Connector B 2. Cut the connection of the connector. (1) Remove the connector A. (2) Loose the bolt using a tool like driver until the connector B can be removed by hand and separate the connector. HINT: If the bolt can not be removed, roll it while pulling forward. Lass than 1mm Connector B Connector A Bolt Cross–section of the bolt 3. Connection of the connector (1) Temporarily fit the connector B. (2) Tighten the bolt by using tool like driver and fit the connector B completely. NOTICE: ● Tighten the bolt until feeling it lighter. Then confirm that the width of chink of the connector B is less than 1mm. ● The bolt can be rolled after it is fitted. ● If the impact wrench is used, do not let it rolling more than three seconds. (The housing may be deformed by generated heat) ● Be sure and connect the connector B straight. Do not incline it while connecting. (3) Connect the connector A. Wire Harness Repair Manual (RM1022E) 62
