C–1

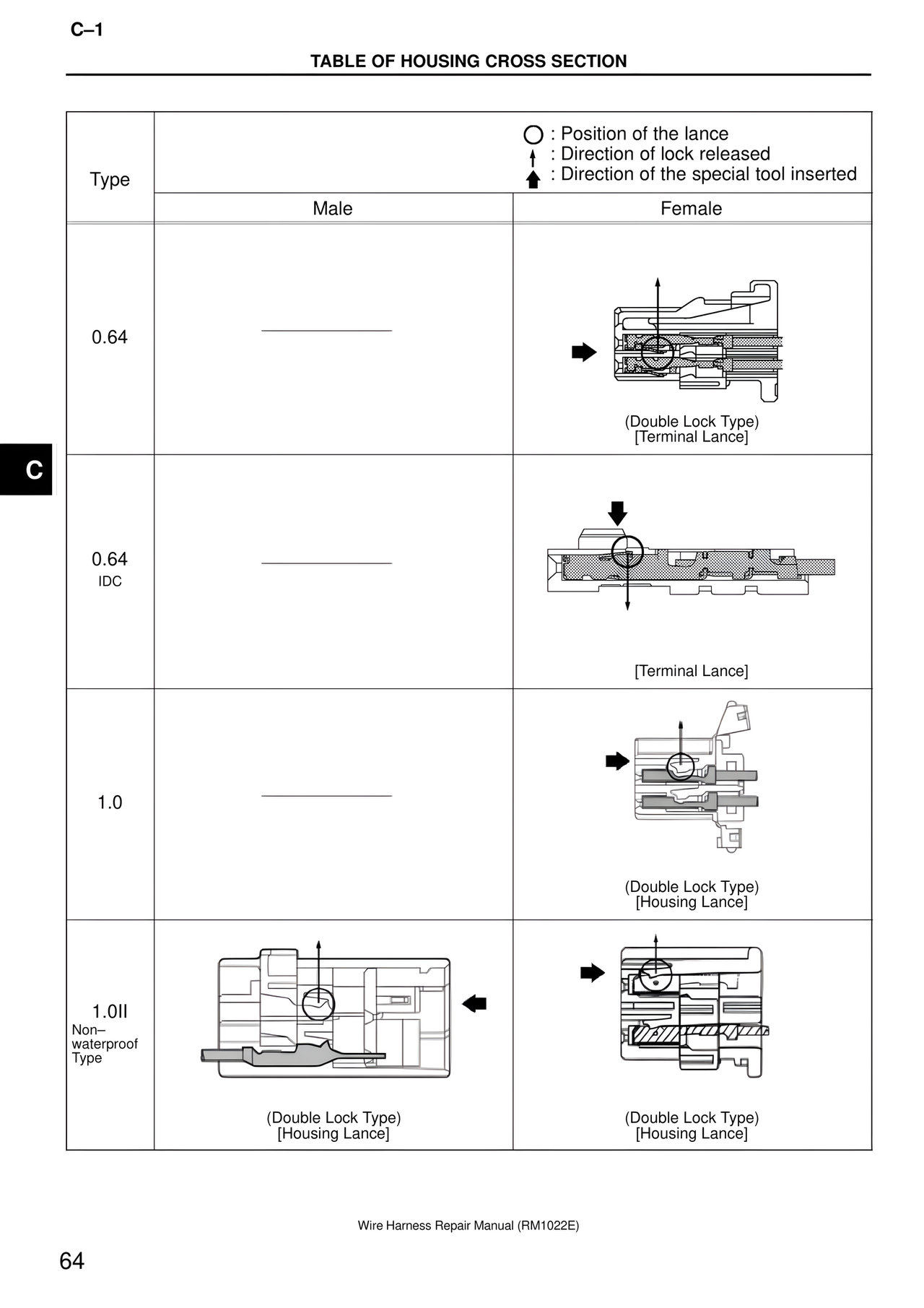

TABLE OF HOUSING CROSS SECTION
O : Position of the lance
: Direction of lock released
: Direction of the special tool inserted
Type
Male Female
0.64
(Double Lock Type)
[Terminal Lance]
0.64
IDC
[Terminal Lance]
1.0
(Double Lock Type)
[Housing Lance]
1.0II
Non–
waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
C
Wire Harness Repair Manual (RM1022E)
64
