C–8

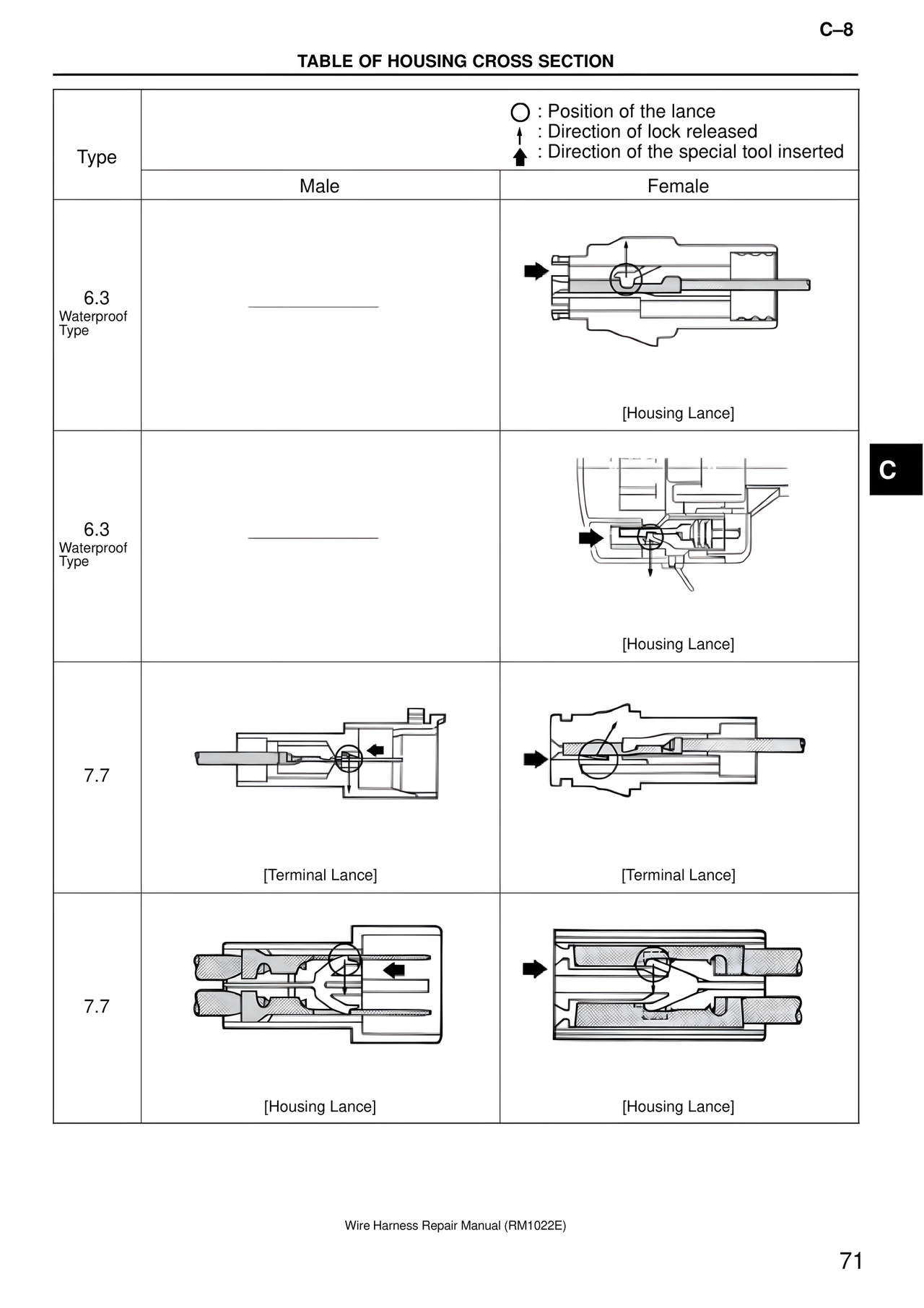

TABLE OF HOUSING CROSS SECTION
○ : Position of the lance
↕ : Direction of lock released
▲ : Direction of the special tool inserted
Type
Male Female
6.3
Waterproof
Type
[Housing Lance]
6.3
Waterproof
Type
[Housing Lance]
7.7
[Terminal Lance] [Terminal Lance]
7.7
[Housing Lance] [Housing Lance]
