C–12

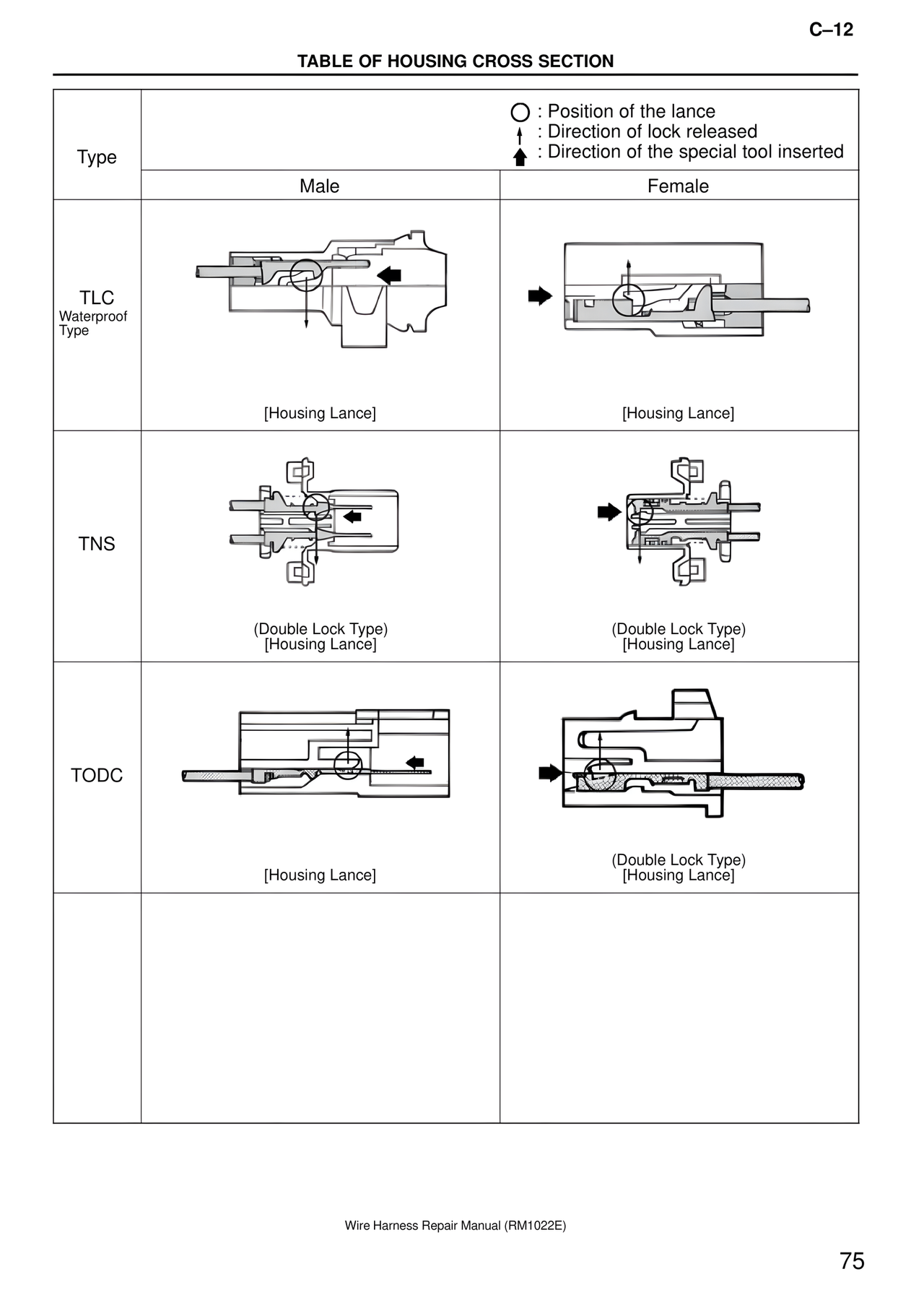

TABLE OF HOUSING CROSS SECTION
Type
○ : Position of the lance
↕ : Direction of lock released
➤ : Direction of the special tool inserted
Male Female
TLC
Waterproof
Type
[Housing Lance] [Housing Lance]
TNS
(Double Lock Type) (Double Lock Type)
[Housing Lance] [Housing Lance]
TODC
[Housing Lance] (Double Lock Type)
[Housing Lance]
