AC–7
AIR CONDITIONING SYSTEM — DESCRIPTION
DESCRIPTION

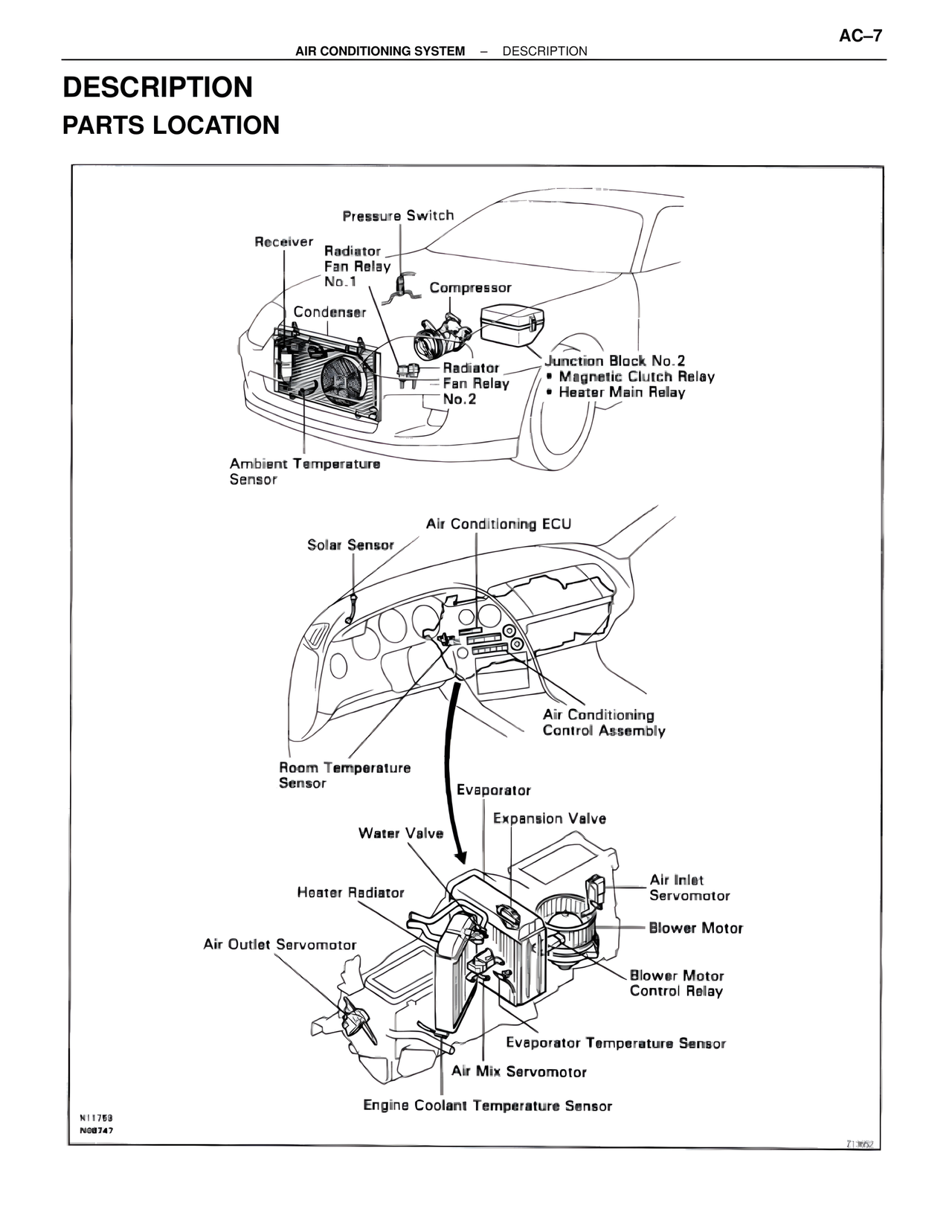

PARTS LOCATION
Pressure Switch
Receiver
Radiator
Fan Relay
No.1
Compressor
Condenser
Junction Block No.2
• Magnetic Clutch Relay
• Heater Main Relay
Radiator
Fan Relay
No.2
Ambient Temperature
Sensor
Air Conditioning ECU
Solar Sensor
Air Conditioning
Control Assembly
Room Temperature
Sensor
Evaporator
Expansion Valve
Water Valve
Air Inlet
Servomotor
Heater Radiator
Blower Motor
Air Outlet Servomotor
Blower Motor
Control Relay
Evaporator Temperature Sensor
Air Mix Servomotor
Engine Coolant Temperature Sensor
N11763
N98747
213652
