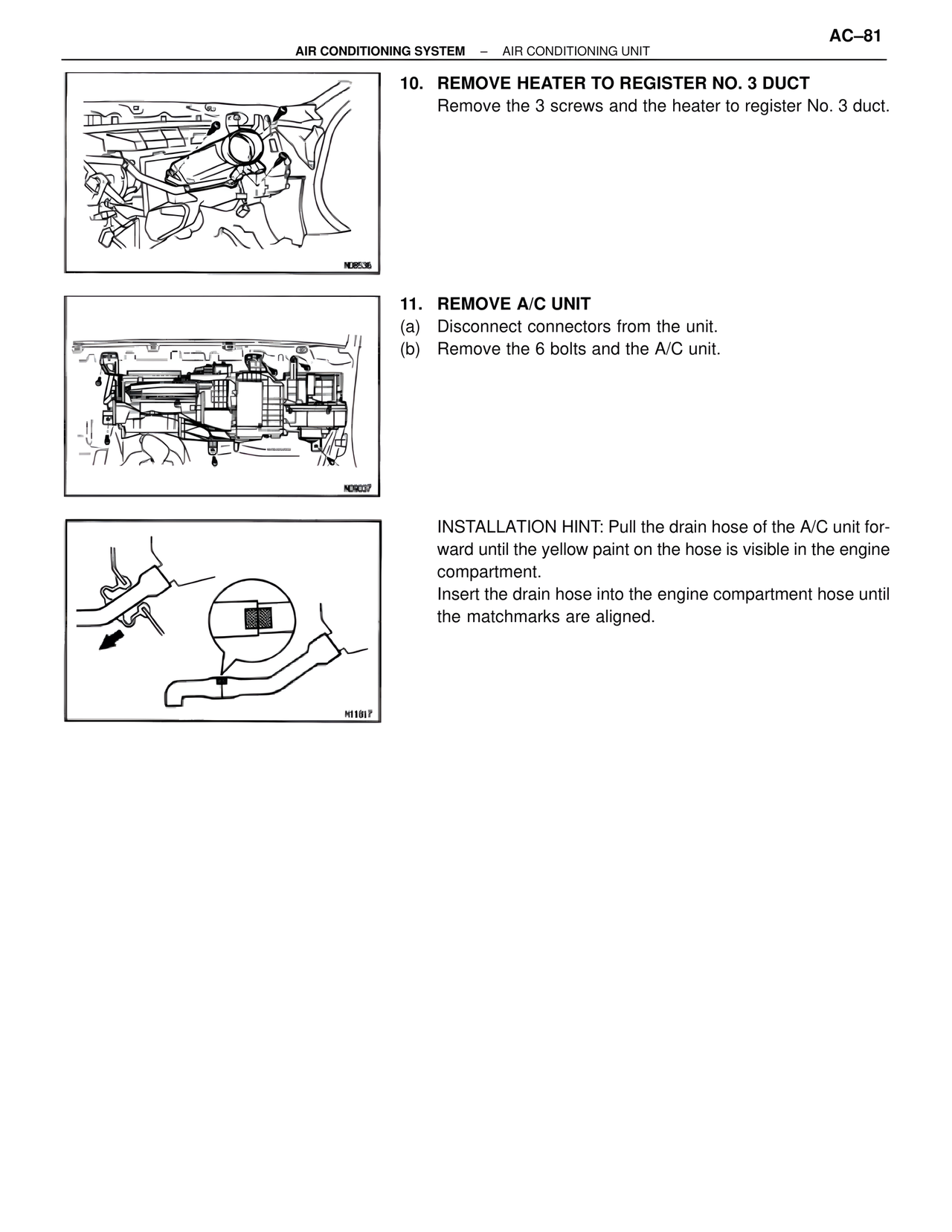

AC–81
AIR CONDITIONING SYSTEM – AIR CONDITIONING UNIT
10. REMOVE HEATER TO REGISTER NO. 3 DUCT
Remove the 3 screws and the heater to register No. 3 duct.
N08536
11. REMOVE A/C UNIT
(a) Disconnect connectors from the unit.
(b) Remove the 6 bolts and the A/C unit.
N09037
INSTALLATION HINT: Pull the drain hose of the A/C unit forward until the yellow paint on the hose is visible in the engine compartment.
Insert the drain hose into the engine compartment hose until the matchmarks are aligned.
N11017
