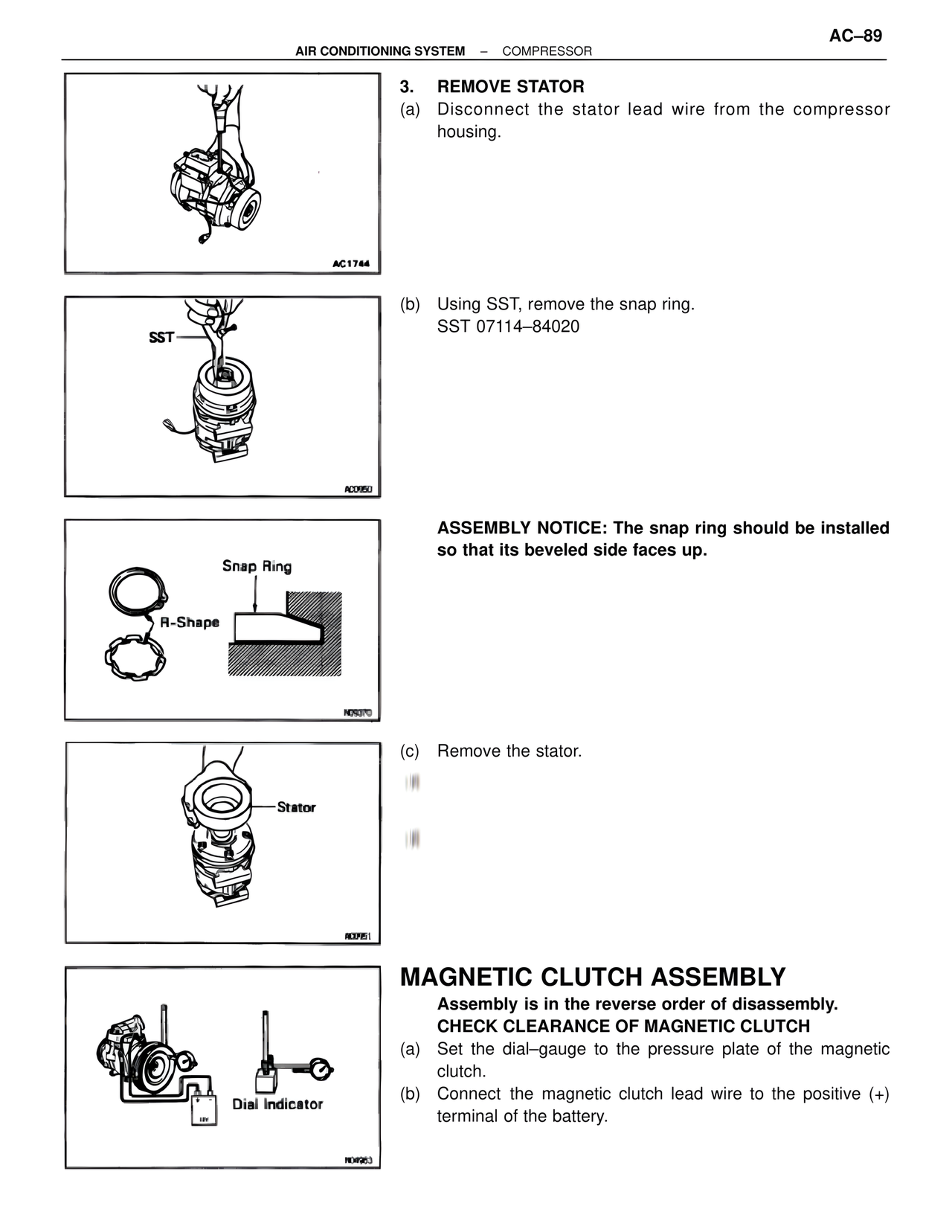

AC–89 AIR CONDITIONING SYSTEM – COMPRESSOR 3. REMOVE STATOR (a) Disconnect the stator lead wire from the compressor housing. AC1744 (b) Using SST, remove the snap ring. SST 07114–84020 SST AC0050 ASSEMBLY NOTICE: The snap ring should be installed so that its beveled side faces up. Snap Ring R-Shape N09370 (c) Remove the stator. Stator AC0051 MAGNETIC CLUTCH ASSEMBLY Assembly is in the reverse order of disassembly. CHECK CLEARANCE OF MAGNETIC CLUTCH (a) Set the dial–gauge to the pressure plate of the magnetic clutch. (b) Connect the magnetic clutch lead wire to the positive (+) terminal of the battery. Dial Indicator N04963
