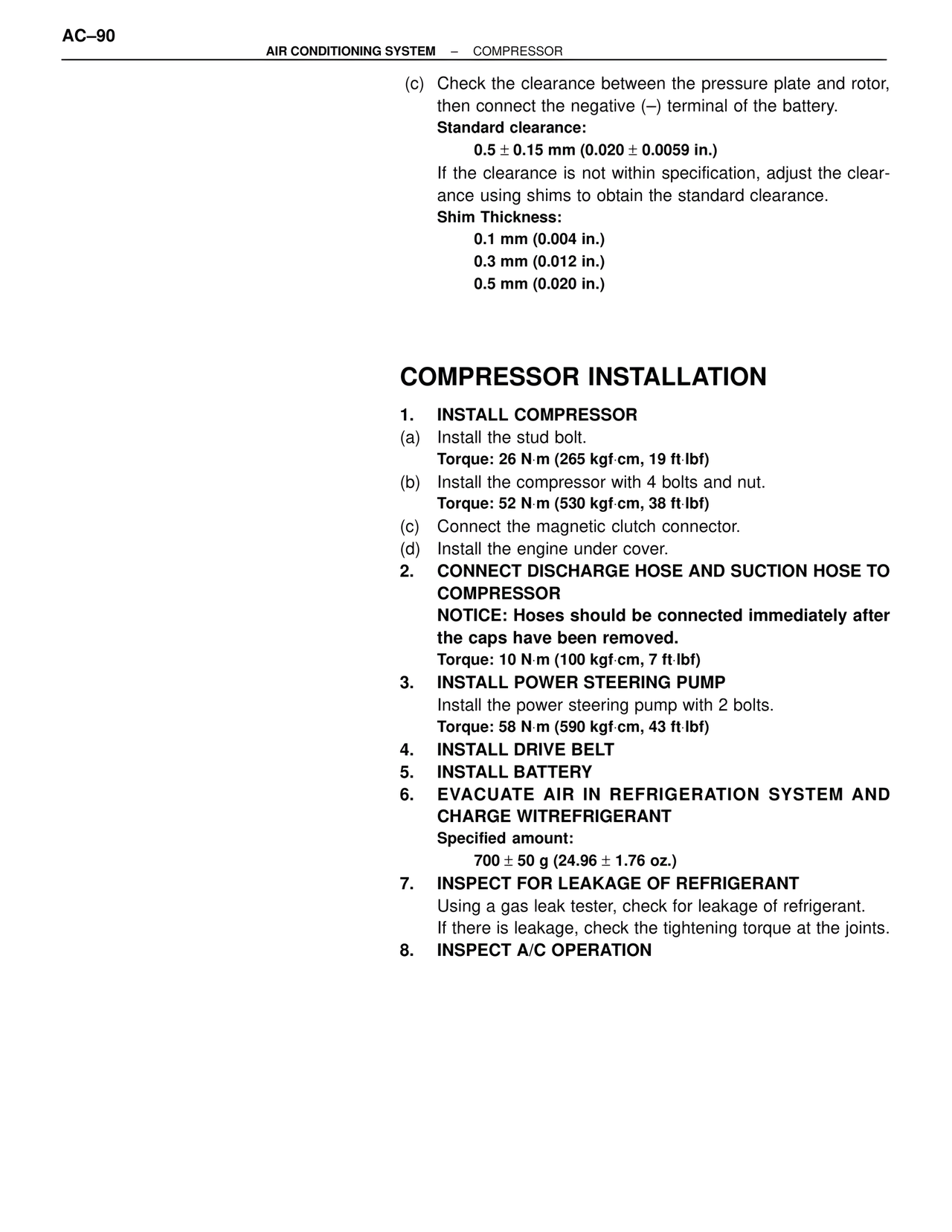

AC–90
AIR CONDITIONING SYSTEM – COMPRESSOR
(c) Check the clearance between the pressure plate and rotor,
then connect the negative (–) terminal of the battery.
Standard clearance:
0.5 ± 0.15 mm (0.020 ± 0.0059 in.)
If the clearance is not within specification, adjust the clear-
ance using shims to obtain the standard clearance.
Shim Thickness:
0.1 mm (0.004 in.)
0.3 mm (0.012 in.)
0.5 mm (0.020 in.)
COMPRESSOR INSTALLATION
1. INSTALL COMPRESSOR
(a) Install the stud bolt.
Torque: 26 N·m (265 kgf·cm, 19 ft·lbf)
(b) Install the compressor with 4 bolts and nut.
Torque: 52 N·m (530 kgf·cm, 38 ft·lbf)
(c) Connect the magnetic clutch connector.
(d) Install the engine under cover.
2. CONNECT DISCHARGE HOSE AND SUCTION HOSE TO
COMPRESSOR
NOTICE: Hoses should be connected immediately after
the caps have been removed.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
3. INSTALL POWER STEERING PUMP
Install the power steering pump with 2 bolts.
Torque: 58 N·m (590 kgf·cm, 43 ft·lbf)
4. INSTALL DRIVE BELT
5. INSTALL BATTERY
6. EVACUATE AIR IN REFRIGERATION SYSTEM AND
CHARGE WITREFRIGERANT
Specified amount:
700 ± 50 g (24.96 ± 1.76 oz.)
7. INSPECT FOR LEAKAGE OF REFRIGERANT
Using a gas leak tester, check for leakage of refrigerant.
If there is leakage, check the tightening torque at the joints.
8. INSPECT A/C OPERATION
