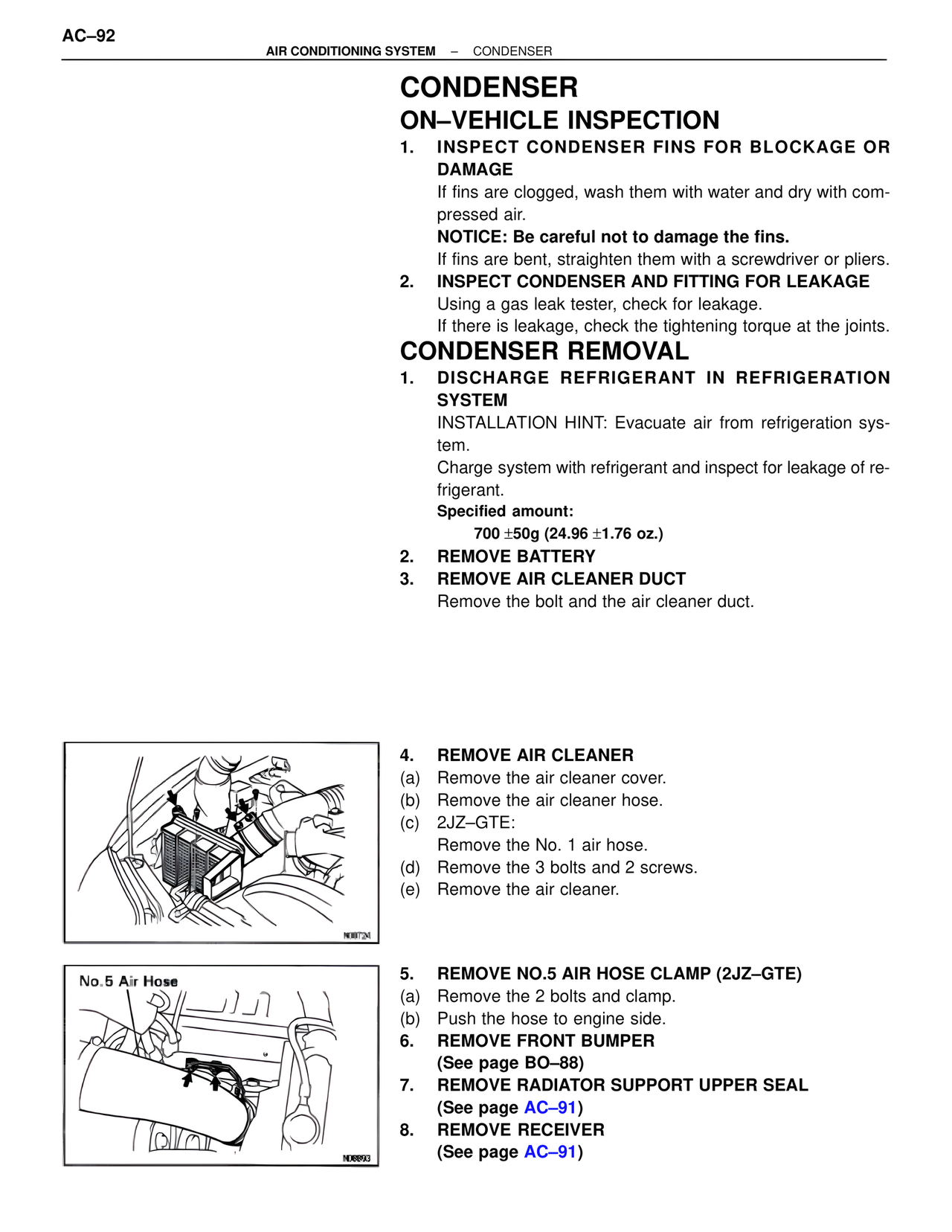

AC–92
AIR CONDITIONING SYSTEM – CONDENSER
CONDENSER
ON–VEHICLE INSPECTION
1. INSPECT CONDENSER FINS FOR BLOCKAGE OR DAMAGE
If fins are clogged, wash them with water and dry with compressed air.
NOTICE: Be careful not to damage the fins.
If fins are bent, straighten them with a screwdriver or pliers.
2. INSPECT CONDENSER AND FITTING FOR LEAKAGE
Using a gas leak tester, check for leakage.
If there is leakage, check the tightening torque at the joints.
CONDENSER REMOVAL
1. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM
INSTALLATION HINT: Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount:
700 ±50g (24.96 ±1.76 oz.)
2. REMOVE BATTERY
3. REMOVE AIR CLEANER DUCT
Remove the bolt and the air cleaner duct.
4. REMOVE AIR CLEANER
(a) Remove the air cleaner cover.
(b) Remove the air cleaner hose.
(c) 2JZ–GTE:
Remove the No. 1 air hose.
(d) Remove the 3 bolts and 2 screws.
(e) Remove the air cleaner.
No.5 Air Hose
5. REMOVE NO.5 AIR HOSE CLAMP (2JZ–GTE)
(a) Remove the 2 bolts and clamp.
(b) Push the hose to engine side.
6. REMOVE FRONT BUMPER
(See page BO–88)
7. REMOVE RADIATOR SUPPORT UPPER SEAL
(See page AC–91)
8. REMOVE RECEIVER
(See page AC–91)
