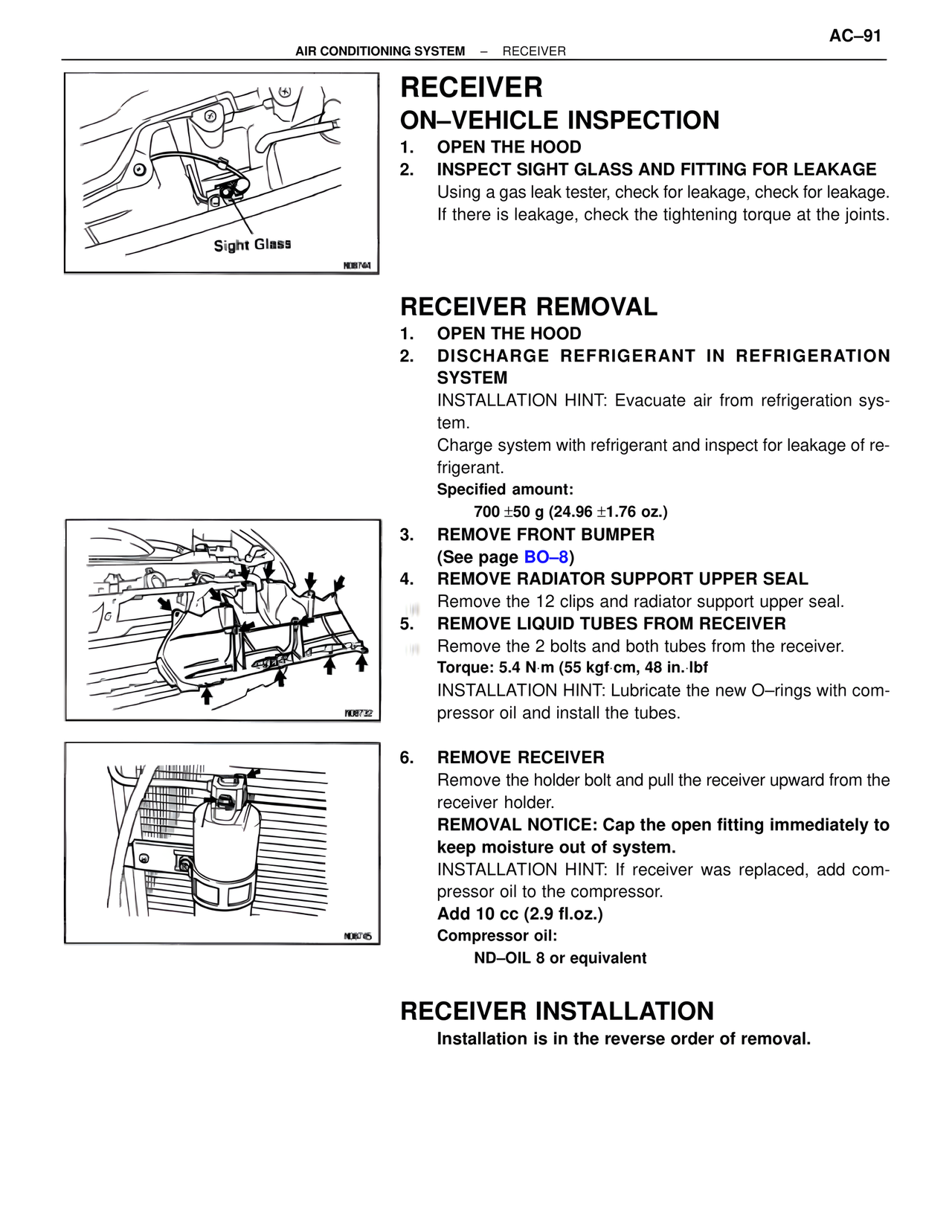

AC–91 AIR CONDITIONING SYSTEM – RECEIVER RECEIVER ON–VEHICLE INSPECTION 1. OPEN THE HOOD 2. INSPECT SIGHT GLASS AND FITTING FOR LEAKAGE Using a gas leak tester, check for leakage, check for leakage. If there is leakage, check the tightening torque at the joints. Sight Glass N08744 RECEIVER REMOVAL 1. OPEN THE HOOD 2. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM INSTALLATION HINT: Evacuate air from refrigeration sys- tem. Charge system with refrigerant and inspect for leakage of re- frigerant. Specified amount: 700 ±50 g (24.96 ±1.76 oz.) 3. REMOVE FRONT BUMPER (See page BO–8) 4. REMOVE RADIATOR SUPPORT UPPER SEAL Remove the 12 clips and radiator support upper seal. 5. REMOVE LIQUID TUBES FROM RECEIVER Remove the 2 bolts and both tubes from the receiver. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf INSTALLATION HINT: Lubricate the new O–rings with com- pressor oil and install the tubes. N08732 6. REMOVE RECEIVER Remove the holder bolt and pull the receiver upward from the receiver holder. REMOVAL NOTICE: Cap the open fitting immediately to keep moisture out of system. INSTALLATION HINT: If receiver was replaced, add com- pressor oil to the compressor. Add 10 cc (2.9 fl.oz.) Compressor oil: ND–OIL 8 or equivalent N08745 RECEIVER INSTALLATION Installation is in the reverse order of removal.
