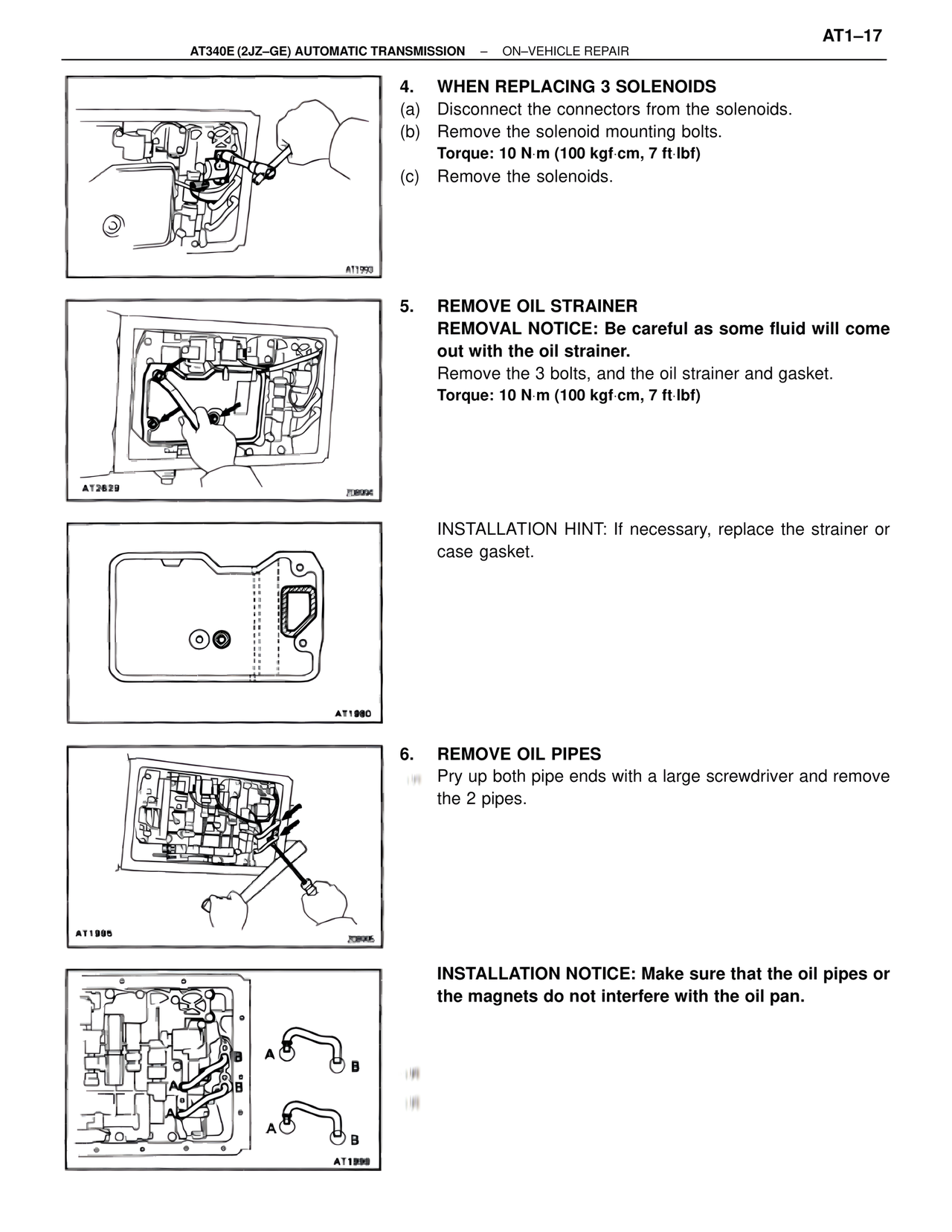

AT1–17
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR
4. WHEN REPLACING 3 SOLENOIDS
(a) Disconnect the connectors from the solenoids.
(b) Remove the solenoid mounting bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
(c) Remove the solenoids.
AT1993
5. REMOVE OIL STRAINER
REMOVAL NOTICE: Be careful as some fluid will come out with the oil strainer.
Remove the 3 bolts, and the oil strainer and gasket.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
AT2629
Z08095
INSTALLATION HINT: If necessary, replace the strainer or case gasket.
AT1980
6. REMOVE OIL PIPES
Pry up both pipe ends with a large screwdriver and remove the 2 pipes.
AT1995
Z08005
INSTALLATION NOTICE: Make sure that the oil pipes or the magnets do not interfere with the oil pan.
A
B
A
B
B
B
AT1999
