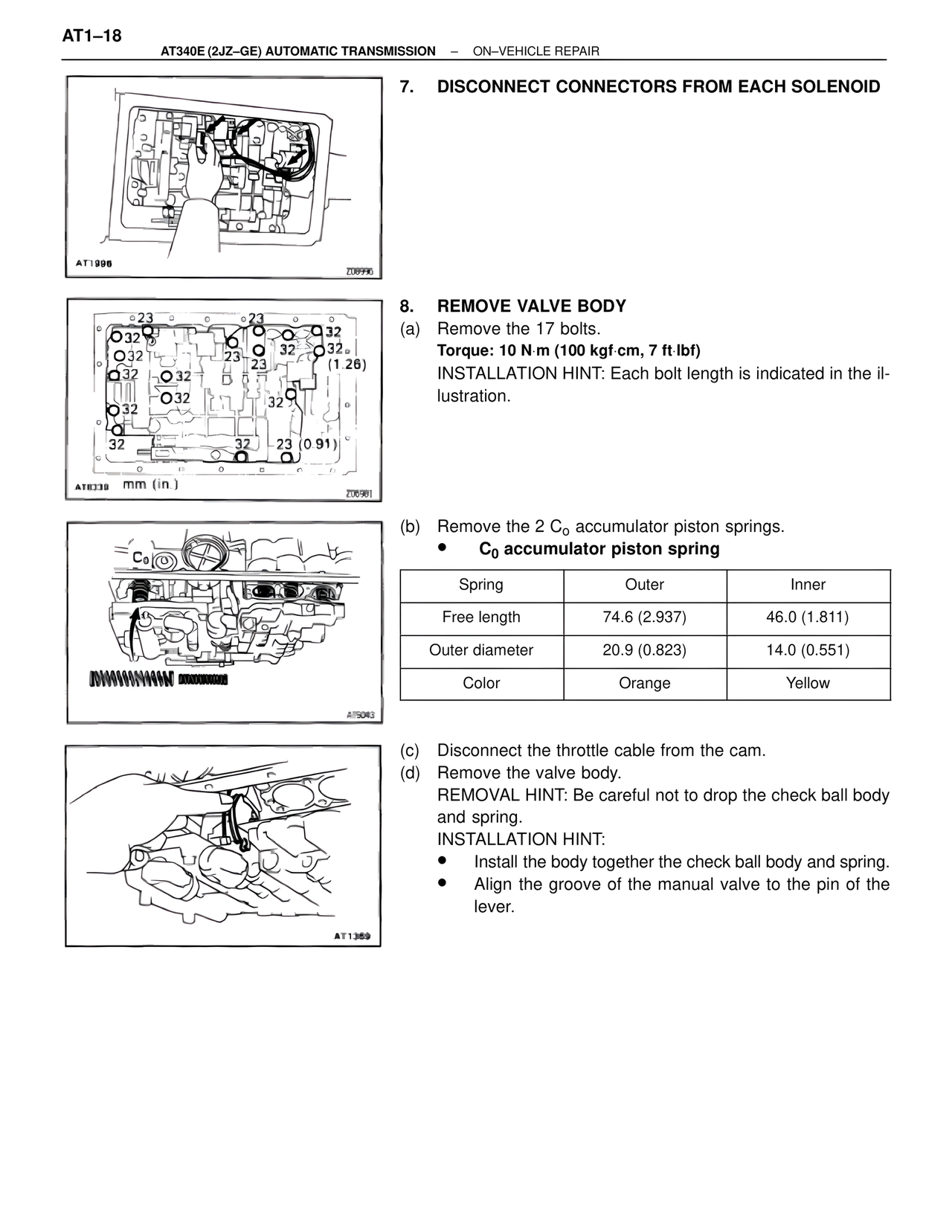

AT1–18 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR 7. DISCONNECT CONNECTORS FROM EACH SOLENOID AT1998 Z06996 8. REMOVE VALVE BODY (a) Remove the 17 bolts. Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) INSTALLATION HINT: Each bolt length is indicated in the illustration. AT8339 mm (in.) 23 23 23 32 32 32 32 23 32 32 32 (1.26) 32 32 32 32 32 32 32 32 23 (0.91) Z06981 (b) Remove the 2 C0 accumulator piston springs. • C0 accumulator piston spring Spring | Outer | Inner Free length | 74.6 (2.937) | 46.0 (1.811) Outer diameter | 20.9 (0.823) | 14.0 (0.551) Color | Orange | Yellow AT5043 (c) Disconnect the throttle cable from the cam. (d) Remove the valve body. REMOVAL HINT: Be careful not to drop the check ball body and spring. INSTALLATION HINT: • Install the body together the check ball body and spring. • Align the groove of the manual valve to the pin of the lever. AT1369
