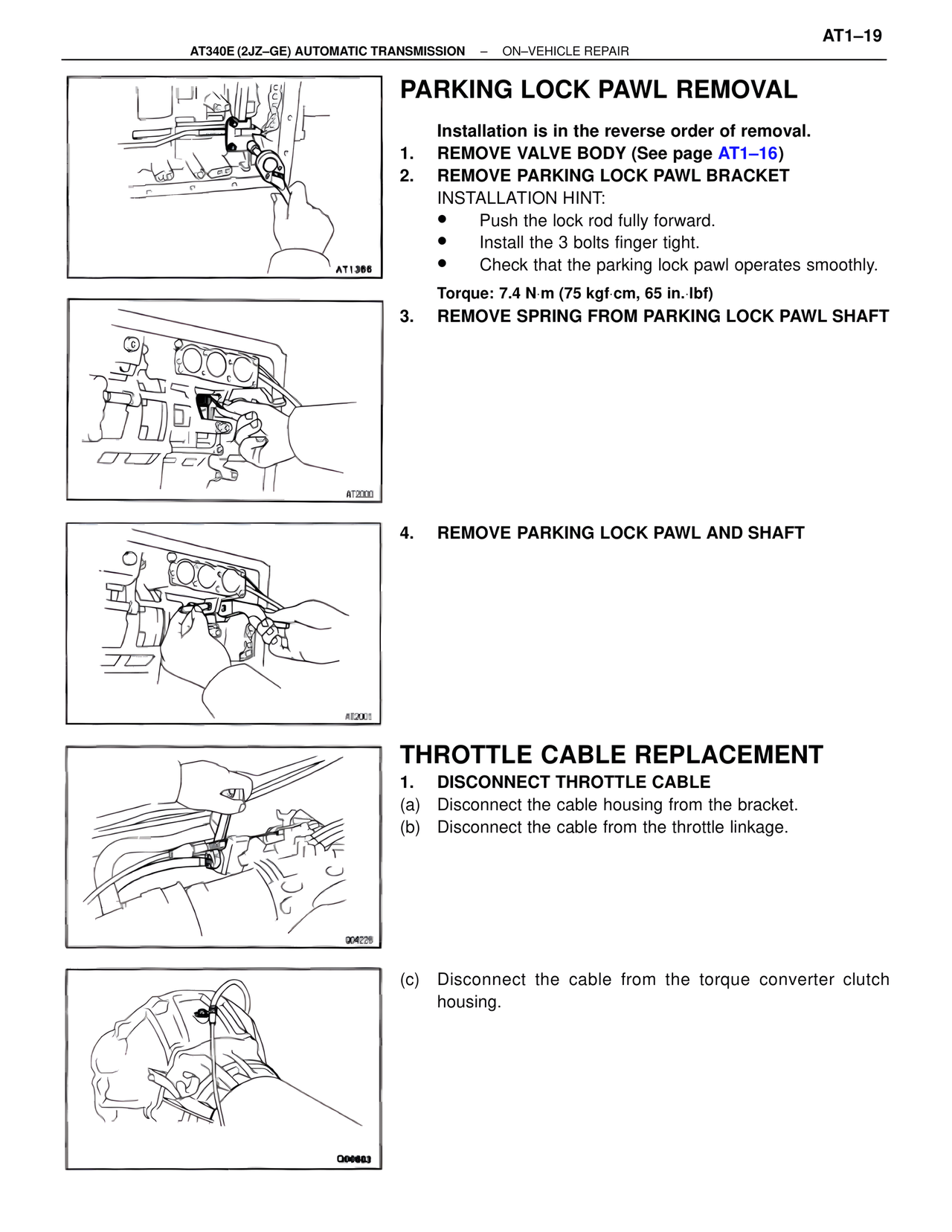

AT1–19 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR PARKING LOCK PAWL REMOVAL Installation is in the reverse order of removal. 1. REMOVE VALVE BODY (See page AT1–16) 2. REMOVE PARKING LOCK PAWL BRACKET INSTALLATION HINT: • Push the lock rod fully forward. • Install the 3 bolts finger tight. • Check that the parking lock pawl operates smoothly. Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf) 3. REMOVE SPRING FROM PARKING LOCK PAWL SHAFT 4. REMOVE PARKING LOCK PAWL AND SHAFT THROTTLE CABLE REPLACEMENT 1. DISCONNECT THROTTLE CABLE (a) Disconnect the cable housing from the bracket. (b) Disconnect the cable from the throttle linkage. (c) Disconnect the cable from the torque converter clutch housing. AT1388 AT2000 AT2001 Q04226 Q00463
