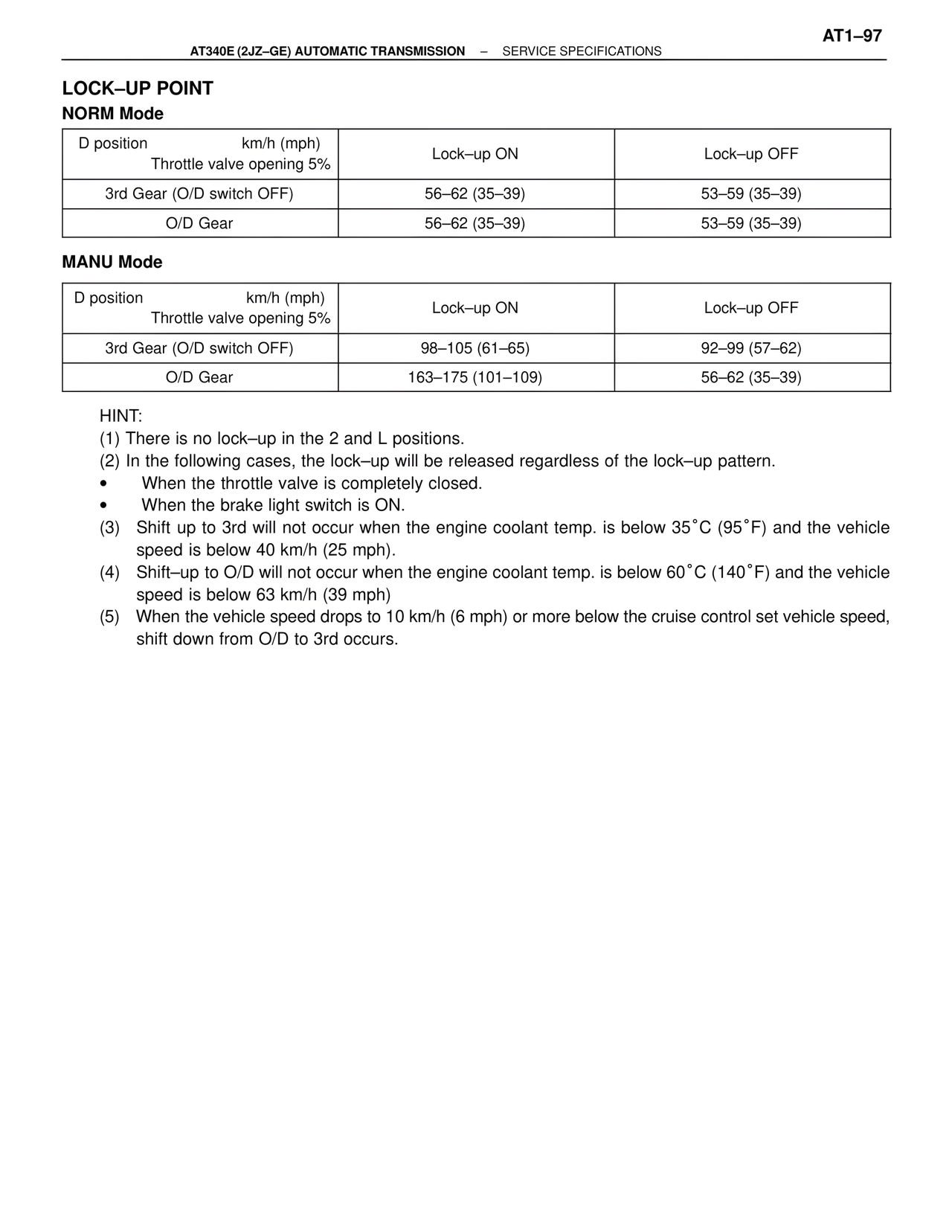

AT1–97 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS LOCK–UP POINT NORM Mode D position km/h (mph) Throttle valve opening 5% Lock–up ON Lock–up OFF 3rd Gear (O/D switch OFF) 56–62 (35–39) 53–59 (35–39) O/D Gear 56–62 (35–39) 53–59 (35–39) MANU Mode D position km/h (mph) Throttle valve opening 5% Lock–up ON Lock–up OFF 3rd Gear (O/D switch OFF) 98–105 (61–65) 92–99 (57–62) O/D Gear 163–175 (101–109) 56–62 (35–39) HINT: (1) There is no lock–up in the 2 and L positions. (2) In the following cases, the lock–up will be released regardless of the lock–up pattern. • When the throttle valve is completely closed. • When the brake light switch is ON. (3) Shift up to 3rd will not occur when the engine coolant temp. is below 35˚C (95˚F) and the vehicle speed is below 40 km/h (25 mph). (4) Shift–up to O/D will not occur when the engine coolant temp. is below 60˚C (140˚F) and the vehicle speed is below 63 km/h (39 mph) (5) When the vehicle speed drops to 10 km/h (6 mph) or more below the cruise control set vehicle speed, shift down from O/D to 3rd occurs.
