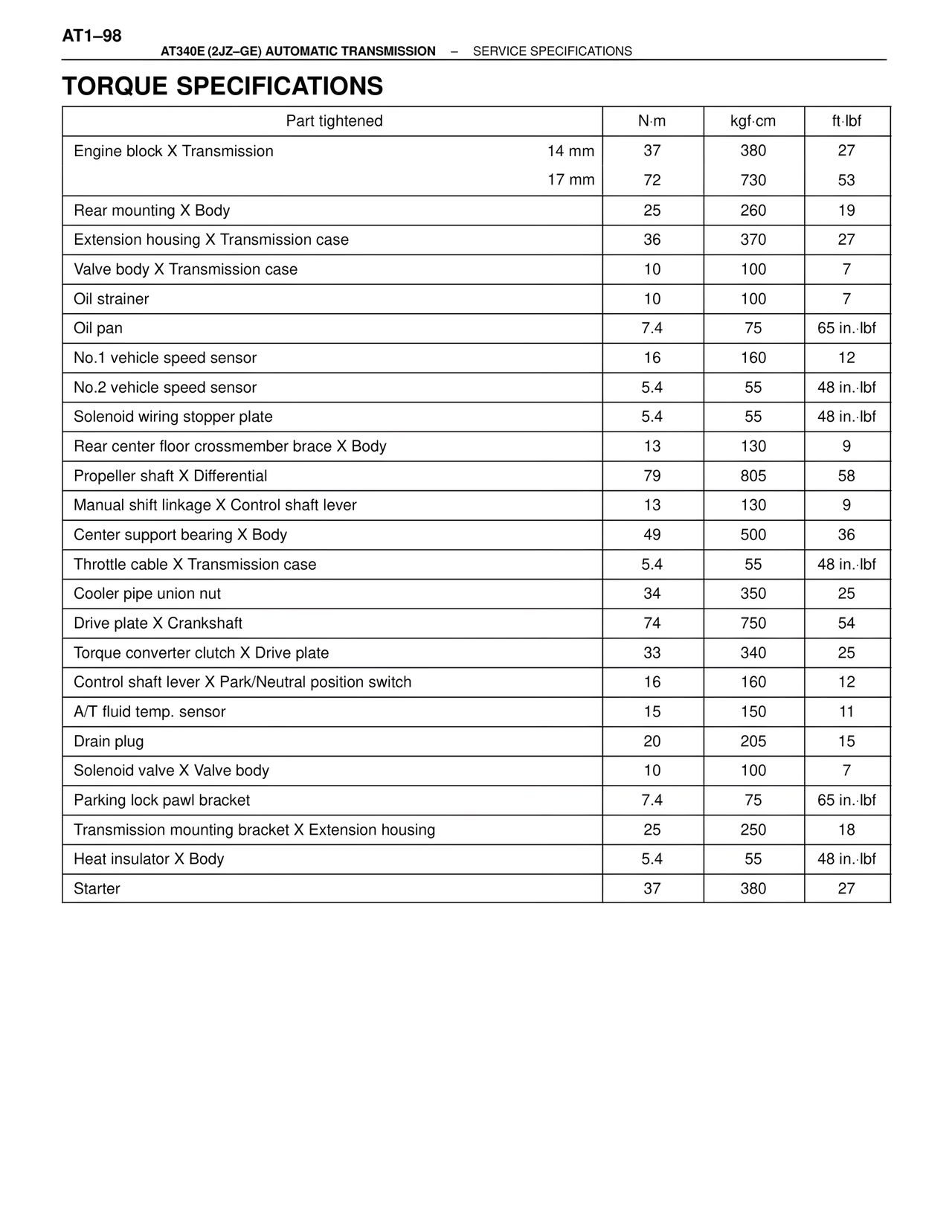

AT1–98 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf Engine block X Transmission 14 mm 37 380 27 17 mm 72 730 53 Rear mounting X Body 25 260 19 Extension housing X Transmission case 36 370 27 Valve body X Transmission case 10 100 7 Oil strainer 10 100 7 Oil pan 7.4 75 65 in.·lbf No.1 vehicle speed sensor 16 160 12 No.2 vehicle speed sensor 5.4 55 48 in.·lbf Solenoid wiring stopper plate 5.4 55 48 in.·lbf Rear center floor crossmember brace X Body 13 130 9 Propeller shaft X Differential 79 805 58 Manual shift linkage X Control shaft lever 13 130 9 Center support bearing X Body 49 500 36 Throttle cable X Transmission case 5.4 55 48 in.·lbf Cooler pipe union nut 34 350 25 Drive plate X Crankshaft 74 750 54 Torque converter clutch X Drive plate 33 340 25 Control shaft lever X Park/Neutral position switch 16 160 12 A/T fluid temp. sensor 15 150 11 Drain plug 20 205 15 Solenoid valve X Valve body 10 100 7 Parking lock pawl bracket 7.4 75 65 in.·lbf Transmission mounting bracket X Extension housing 25 250 18 Heat insulator X Body 5.4 55 48 in.·lbf Starter 37 380 27
