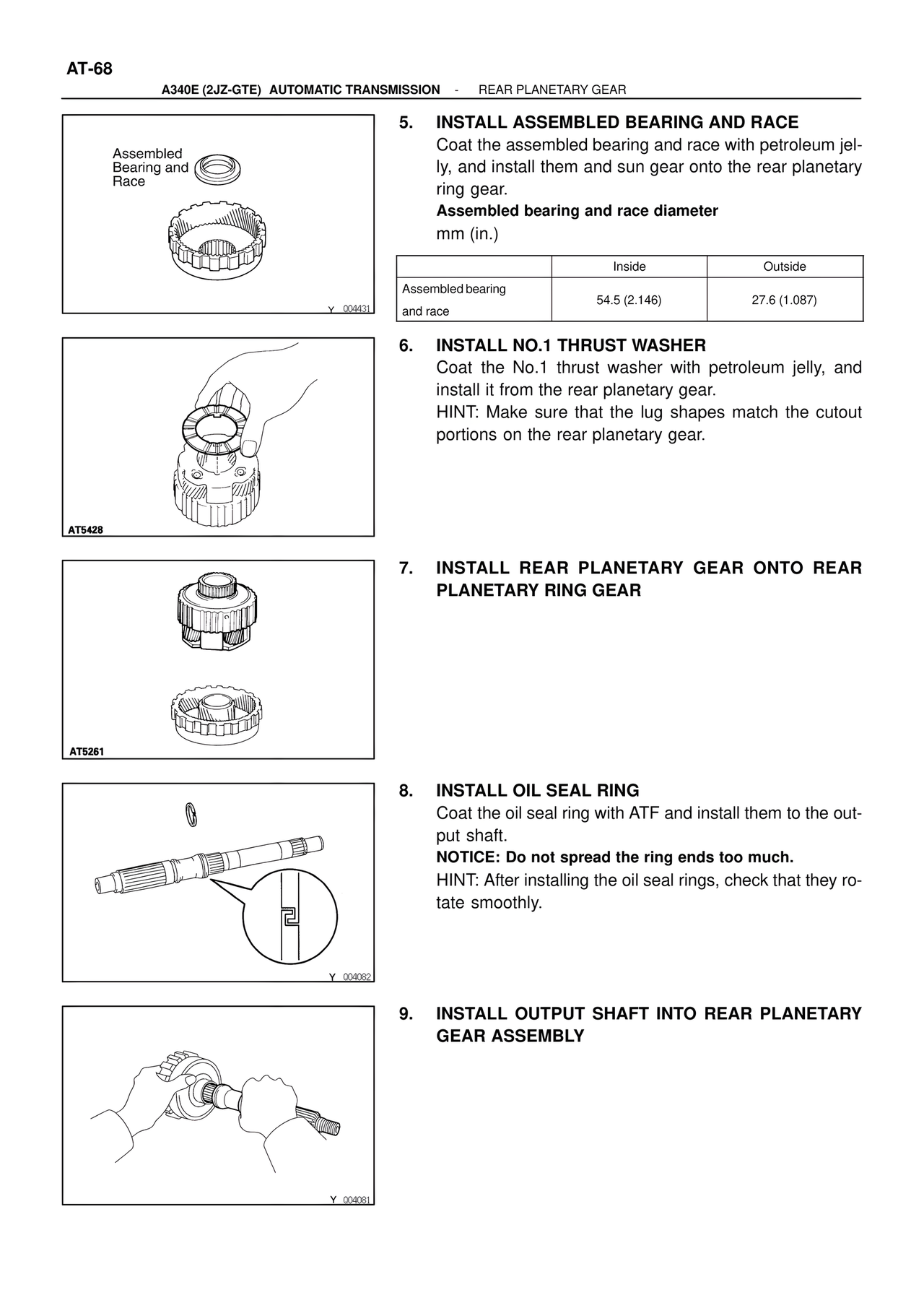

AT-68 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR Assembled Bearing and Race Y_004431 5. INSTALL ASSEMBLED BEARING AND RACE Coat the assembled bearing and race with petroleum jelly, and install them and sun gear onto the rear planetary ring gear. Assembled bearing and race diameter mm (in.) Inside Outside Assembled bearing and race 54.5 (2.146) 27.6 (1.087) AT5428 6. INSTALL NO.1 THRUST WASHER Coat the No.1 thrust washer with petroleum jelly, and install it from the rear planetary gear. HINT: Make sure that the lug shapes match the cutout portions on the rear planetary gear. AT5261 7. INSTALL REAR PLANETARY GEAR ONTO REAR PLANETARY RING GEAR Y_004082 8. INSTALL OIL SEAL RING Coat the oil seal ring with ATF and install them to the output shaft. NOTICE: Do not spread the ring ends too much. HINT: After installing the oil seal rings, check that they rotate smoothly. Y_004081 9. INSTALL OUTPUT SHAFT INTO REAR PLANETARY GEAR ASSEMBLY
