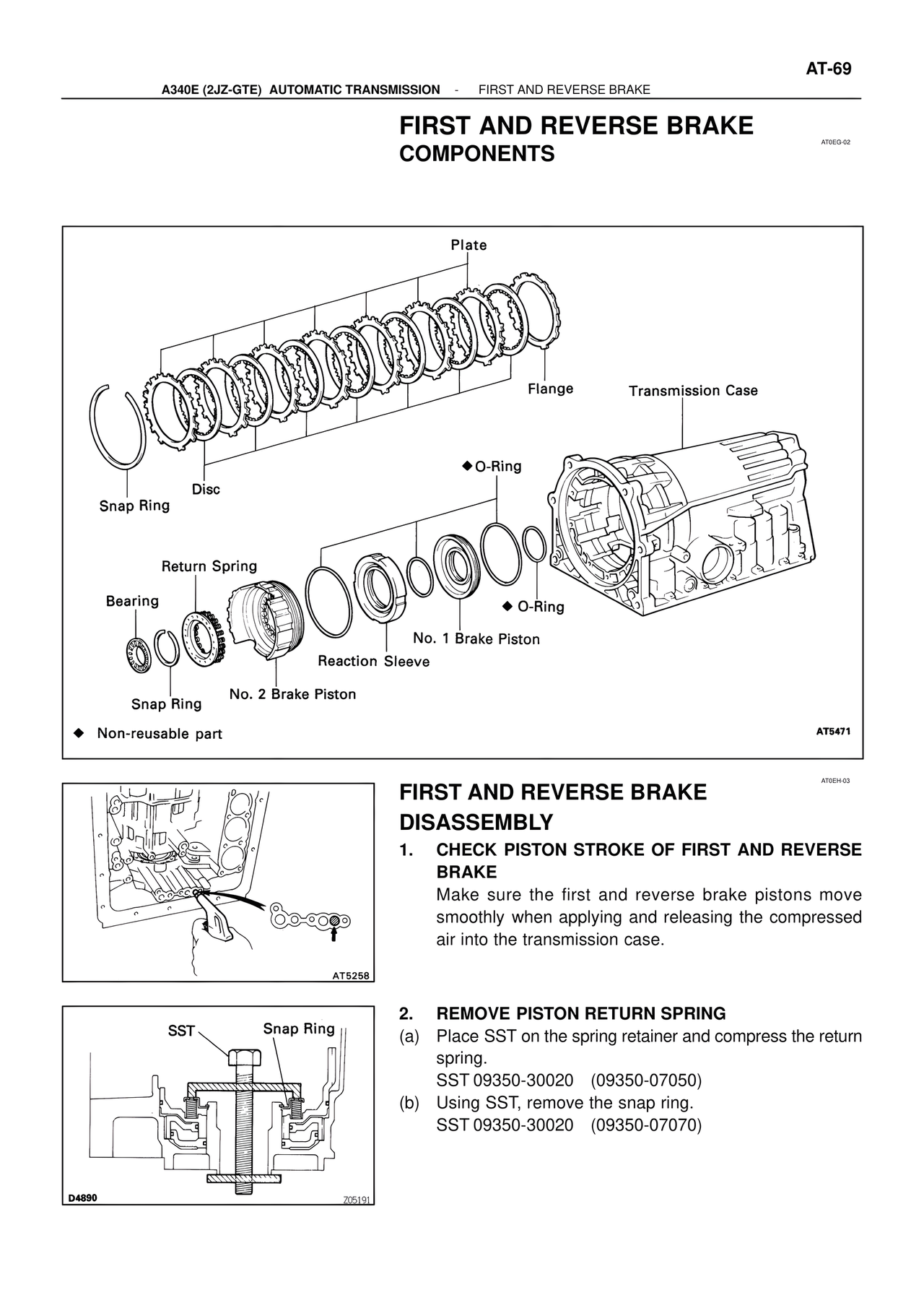

AT-69
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FIRST AND REVERSE BRAKE
FIRST AND REVERSE BRAKE COMPONENTS
AT0EG-02
Plate
Flange
Transmission Case
◆ O-Ring
Disc
Snap Ring
◆ O-Ring
Return Spring
No. 1 Brake Piston
Bearing
Reaction Sleeve
Snap Ring
No. 2 Brake Piston
◆ Non-reusable part
AT5471
AT0EH-03
FIRST AND REVERSE BRAKE DISASSEMBLY
1. CHECK PISTON STROKE OF FIRST AND REVERSE BRAKE
Make sure the first and reverse brake pistons move smoothly when applying and releasing the compressed air into the transmission case.
AT5258
2. REMOVE PISTON RETURN SPRING
(a) Place SST on the spring retainer and compress the return spring.
SST 09350-30020 (09350-07050)
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
SST Snap Ring
D4890
7/05191
