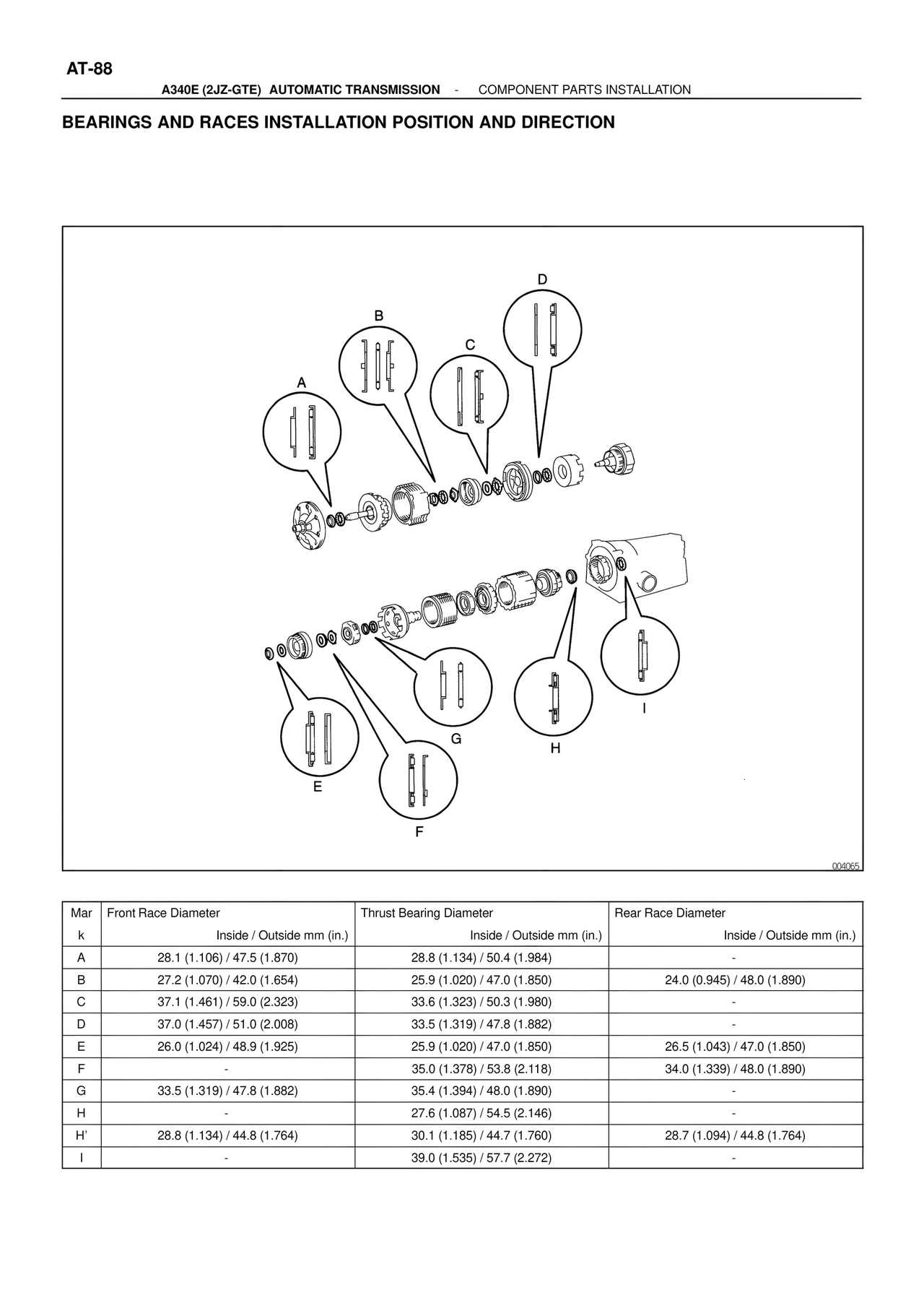

AT-88 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION BEARINGS AND RACES INSTALLATION POSITION AND DIRECTION A B C D E F G H I 004065 Mar | Front Race Diameter | Thrust Bearing Diameter | Rear Race Diameter k | Inside / Outside mm (in.) | Inside / Outside mm (in.) | Inside / Outside mm (in.) A | 28.1 (1.106) / 47.5 (1.870) | 28.8 (1.134) / 50.4 (1.984) | - B | 27.2 (1.070) / 42.0 (1.654) | 25.9 (1.020) / 47.0 (1.850) | 24.0 (0.945) / 48.0 (1.890) C | 37.1 (1.461) / 59.0 (2.323) | 33.6 (1.323) / 50.3 (1.980) | - D | 37.0 (1.457) / 51.0 (2.008) | 33.5 (1.319) / 47.8 (1.882) | - E | 26.0 (1.024) / 48.9 (1.925) | 25.9 (1.020) / 47.0 (1.850) | 26.5 (1.043) / 47.0 (1.850) F | - | 35.0 (1.378) / 53.8 (2.118) | 34.0 (1.339) / 48.0 (1.890) G | 33.5 (1.319) / 47.8 (1.882) | 35.4 (1.394) / 48.0 (1.890) | - H | - | 27.6 (1.087) / 54.5 (2.146) | - H' | 28.8 (1.134) / 44.8 (1.764) | 30.1 (1.185) / 44.7 (1.760) | 28.7 (1.094) / 44.8 (1.764) I | - | 39.0 (1.535) / 57.7 (2.272) | -
