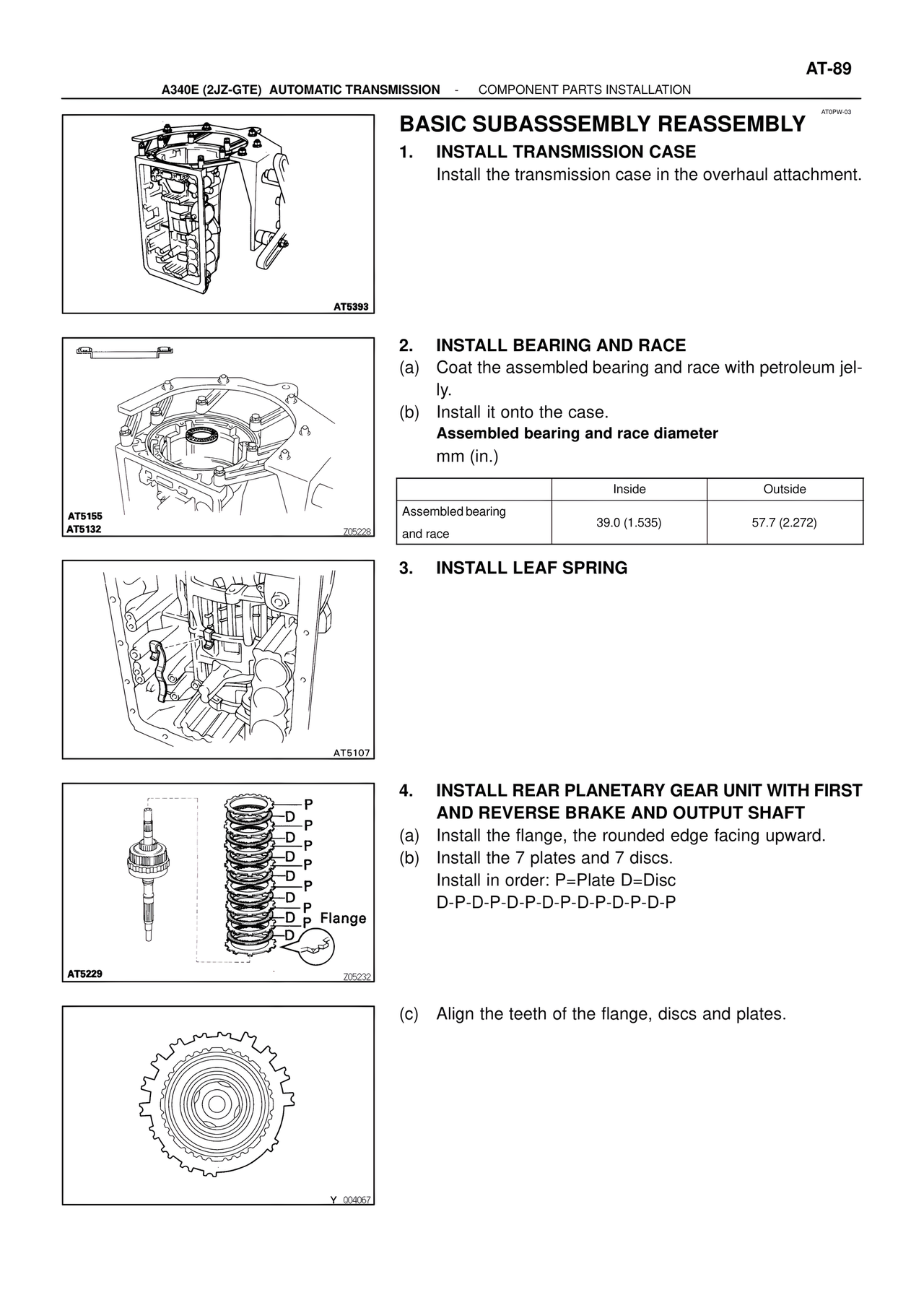

AT-89
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
AT0PW-03
BASIC SUBASSSEMBLY REASSEMBLY
1. INSTALL TRANSMISSION CASE
Install the transmission case in the overhaul attachment.
AT5393
2. INSTALL BEARING AND RACE
(a) Coat the assembled bearing and race with petroleum jelly.
(b) Install it onto the case.
Assembled bearing and race diameter
mm (in.)
Inside Outside
Assembled bearing
and race 39.0 (1.535) 57.7 (2.272)
AT5155
AT5132
705228
3. INSTALL LEAF SPRING
AT5107
4. INSTALL REAR PLANETARY GEAR UNIT WITH FIRST
AND REVERSE BRAKE AND OUTPUT SHAFT
(a) Install the flange, the rounded edge facing upward.
(b) Install the 7 plates and 7 discs.
Install in order: P=Plate D=Disc
D-P-D-P-D-P-D-P-D-P-D-P-D-P
Flange
P
D
P
D
P
D
P
D
P
D
P
D
P
D
AT5229
705232
(c) Align the teeth of the flange, discs and plates.
Y 004067
