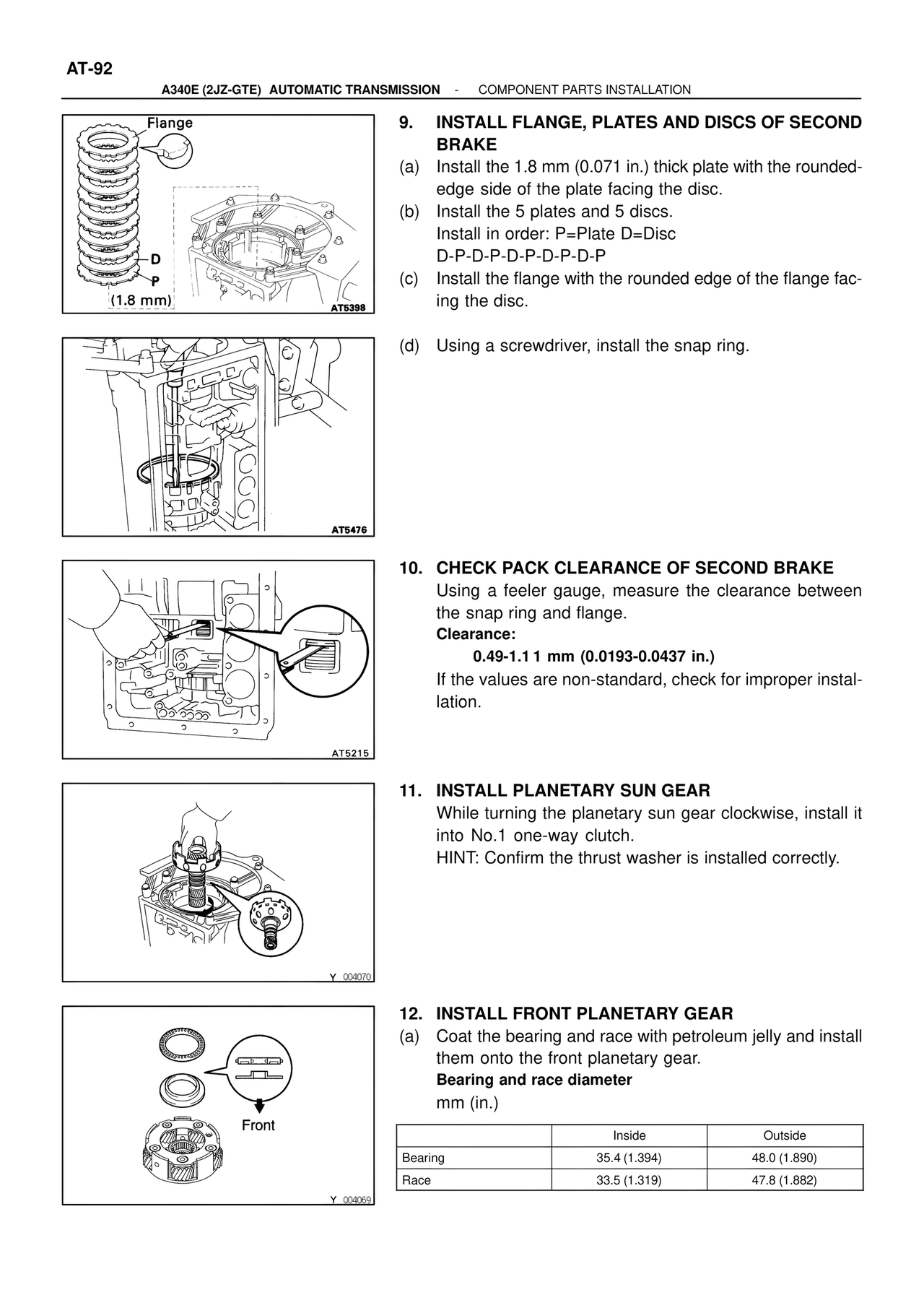

AT-92 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION Flange D P (1.8 mm) AT5398 9. INSTALL FLANGE, PLATES AND DISCS OF SECOND BRAKE (a) Install the 1.8 mm (0.071 in.) thick plate with the rounded-edge side of the plate facing the disc. (b) Install the 5 plates and 5 discs. Install in order: P=Plate D=Disc D-P-D-P-D-P-D-P-D-P (c) Install the flange with the rounded edge of the flange facing the disc. AT5476 (d) Using a screwdriver, install the snap ring. AT5215 10. CHECK PACK CLEARANCE OF SECOND BRAKE Using a feeler gauge, measure the clearance between the snap ring and flange. Clearance: 0.49-1.11 mm (0.0193-0.0437 in.) If the values are non-standard, check for improper installation. Y 004070 11. INSTALL PLANETARY SUN GEAR While turning the planetary sun gear clockwise, install it into No.1 one-way clutch. HINT: Confirm the thrust washer is installed correctly. Front Y 004069 12. INSTALL FRONT PLANETARY GEAR (a) Coat the bearing and race with petroleum jelly and install them onto the front planetary gear. Bearing and race diameter mm (in.) Inside Outside Bearing 35.4 (1.394) 48.0 (1.890) Race 33.5 (1.319) 47.8 (1.882)
