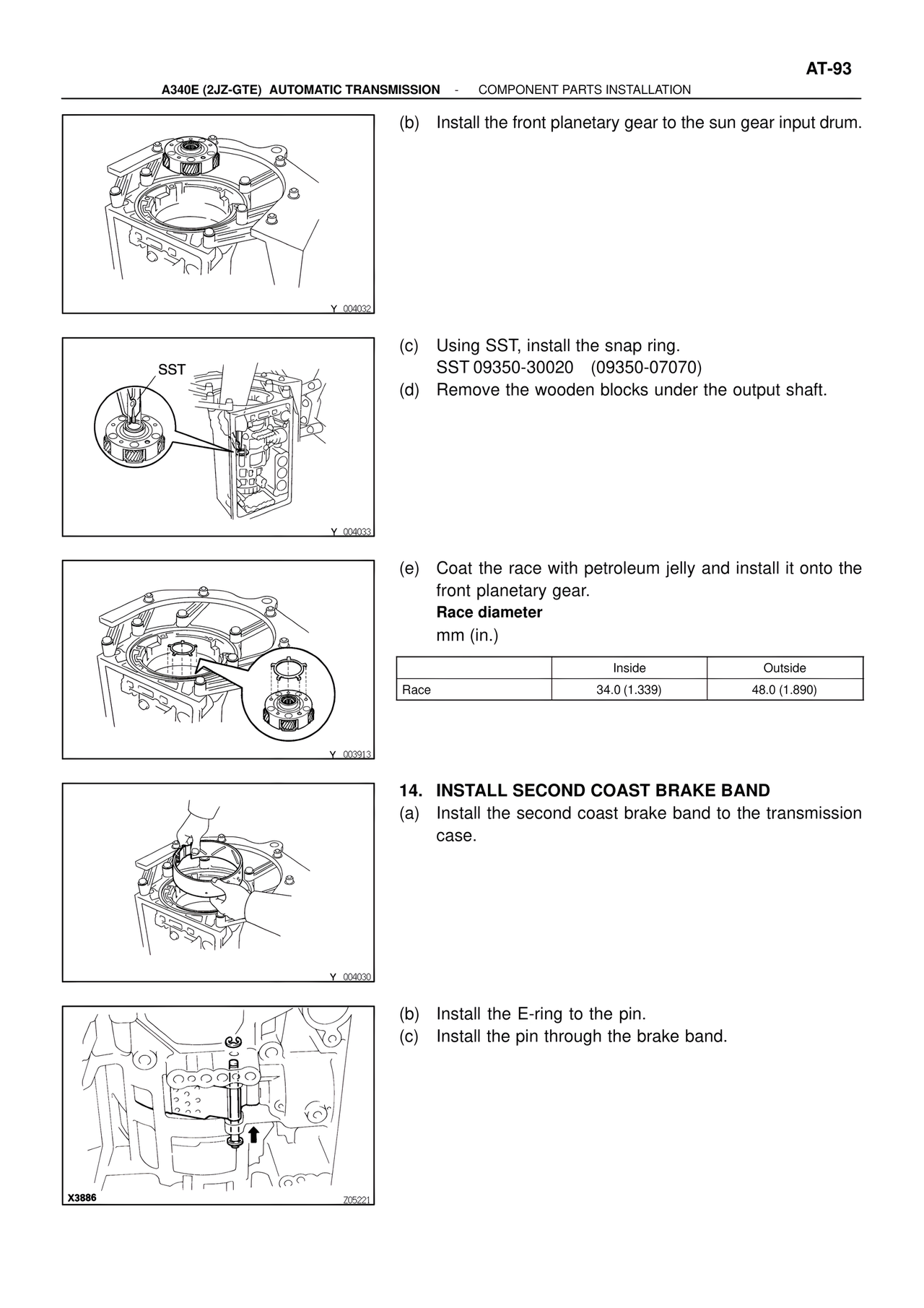

AT-93 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION (b) Install the front planetary gear to the sun gear input drum. SST (c) Using SST, install the snap ring. SST 09350-30020 (09350-07070) (d) Remove the wooden blocks under the output shaft. (e) Coat the race with petroleum jelly and install it onto the front planetary gear. Race diameter mm (in.) Inside Outside Race 34.0 (1.339) 48.0 (1.890) 14. INSTALL SECOND COAST BRAKE BAND (a) Install the second coast brake band to the transmission case. (b) Install the E-ring to the pin. (c) Install the pin through the brake band. X3886
